991306 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower (SN: 030000 & Above) Transaxles Parts Diagram

Pro-Turn 48" Zero-Turn Mower

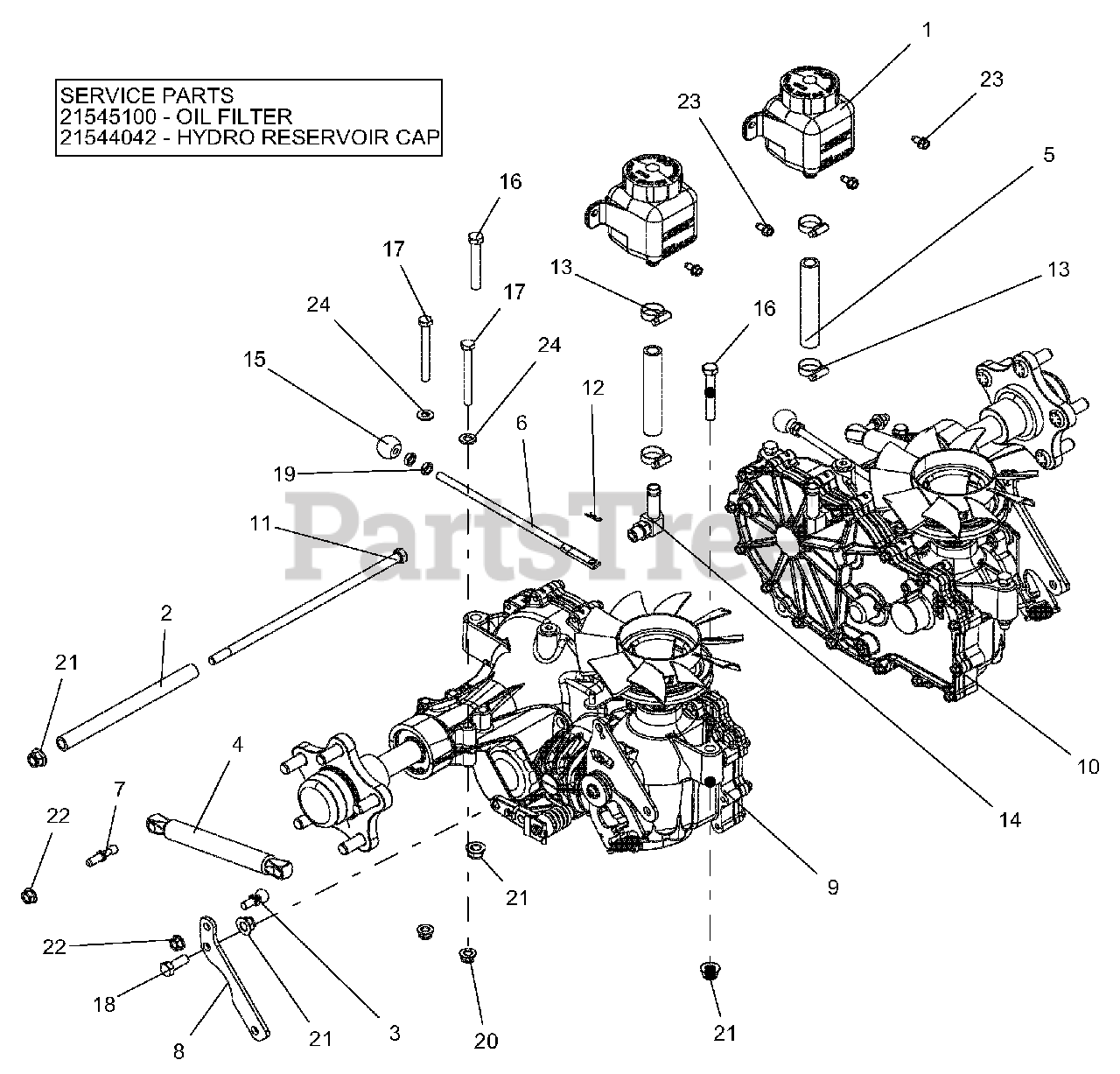

Transaxles Parts Diagram

  • Title

1

Gravely 02970200

TANK, EXPANSION ZT2800

$34.99

$

In Stock, only 2 left!

0

2

Gravely 03367200

SPACER, .406 ID X .630 OD X 7.724

$14.99

$

In Stock, only 1 left!

0

3

Gravely 03652200

STUD-BALL

$3.49

$

In Stock, only 3 left!

0

4

Gravely 03769800

DAMPER,
(Superseded to 09689700)

$39.99

$

In Stock, Qty 20+

0

5

Gravely 03832300

HOSE, PT100 HYDRO OVERFLOW

$5.99

$

In Stock, only 2 left!

0

6

Gravely 03911900

LEVER, PT100 DUMP VALVE

$102.99

$

Usually ships in 4-12 days

0

7

Gravely 04097100

STUD, BALL THREADED

$2.49

$

In Stock, Qty 15

0

8

Gravely 04244751

TRANSMISSION DAMPER MTG PLATE - BLK

$

$

Not available

9

Gravely 04563900

TRANSAXLE, 3200 SERIES - RH
(Superseded to 04828000)

$1701.99

$

Usually ships in 4-12 days

0

10

Gravely 04566500

TRANSAXLE, 3200 SERIES - LH
(Superseded to 04827900)

$1701.99

$

Usually ships in 4-12 days

0

11

Gravely 05901315

BLT, HEX .38-16X11.00 GR5 CYWZ
(Superseded to 05901921)

$7.99

$

In Stock, only 1 left!

0

12

Gravely 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 15

0

13

Gravely 06923500

CLAMP, .88 DIA HOSE

$1.99

$

In Stock, Qty 6

0

14

Gravely 07001528

FITTING, HYD (90 DEG)

Note: (90 DEG)

$

$

Not available

15

Gravely 07539800

KNOB, BALL -BLACK .312-18

$5.99

$

Usually ships in 4-12 days

0

16

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

17

Gravely 05962500

BLT-HEX .31-18X3.00 GR5 YWZC
(Superseded to 05901933)

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06536100

NUT, JAM .312-18 YWZC
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06543100

NUT, LK-TOP-FLG .312-18 YWZ
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZC
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
