991306 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower (SN: 030000 & Above) Transaxle Drive Parts Diagram

Pro-Turn 48" Zero-Turn Mower

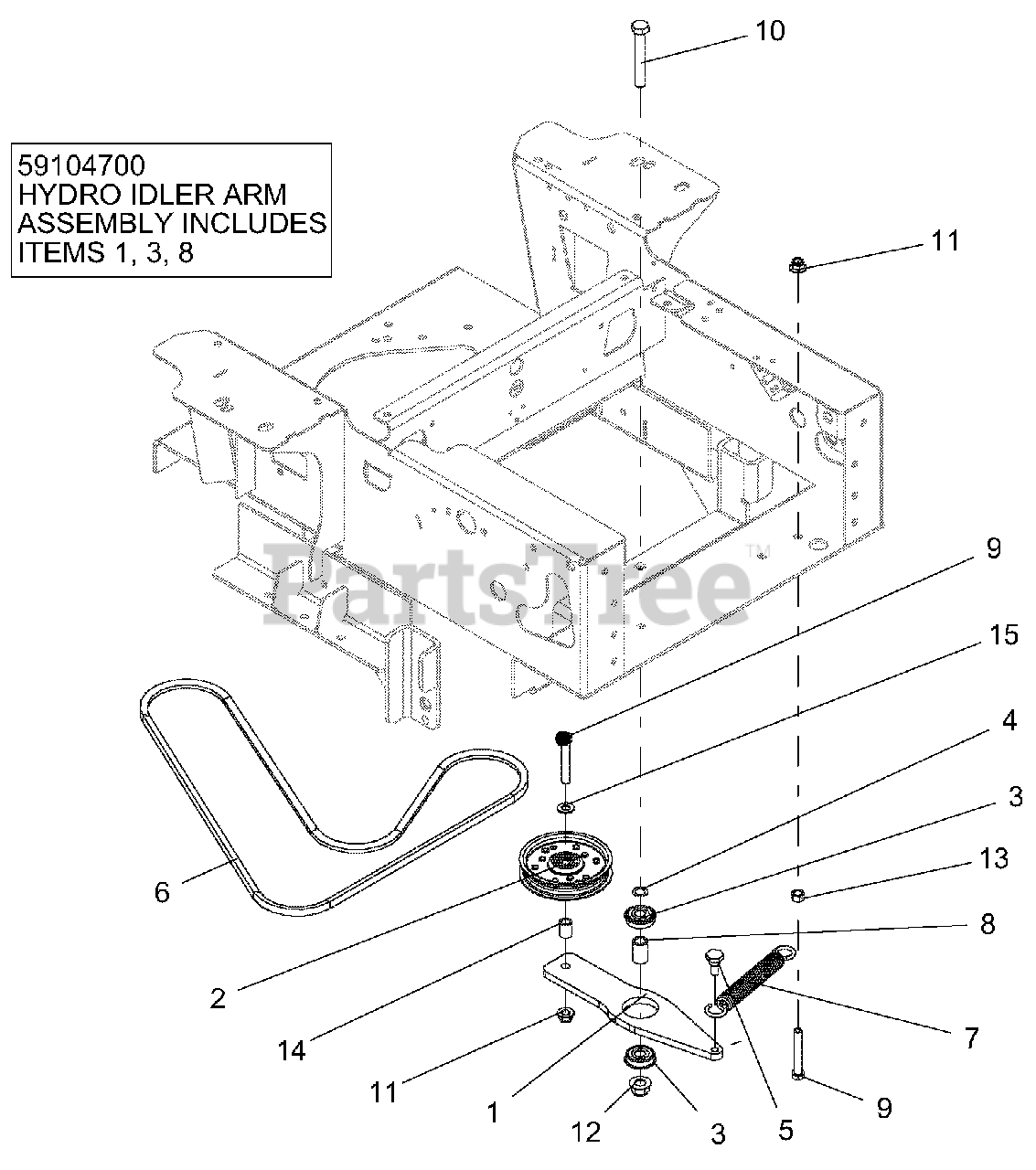

Transaxle Drive Parts Diagram

  • Title

1

Gravely 09357451

WLDMT, HYDRO DRIVE IDLER ARM-BLACK
(Superseded to 05094651)

$56.99

$

In Stock, only 1 left!

0

2

Gravely 07300101

ASM, IDLER 4"

$62.99

$

In Stock, Qty 20+

0

3

Gravely 05480000

BRG, BALL .501 X 1.38 X .438 SEALED

$13.99

$

In Stock, Qty 20+

0

4

Gravely 06400015

WASHER-FLAT-STL, .500 X .750 X .020

$1.49

$

In Stock, Qty 20+

0

5

Gravely 07000034

BLT, SHLDR EP .38-16X.30 HEX YZ

$3.99

$

In Stock, only 1 left!

0

6

Gravely 07226400

BELT, V-A-COGGED

$52.99

$

In Stock, Qty 9

0

7

Gravely 08300507

SPRG, EXTENSION
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

8

Gravely 09357700

SPACER, .510 X .750 X 1.148

$4.99

$

In Stock, only 3 left!

0

9

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

10

Gravely 05960000

BLT-HEX .50-13X3.25 GR5 YWZC
(Superseded to 05901634)

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 05525700

BSHG-SLV .407X.625X.750

$7.49

$

In Stock, only 1 left!

0

15

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0
