991306 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower (SN: 030000 & Above) Tire Assembly Parts Diagram

Pro-Turn 48" Zero-Turn Mower

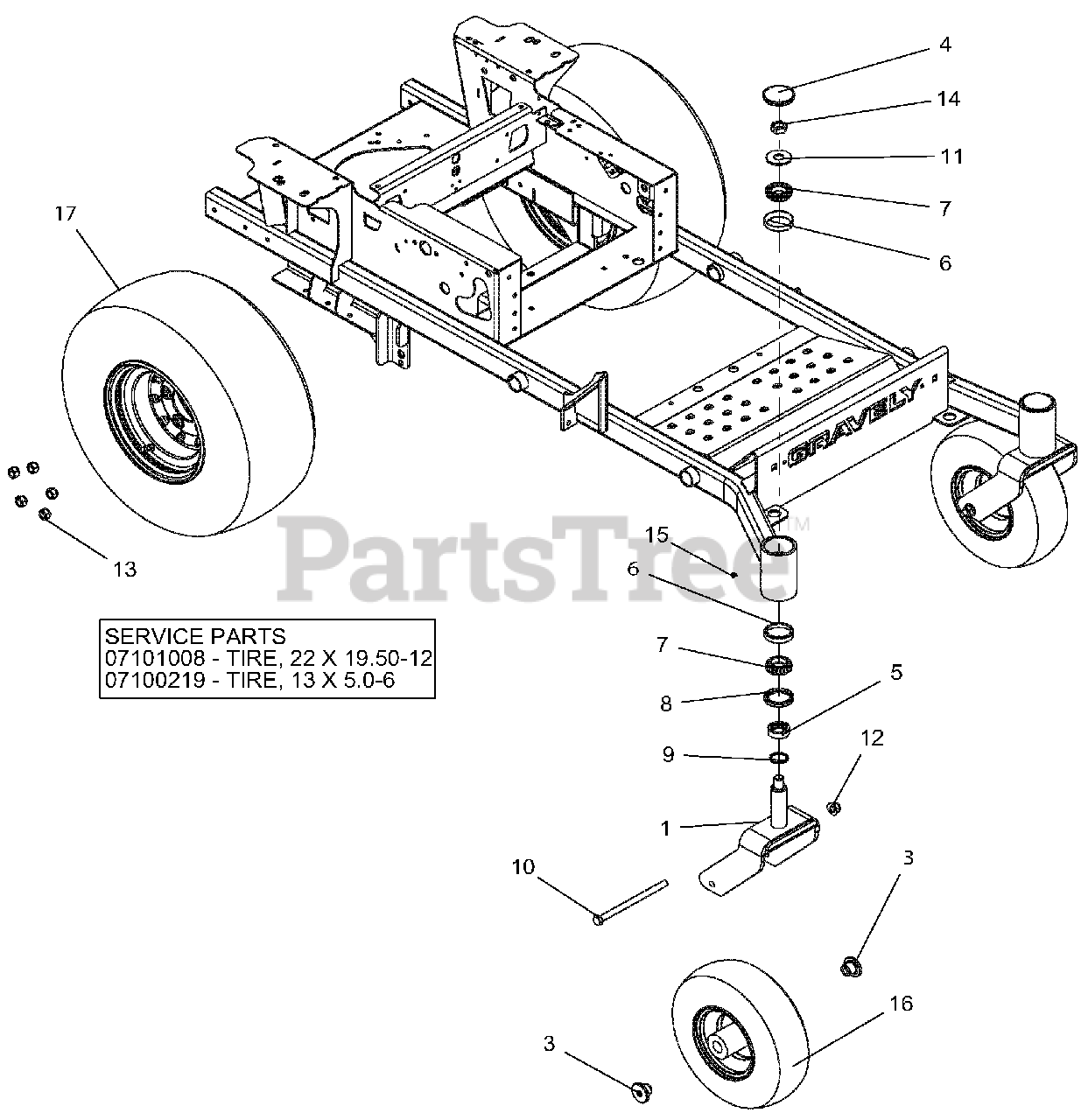

Tire Assembly Parts Diagram

  • Title

1

Gravely 04539353

WLDMT, CASTER FORK-RED

$150.99

$

Usually ships in 4-12 days

0

3

Gravely 00675300

SPACER, FRONT WHEEL

$7.99

$

In Stock, Qty 20+

0

4

Gravely 03925900

CAP, DUST

$11.99

$

In Stock, only 2 left!

0

5

Gravely 04718600

SPCR, FRONT CASTER FORK
(Superseded to 04861500)

$14.99

$

In Stock, Qty 6

0

6

Gravely 05404600

BRG, CUP 2.328 X .465

$13.99

$

In Stock, only 2 left!

0

7

Gravely 05404700

BRG, CONE 1.250 X .660

$20.99

$

In Stock, Qty 20+

0

8

Gravely 05600432

SEAL, OIL 1.75 X 2.332 X .312

$11.99

$

In Stock, Qty 13

0

9

Gravely 05600515

O-RING, .139 W X 1.234 ID

$2.49

$

In Stock, Qty 8

0

10

Gravely 05978200

BLT-HEX .50-13X7.50 GR5 YWZC
(Superseded to 05902023)

$7.99

$

In Stock, only 2 left!

0

11

Gravely 06439800

WSHR-FL-STL.812X2.00X.148YWZC
(Superseded to 06401201)

$3.99

$

In Stock, only 3 left!

0

12

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06517600

NUT, LUG .500-13
(Superseded to 06500926)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06536900

@NUT-LK-CTR-JAM .75-16 YWZC

$5.99

$

In Stock, only 3 left!

0

15

Gravely 07001723

PLUG, .250-28 X .185 HEX HEAD

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 07100835

TIRE/WHEEL, ASM, 13X5-6
(Superseded to 07101111)

$119.99

$

In Stock, Qty 20+

0

17

Gravely 07101032

TIRE/WHEEL, ASM 22X10-10
(Superseded to 07101115)

$

$

Not available
