991306 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower (SN: 030000 & Above) Deck Lift - Right Hand Parts Diagram

Pro-Turn 48" Zero-Turn Mower

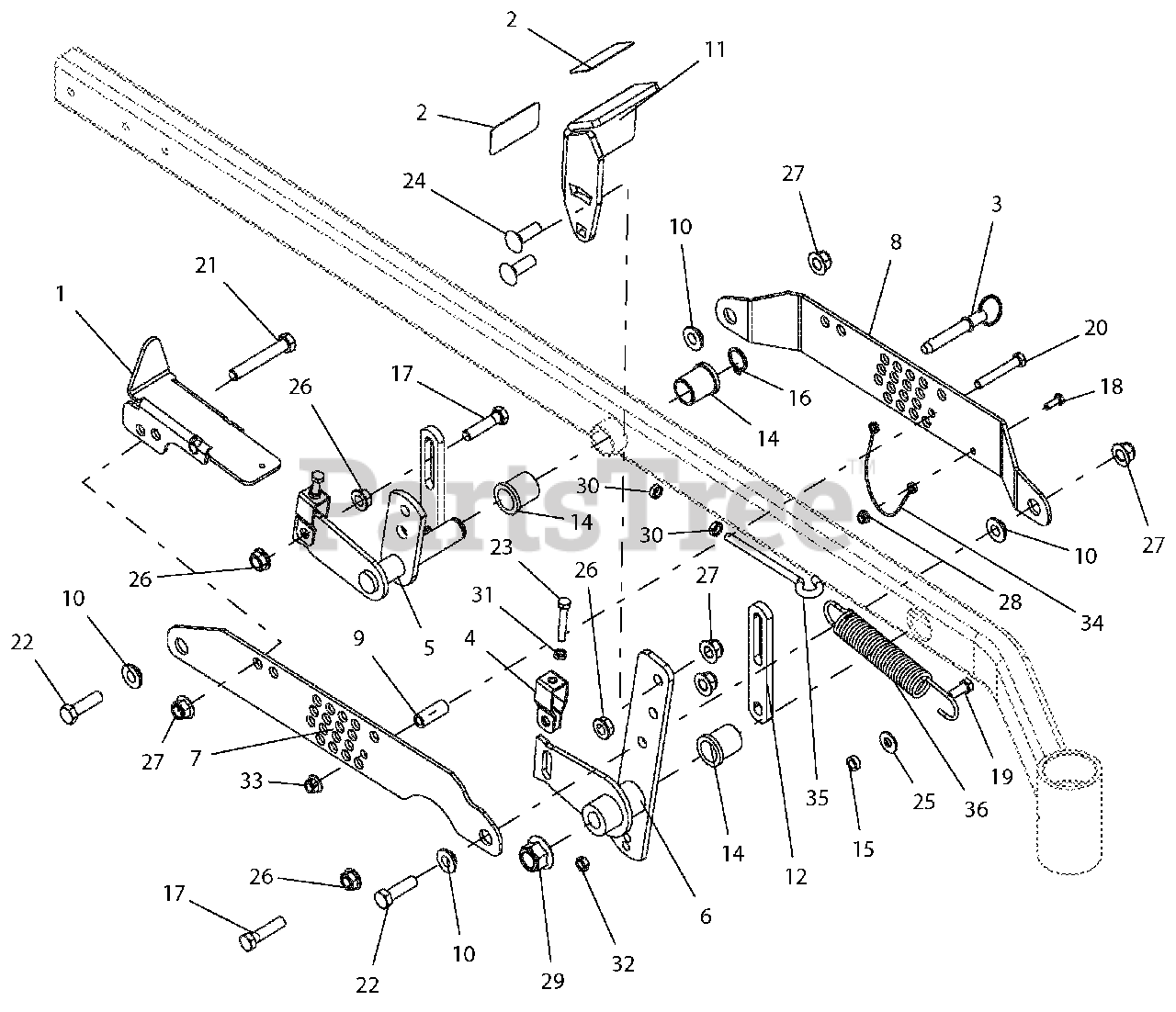

Deck Lift - Right Hand Parts Diagram

  • Title

1

Gravely 03864051

WLDMT, MECHANICAL LOCK-UP-BLACK

$23.99

$

Usually ships in 4-12 days

0

2

Gravely 00270100

GRIP, PEDAL 1.50 X 3.00

$3.49

$

In Stock, Qty 5

0

3

Gravely 03957100

PIN, .50 X 2.00 USABLE LG BALL
(Superseded to 04822400)

$9.49

$

In Stock, only 2 left!

0

4

Gravely 00442800

BRKT, DECK LEVELING

$9.49

$

In Stock, only 2 left!

0

5

Gravely 04517900

WLDMT, REAR RH DECK LIFT

$77.99

$

Usually ships in 4-12 days

0

6

Gravely 04691467

WLDMT, PT FRONT RH DECK LIFT ARM-BLACK

$77.99

$

Usually ships in 4-12 days

0

7

Gravely 03954651

BRKT, RH OUTBOARD LIFT/CUT HEIGHT-BLACK

$45.99

$

Usually ships in 4-12 days

0

8

Gravely 03954751

BRKT, RH INBOARD LIFT/CUT HEIGHT-BLACK

$53.99

$

Usually ships in 4-12 days

0

9

Gravely 03954800

SPACER, .375 X .625 X 1.54

$6.49

$

Usually ships in 4-12 days

0

10

Gravely 03989100

BSHG, FLANGE .515X.750X.31X1.12

$3.49

$

In Stock, Qty 20+

0

11

Gravely 04088651

PEDAL, ADJUSTABLE FOOT LIFT-BLACK

$56.99

$

Usually ships in 4-12 days

0

12

Gravely 04732400

LINK, DECK LIFT - LONG

$17.99

$

Usually ships in 4-12 days

0

14

Gravely 05500934

BSHG-FLG 1.00X1.25X1.5X1.5

$6.99

$

In Stock, Qty 20+

0

15

Gravely 05508900

BSHG, SLV .377X.624X.235

$9.49

$

In Stock, only 1 left!

0

16

Gravely 05707300

RG-RTNG-EXT 1.00X.078

$2.99

$

In Stock, Qty 9

0

17

Gravely 05900022

BLT, HEX M12-1.75X50 CLS8.8 YZ

$3.99

$

In Stock, only 1 left!

0

18

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

21

Gravely 05960000

BLT-HEX .50-13X3.25 GR5 YWZC
(Superseded to 05901634)

$3.99

$

Usually ships in 4-12 days

0

22

Gravely 05970600

BLT-HEX .50-13X1.75 GR5 YWZC
(Superseded to 05901939)

$3.99

$

In Stock, only 2 left!

0

23

Gravely 05980900

BLT-HEX .31-18X2.00 FTH GR5 YWZC
(Superseded to 05902003)

$2.99

$

In Stock, only 2 left!

0

24

Gravely 06223100

BLT-RDHDSQNK .50-13X1.50 G5 YWZC
(Superseded to 06200421)

$4.49

$

Usually ships in 4-12 days

0

25

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZC
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06500003

NUT, SPLK -FLG M12-1.75 YZ

$2.49

$

In Stock, only 1 left!

0

27

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

29

Gravely 06500717

NUT-LK-NYL-FLG .75-10 YWZC
(Superseded to 06500931)

$3.99

$

Usually ships in 4-12 days

0

30

Gravely 06535900

NUT, JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 06536100

NUT, JAM .312-18 YWZC
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 06900317

LANYARD, 12"

$3.49

$

In Stock, only 2 left!

0

35

Gravely 07001640

BOLT, EYE .38-16X6.00 .62 DIA

$16.99

$

Usually ships in 4-12 days

0

36

Gravely 08319000

SPRG, TENSION .162 X 1.250 X 8.250

$33.99

$

In Stock, Qty 6

0
