991305 (Pro-Turn 160) - Gravely Pro-Turn 60" Zero-Turn Mower (SN: 030000 & Above) Chute And Belt Covers - 60" Parts Diagram

Pro-Turn 60" Zero-Turn Mower

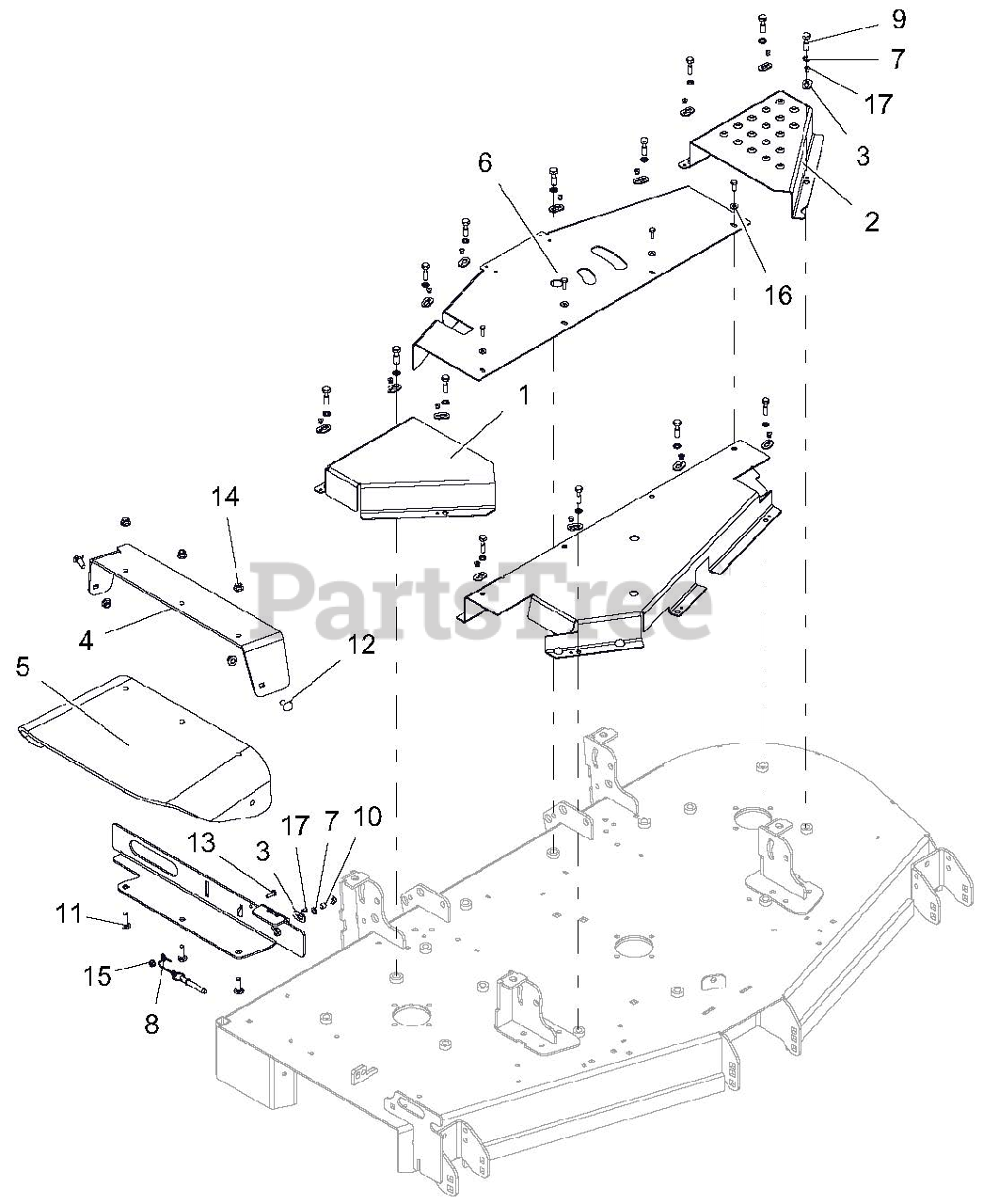

Chute And Belt Covers - 60" Parts Diagram

  • Title

1

04099953

GUARD, RH PT200 CE BELT

$

$

Not available

2

04100053

GUARD, LH PT200 CE BELT

$

$

Not available

3

Gravely 04183000

KEEPER, BOLT

$6.49

$

Usually ships in 4-12 days

0

4

Gravely 04551553

SUPPORT, CHUTE MOUNTING BRACKET-RED

$90.99

$

Usually ships in 4-12 days

0

5

Gravely 04551600

CHUTE, RUBBER DISCHARGE

$68.99

$

In Stock, Qty 15

0

6

Gravely 04739800

BRKT, REAR BELT GUARD CE-60

$

$

Not available

7

Gravely 06308700

LOCK, WSHR-EXT 0.391 X 0.628 X 0.036 YWZC

$1.99

$

Usually ships in 4-12 days

0

8

Gravely 06900321

CABLE, 6.0 LANYARD, NYLON

$5.99

$

Usually ships in 4-12 days

0

9

Gravely 07001625

BLT, HEX 0.38-16 X 1.25 GR5 CAPTIVE

$14.99

$

Usually ships in 4-12 days

0

10

Gravely 07001634

BLT-HEX .38-16X1.25 GR5 CAP .37

$

$

Not available

11

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5 YWZC
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

12

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5 YWZC
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

13

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06800028

RVT-POP .187x.250 (#64) YWZC
(Superseded to 06800140)

$0.99

$

In Stock, Qty 14

0
