991303 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Side Discharge (SN: 001000 - 019999) Mower Deck And Belt Covers - Side Discharge Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Side Discharge

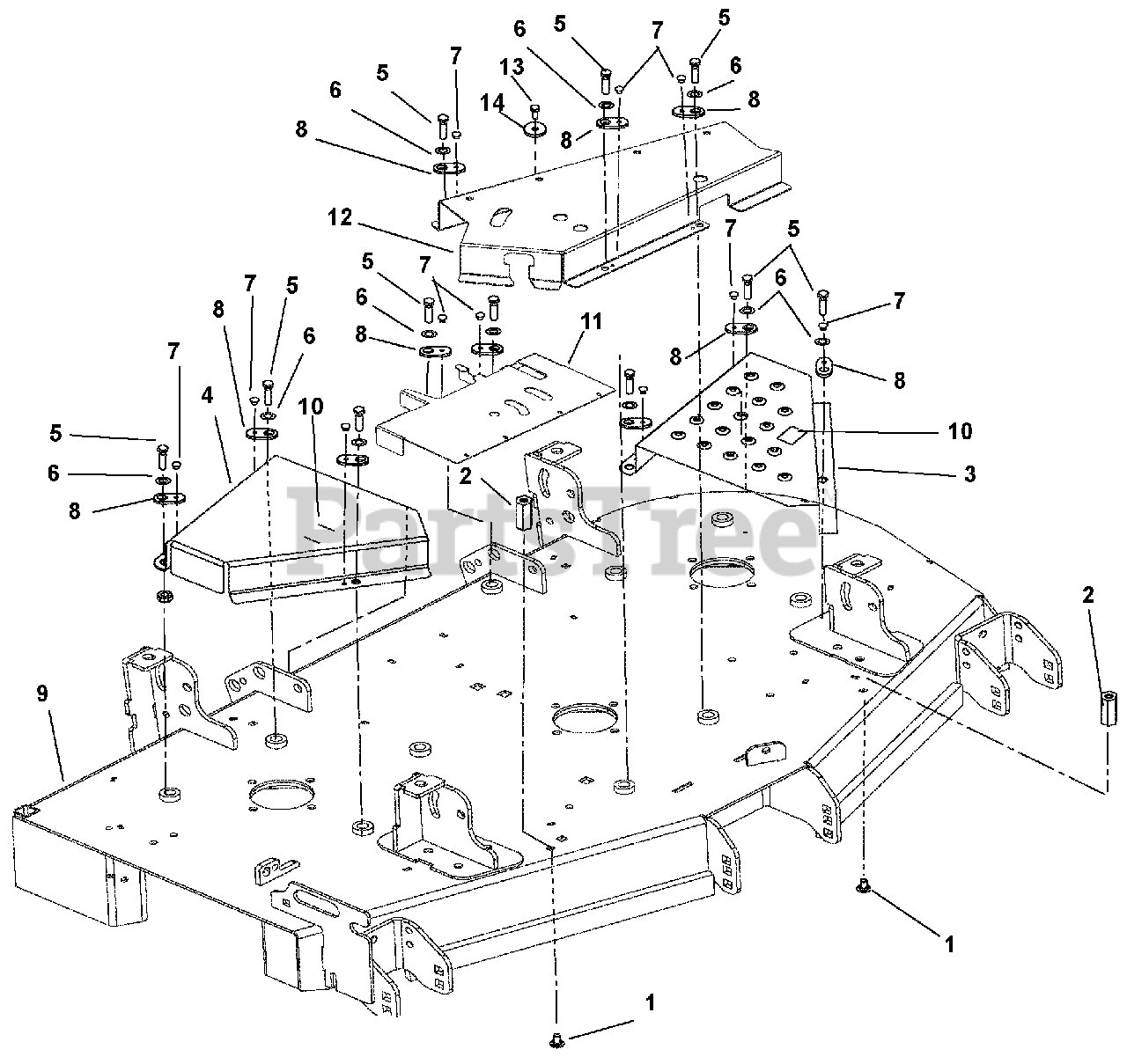

Mower Deck And Belt Covers - Side Discharge Parts Diagram

  • Title

1

Gravely 06200002

Bolt, Round Head Square Neck .31 - 18 x .75
(Superseded to 06200425)

$3.99

$

In Stock, only 3 left!

0

2

Gravely 07000027

Nut, Coupling .31 - 18 x 3.00

$22.99

$

In Stock, only 3 left!

0

3

Gravely 04100051

Cover, Left Hand Belt, CE

$

$

Not available

4

Gravely 04099951

Cover, Right Hand CE Belt

$

$

Not available

5

Gravely 07001625

Bolt, Hex .38-16 x 1.25

$14.99

$

Usually ships in 4-12 days

0

6

Gravely 06308700

Washer, Locking, EXT.391 x .682 x .036

$1.99

$

Usually ships in 4-12 days

0

7

Gravely 06800028

Rivet, Pop .187
(Superseded to 06800140)

$0.99

$

In Stock, Qty 14

0

8

Gravely 04183000

Keeper, Bolt

$6.49

$

Usually ships in 4-12 days

0

9

Gravely 04371653

Weldment, 48" PT100 Side Dis Deck, CE

$

$

Not available

10

Gravely 05359400

Decal, Pinch Point

$19.99

$

Usually ships in 4-12 days

0

11

Gravely 04498351

Shield, Belt, Rear

$

$

Not available

12

Gravely 04508051

Shield, Belt, Front

$

$

Not available

13

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5 YZ
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06437300

Washer, Flat Steel .281 x .62 x .065 YZ
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0
