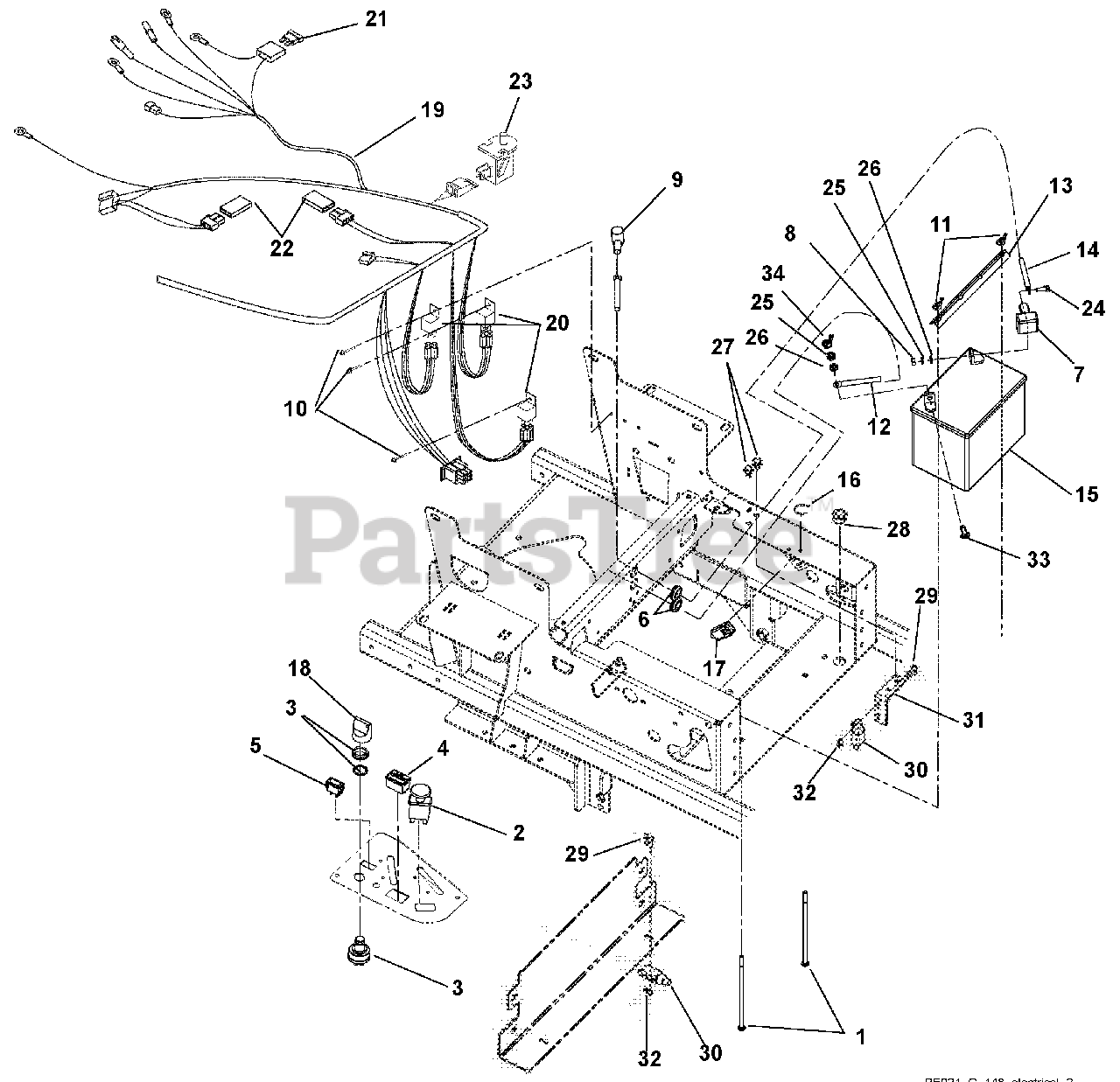

991303 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Side Discharge (SN: 001000 - 019999) Electrical Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Side Discharge

Electrical Parts Diagram

  • Title

1

Gravely 06226400

Bolt, Round Head Square Neck .25-20 x 7.50
(Superseded to 06200424)

$4.99

$

In Stock, Qty 20+

0

2

Gravely 01545600

Switch, Clutch

$25.99

$

In Stock, Qty 20+

0

3

Gravely 00464000

Switch, Ignition
(Superseded to 04331600)

$45.99

$

In Stock, Qty 20+

0

4

Gravely 03966800

Hour Meter w/Maintenance
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

5

Gravely 08841200

Light, Indicator
(Superseded to 05128700)

$6.99

$

In Stock, only 1 left!

0

6

Gravely 07500126

Bushing, Panel Snap .687 x .875 x .56

$3.99

$

In Stock, only 2 left!

0

7

Gravely 07505700

Insulator

$9.49

$

Usually ships in 4-12 days

0

8

Gravely 06533200

Nut, Hex .25-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

9

Gravely 00525800

Battery Terminal Boot, Red

$7.99

$

Usually ships in 4-12 days

0

10

Gravely 07500125

Rivet, .25 Nylon Panel

$1.49

$

In Stock, Qty 18

0

11

Gravely 06537500

Nut, Locking Wing .250-20
(Superseded to 06500805)

$4.99

$

In Stock, Qty 20+

0

12

Gravely 03111101

Ground Cable .31 x 22.00 x .31

$20.99

$

In Stock, only 1 left!

0

13

Gravely 03494051

Hold Down

$11.99

$

In Stock, only 2 left!

0

14

Gravely 03288400

Cable, Positive Battery 26.00"

$18.99

$

Usually ships in 4-12 days

0

15

Gravely 01554800

Exide Battery, Sealed Maintenance Free U1-250

$

$

Not available

16

Gravely 07517300

Cable Tie

$

$

Not available

17

Gravely 03834300

Switch, Snap In-N.O./N.O.

$14.99

$

In Stock, only 1 left!

0

18

Gravely 09287000

Key, with Shield

$14.99

$

In Stock, Qty 20+

0

19

Gravely 04244800

Harness, Pro-Turn 100 Wire

$305.99

$

In Stock, only 1 left!

0

20

Gravely 00432100

Relay, Sealed w/Diode
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

21

Gravely 00524600

Fuse, 30 AMP.

$

$

Not available

22

Gravely 09293500

Diode, Connector Shell
(Superseded to 09293501)

$11.99

$

In Stock, only 3 left!

0

23

Gravely 02754100

Switch, Snap Mounting (N.O.)

Note: (N.O.)

$9.49

$

In Stock, Qty 20+

0

24

Gravely 05946800

Bolt, Hex .25-20 x .75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06308400

Washer, Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 06437300

Washer, Flat-STL .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 07411500

Screw, Tapping .31-18 x .50 Hex Washer Head
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 07500126

Bushing, Panel Snap .687 x .875 x .56

$3.99

$

In Stock, only 2 left!

0

29

Gravely 06116900

Screw, Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

30

Gravely 09251900

Switch, Single Pole (N.O.) with Cover

Note: (N.O.) with Cover

$22.99

$

Usually ships in 4-12 days

0

31

Gravely 09251253

Mount, Switch

$38.99

$

Usually ships in 4-12 days

0

32

Gravely 06536000

Nut, Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75 YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 06501200

Nut, Wing .25-20 YZ

$2.49

$

Usually ships in 4-12 days
