991303 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Side Discharge (SN: 001000 - 019999) Deck And Mounting Arms - Side Discharge Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Side Discharge

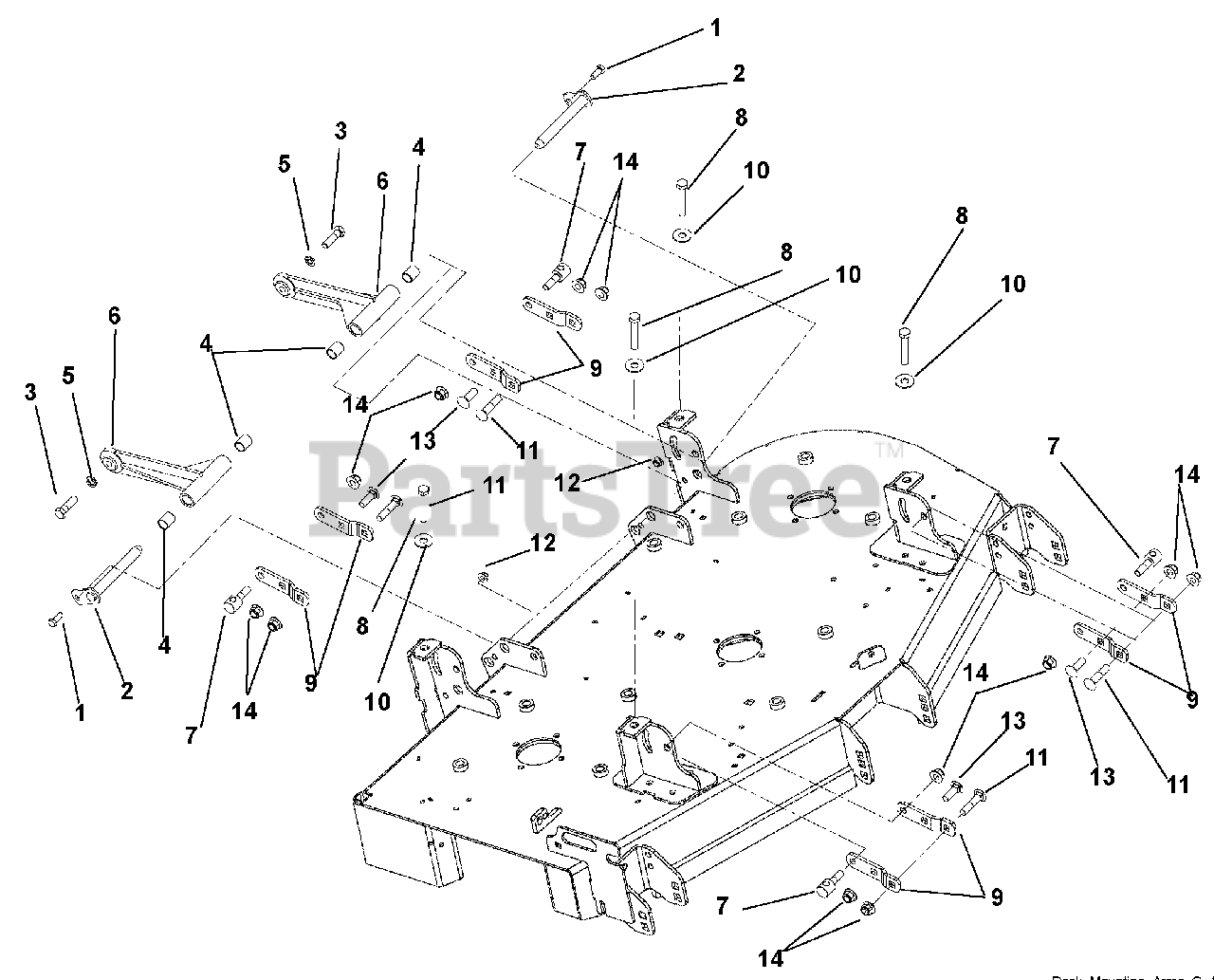

Deck And Mounting Arms - Side Discharge Parts Diagram

  • Title

1

Gravely 05948700

Bolt, Hex .38-16 x 1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 09238900

Weldment, Mower Mounting Pin

$61.99

$

Usually ships in 4-12 days

0

3

Gravely 05901436

Bolt, Hex .50-13 x 1.75 Grade 5 EP80
(Superseded to 05901922)

$3.99

$

In Stock, only 1 left!

0

4

Gravely 05435900

Bearing, .75 x .875 x 1.00

$5.99

$

In Stock, only 2 left!

0

5

Gravely 06307300

Washer, Locking .50 x .125 Regular
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

6

Gravely 04243551

Deck Pusher Arm Weldment, Black

$170.99

$

In Stock, only 1 left!

0

7

Gravely 03972000

Trunnion, .50-13

$48.99

$

In Stock, only 4 left!

0

8

Gravely 05901421

Bolt, Hex .50-13 x 3.00
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

9

Gravely 03966251

Bracket, Deck Leveling

$22.99

$

Usually ships in 4-12 days

0

10

Gravely 06442000

Washer, Flat Steel .563 x 1.38 x .109
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

11

Gravely 06200119

Bolt, Round Head Square Neck .50-13 x 2.25
(Superseded to 06200423)

$3.99

$

In Stock, Qty 7

0

12

Gravely 06545500

Nut, Locking Nylon Flange .38-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06223100

Bolt, Round Head Square Neck .50-13 x 1.50
(Superseded to 06200421)

$4.49

$

Usually ships in 4-12 days

0

14

Gravely 06500010

Nut, Locking Nylon Flange .50-13
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0
