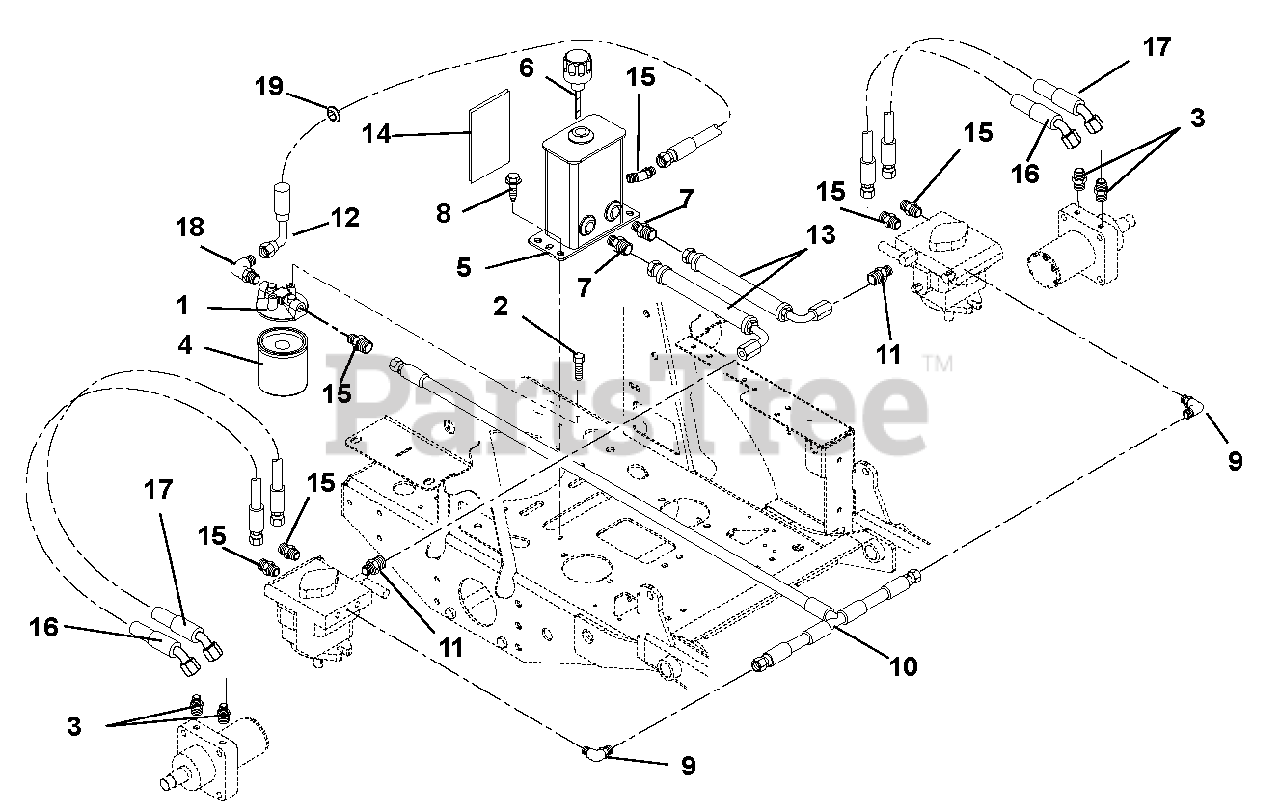

991302 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, Kawasaki (SN: 020000 & Above) Hydraulic Tank, Filter, Motors and Pump to Tank Circuit Parts Diagram

Compact-Pro 34" Zero-Turn Mower, Kawasaki

Hydraulic Tank, Filter, Motors and Pump to Tank Circuit Parts Diagram

  • Title

1

Gravely 00672000

Head, Filter

$22.99

$

Usually ships in 4-12 days

0

2

Gravely 05900008

Bolt, Hex .25-20 x .50
(Superseded to 05901918)

$1.49

$

In Stock, only 1 left!

0

3

Gravely 07062100

Adapter, Hydraulic

$14.99

$

In Stock, only 1 left!

0

4

Gravely 00669300

Oil Filter

$26.99

$

In Stock, only 4 left!

0

5

Gravely 02985351

Weldment, Formed Hydraulic Tank – 3 Port

$170.99

$

Usually ships in 4-12 days

0

6

Gravely 00463000

Breather Dipstick

$

$

Not available

7

Gravely 07000012

Fitting, Hydraulic Straight M8O-M4F

$

$

Not available

8

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 07063600

Adapter, Hydraulic 8MB-12FPX90

$34.99

$

In Stock, only 4 left!

0

10

Gravely 00669400

Hose, Hydraulic .50 to .38 Tee Assembly

$138.99

$

Usually ships in 4-12 days

0

11

Gravely 07063800

Fitting, Hydraulic (4-6 F5OLO)

Note: (4-6 F5OLO)

$14.99

$

Usually ships in 4-12 days

0

12

Gravely 00393800

Hose, Hydraulic .50-11-OK F8F0-F8F9

$42.99

$

Usually ships in 4-12 days

0

13

Gravely 00275600

Hose, Hydraulic

$76.99

$

In Stock, only 3 left!

0

14

Gravely 09286900

Shield, Heat 5.50 x 4.50

$20.99

$

Usually ships in 4-12 days

0

15

Gravely 07059900

Adapter, Face Seal 8 x 8 1/2 O-Ring 8 F5OLO, Steel

$9.49

$

In Stock, only 4 left!

0

16

Gravely 00357300

Hose, Hydraulic .50-11-3K

$79.99

$

In Stock, only 2 left!

0

17

Gravely 00357400

Hose, Hydraulic .50-12-3K

$96.99

$

In Stock, only 2 left!

0

18

Gravely 07069600

Fitting, Hydraulic EL M8F-M80

$34.99

$

Usually ships in 4-12 days

0

19

Gravely 07536800

Grommet, 1.25 ID x 1.50 OD

$12.99

$

Usually ships in 4-12 days

0
