991302 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, Kawasaki (SN: 003000 - 019999) Hydro-Gear Hydrostatic Pump Left Side Parts Diagram

Compact-Pro 34" Zero-Turn Mower, Kawasaki

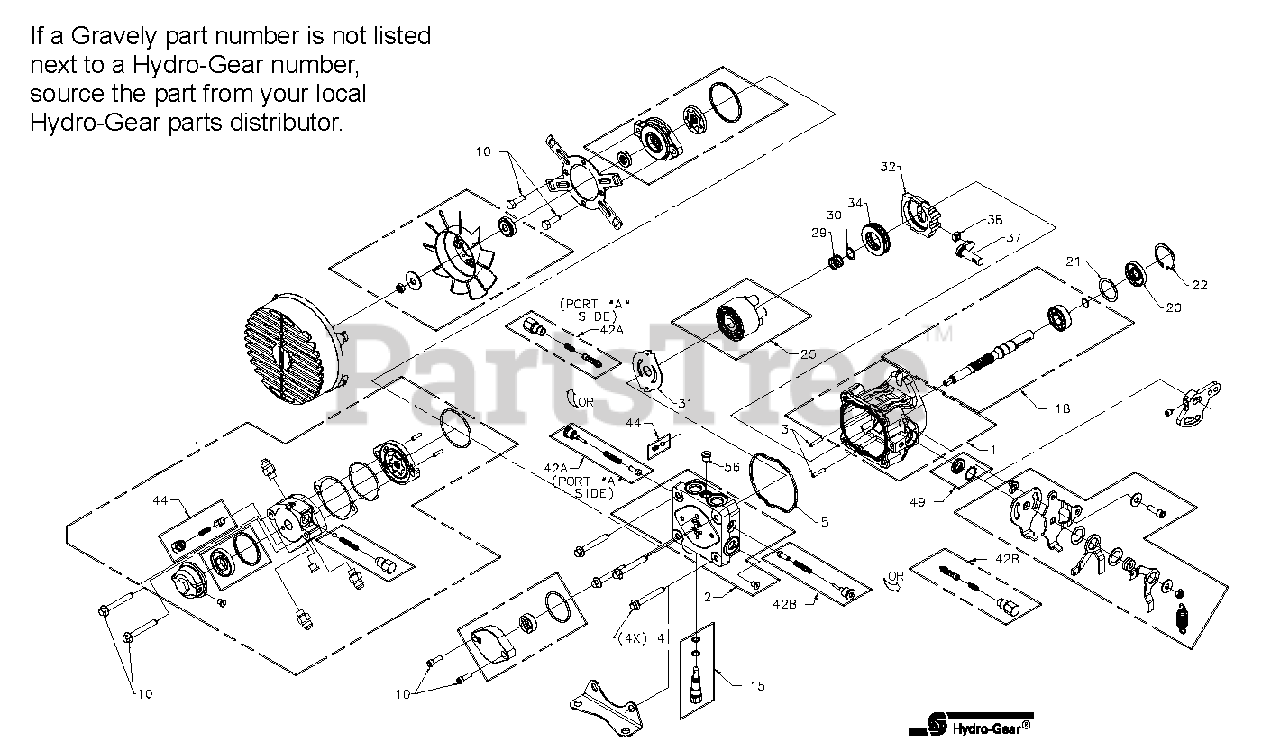

Hydro-Gear Hydrostatic Pump Left Side Parts Diagram

  • Title

1

Gravely 21543899

Kit, Housing

$

$

Not available

2

Gravely 21543900

Kit, End Cap W/PPT & STD

$

$

Not available

3

Gravely 21543750

Pin, .219 x 1

$

$

Not available

4

Gravely 21543775

Hex, Flange Bolt M8-1.25 x 60mm

$

$

Not available

5

Gravely 21543978

Kit, Chg Pump

$111.99

$

In Stock, only 1 left!

0

10

Gravely 21543777

Screw, Cap M6 x 1 x 25

$

$

Not available

15

Gravely 21543979

Kit, Bypass Valve

$28.99

$

Usually ships in 4-12 days

0

18

Gravely 21543902

Kit, Pump Shaft 15mm Key

$

$

Not available

20

Gravely 21543816

Seal, Lip 17 x 40 x 7

$14.99

$

Usually ships in 4-12 days

0

21

Gravely 21543773

Washer 1.23 x 1.56 x .04

$5.99

$

In Stock, only 2 left!

0

22

Gravely 21543741

RING- RET 1.56 INT

$6.99

$

Usually ships in 4-12 days

0

25

Gravely 21543889

Kit, 10 CC Block

$101.99

$

Usually ships in 4-12 days

0

29

Gravely 08621500

Spring, Block

$1.99

$

In Stock, Qty 6

0

30

Gravely 08609400

Washer, Thrust .59 x .78 x .04

$1.99

$

In Stock, only 1 left!

0

31

Gravely 21543838

Plate, Valve

$36.99

$

Usually ships in 4-12 days

0

32

Gravely 08609000

Swashplate 10cc

$

$

Not available

34

Gravely 08609100

Bearing, Thrust Ball 30 x 52 x 13

$17.99

$

Usually ships in 4-12 days

0

37

Gravely 21543963

Arm, Trunnion 10 Cc

$

$

Not available

38

Gravely 08610700

Guide, Slot

$

$

Not available

42

Gravely 21543923

Kit, Shock Valve 200 Bar

$

$

Not available

44

Gravely 21543891

Kit, Chg Relief

$

$

Not available

49

Gravely 58803300

Kit, BDP-10l Seal

$9.99

$

Usually ships in 4-12 days

0

56

Gravely 21543993

Plug 7/16-20 (Metal)

Note: (Metal)

$

$

Not available

NS

Gravely 59203600

Kit, Overhaul Seal

$77.99

$

Usually ships in 4-12 days

0
