991302 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, Kawasaki (SN: 000501 - 002999) Engine and Clutch Parts Diagram

Compact-Pro 34" Zero-Turn Mower, Kawasaki

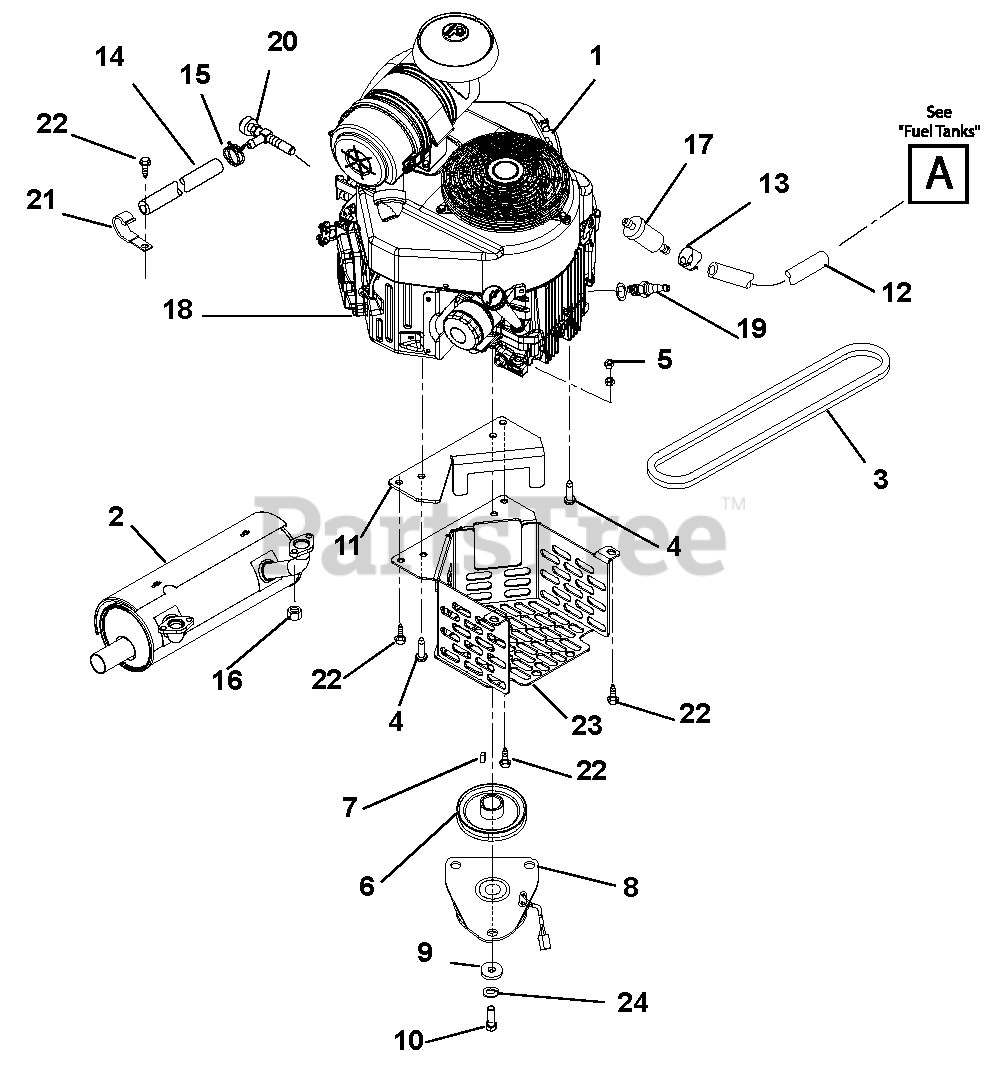

Engine and Clutch Parts Diagram

  • Title
1

Gravely 08200525

Engine, Kawasaki FX 481

$

$

Not available

2

Gravely 03971600

Muffler, Kawasaki

$180.99

$

In Stock, only 1 left!

0

3

Gravely 07200010

V-Belt, 53.7 Inches

$36.99

$

In Stock, Qty 7

0

4

Gravely 05900125

Screw, Tapping Hex Washer Head .38-16 x 1.50
(Superseded to 05901507)

$2.49

$

In Stock, only 3 left!

0

5

Gravely 06545400

Nut, Locking Nylon Flange .31-18
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 07300119

Pulley, 4.50 OD x 1.127 Engine

$

$

Not available

7

Gravely 06602700

Key, Square .25 x .625 x .25 SAE 8630 OR SAE 1035

$3.99

$

In Stock, only 3 left!

0

8

Gravely 03789900

Clutch, Ogura

$349.99

$

In Stock, only 3 left!

0

9

Gravely 06443500

Washer, Flat Steel .463 x 1.375 x .250

$6.99

$

Usually ships in 4-12 days

0

10

Gravely 05900039

Bolt, Hex .44-20 x 1.50 Grade 5 EP80
(Superseded to 05902004)

$5.99

$

In Stock, Qty 5

0

11

Gravely 04457351

Anchor, Clutch, CE

$

$

Not available

12

Gravely 03278100

Hose, Gas Line .25" I.D.

$1.49

$

In Stock, Qty 20+

0

13

Gravely 03278800

Hose, Clamp

$1.49

$

In Stock, Qty 20+

0

14

Gravely 00172900

Hose, .50 x 6.00

$9.49

$

Usually ships in 4-12 days

0

15

Gravely 06923500

Clamp, .88 Diameter Hose

$1.99

$

In Stock, Qty 6

0

16

Gravely 06500018

Nut, Top Lock M8-1.25
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0

17

Gravely 21410800

Fuel Filter, Kawasaki
(Superseded to 21541500)

$8.99

$

In Stock, Qty 20+

0

18

Gravely 21535800

Oil Filter, Kawasaki
(Superseded to 49065-0724)

$18.99

$

In Stock, Qty 20+

0

19

Gravely 21536100

Spark Plug, Kawasaki

$3.99

$

In Stock, Qty 20+

0

20

Gravely 00429000

Drain, .50 Oil

$39.99

$

In Stock, only 1 left!

0

21

$2.49

$

Usually ships in 4-12 days

0

22

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 04457451

Weldment, Anchor and Belt Guard

$

$

Not available

24

Gravely 06309300

Washer, Locking .44
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0
