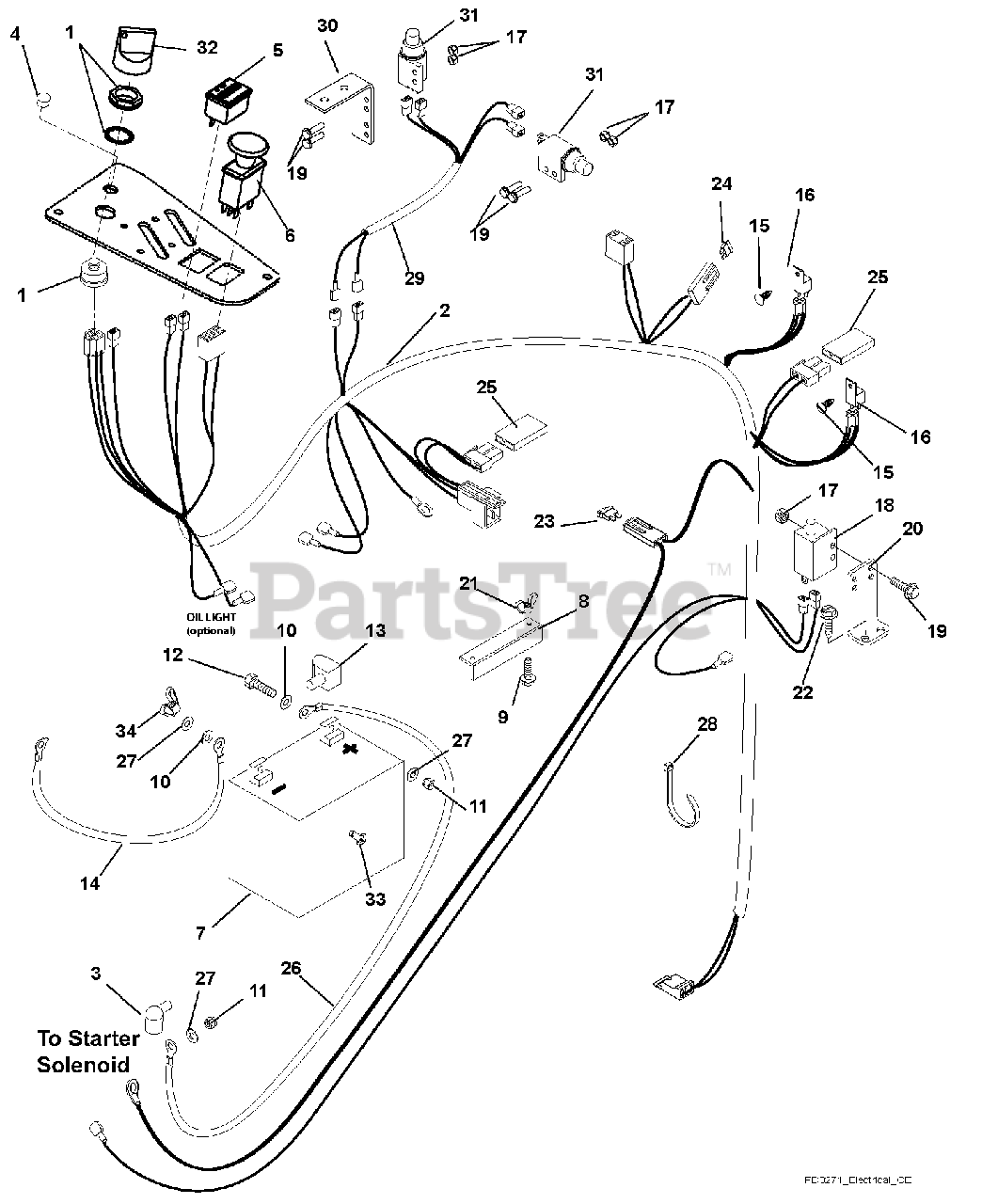

991301 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, Kawasaki (SN: 003000 - 019999) Electrical System Parts Diagram

Compact-Pro 34" Zero-Turn Mower, Kawasaki

Electrical System Parts Diagram

  • Title

1

Gravely 09089700

Key Switch Assy (Includes key)
(Superseded to 04331700)

Note: (Includes key)

$43.99

$

In Stock, Qty 11

0

2

Gravely 03288500

Harness, CZ Remote Solenoid
(Superseded to 04762400)

$155.99

$

In Stock, only 1 left!

0

3

Gravely 00525800

Boot, Eyelet Terminal

$7.99

$

Usually ships in 4-12 days

0

4

Gravely 07527800

Plug, Hole .50 Diameter

$

$

Not available

5

Gravely 03966800

Hour Meter – with Maintenance
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

6

Gravely 01545600

Switch, Clutch with Retainer Ring

$25.99

$

In Stock, Qty 20+

0

7

Gravely 01554800

Battery

$

$

Not available

8

Gravely 03494051

Hold Down

$11.99

$

In Stock, only 2 left!

0

9

Gravely 06226400

Bolt, Round Head Square Neck .25-20 x 7.50
(Superseded to 06200424)

$4.99

$

In Stock, Qty 20+

0

10

Gravely 06437300

Washer, Flat Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06533200

Nut, Hex .25-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

12

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 07505700

Insulator

$9.49

$

Usually ships in 4-12 days

0

14

Gravely 03288100

Cable, Negative Battery

$17.99

$

In Stock, only 2 left!

0

15

Gravely 07500125

Rivet, .25 Nylon Panel

$1.49

$

In Stock, Qty 18

0

16

Gravely 00432100

Relay (Included with Harness)
(Superseded to 00432101)

Note: (Included with Harness)

$22.99

$

In Stock, Qty 20+

0

17

Gravely 06536000

Nut, Locking Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 03657100

Switch, Single Pole

$9.49

$

In Stock, only 2 left!

0

19

Gravely 06116900

Screw, Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

20

Gravely 09282851

Mount, Brake Switch

$19.99

$

Usually ships in 4-12 days

0

21

Gravely 06537500

Nut, Locking Wing .25-20
(Superseded to 06500805)

$4.99

$

In Stock, Qty 19

0

22

Gravely 07400034

Screw, Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 09351100

Fuse, 25 Amp (Included with Harness)
(Superseded to 08961800)

Note: (Included with Harness)

$3.99

$

In Stock, only 4 left!

0

24

Gravely 00580600

Fuse, 20 Amp

$5.99

$

In Stock, Qty 12

0

25

Gravely 09293500

Diode, Connector Shell
(Superseded to 09293501)

$11.99

$

In Stock, only 3 left!

0

26

Gravely 03288400

Cable, Starter

$18.99

$

Usually ships in 4-12 days

0

27

Gravely 06308400

Washer, Lock .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 07517300

Tie, Cable LG 5.50

$

$

Not available

29

Gravely 04180800

Harness, CE Foot and Seat Plate Switch

$23.99

$

Usually ships in 4-12 days

0

30

Gravely 09251253

Mount, Switch

$38.99

$

Usually ships in 4-12 days

0

31

Gravely 09251900

Switch, Single Pole (N.O.) with Cover

Note: (N.O.) with Cover

$22.99

$

Usually ships in 4-12 days

0

32

Gravely 09287000

Key, with Shield

$14.99

$

In Stock, Qty 20+

0

33

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75 G5 YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 06501200

Nut, Wing .25-20 YZ

$2.49

$

Usually ships in 4-12 days
