991300 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Rear Discharge, Kawasaki (SN: 030000 & Above) Steering Controls - SN 040000 - 049999 Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Rear Discharge, Kawasaki

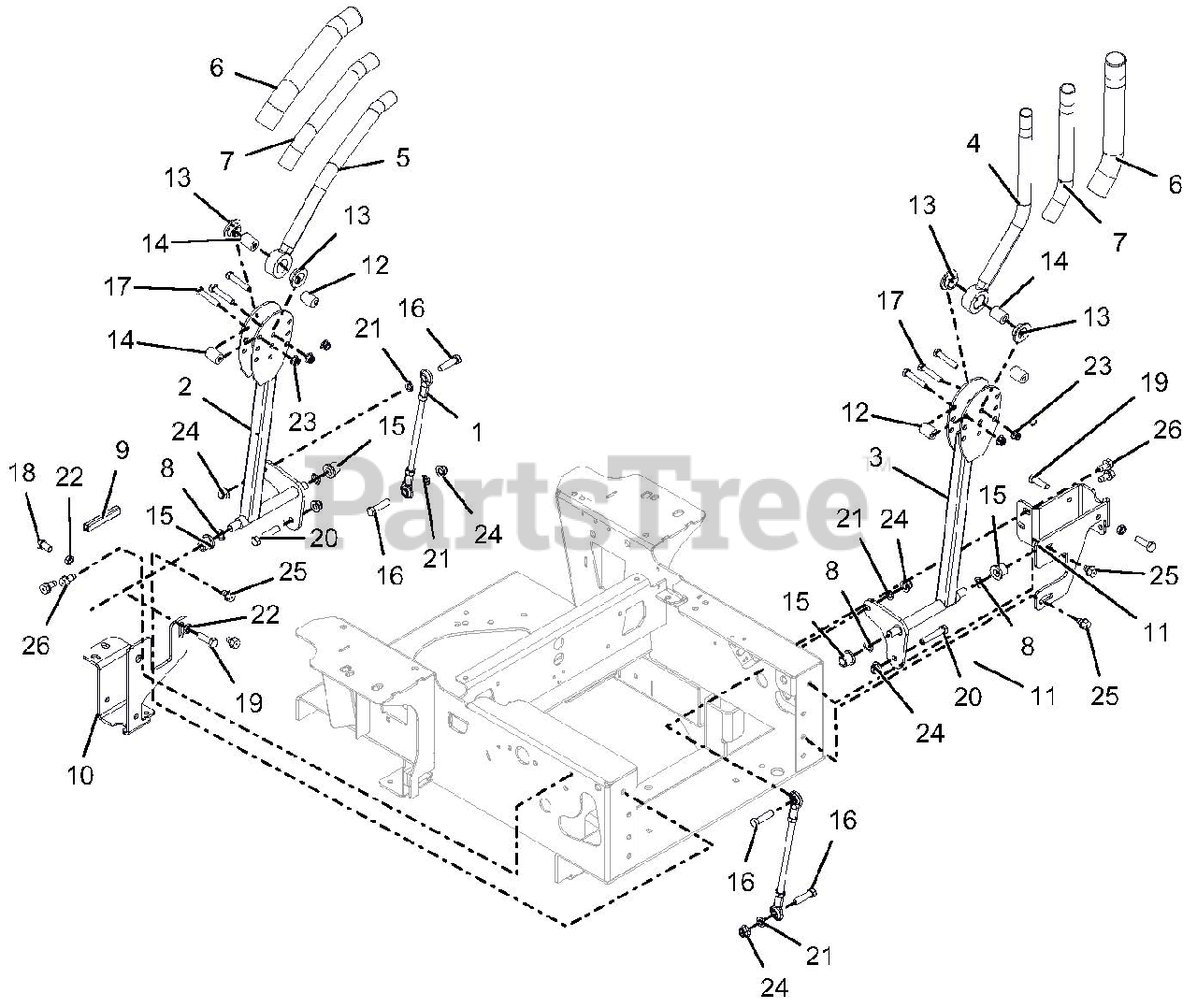

Steering Controls - SN 040000 - 049999 Parts Diagram

  • Title
1

Gravely 03251700

ASM, STEERING LINKAGE

$

$

Not available

2

Gravely 04762951

WLDMT, PT/PT100 CONTROL ARM-BLACK

$109.99

$

In Stock, only 1 left!

0

3

Gravely 04763051

WLDMT, LH PT/PT100 CONTROL ARM

$155.99

$

Usually ships in 4-12 days

0

4

Gravely 09235500

WLDMT, LH HANDLE

$90.99

$

In Stock, only 1 left!

0

5

Gravely 09235600

WLDMT, RH HANDLE

$93.99

$

In Stock, only 1 left!

0

6

Gravely 03929100

GRIP, HANDLEBAR

$14.99

$

In Stock, only 1 left!

0

7

Gravely 03988300

TUBE, .88ID X 1.00OD X 10.25

$14.99

$

In Stock, only 2 left!

0

8

Gravely 00325400

WAVE WASHER .531X.781X.125 FH

$0.99

$

In Stock, Qty 20+

0

9

Gravely 00918200

STRIP, COWL - 1.50 LG

$5.99

$

Usually ships in 4-12 days

0

10

Gravely 04967753

BRKT, RH STEERING STOP-RED

$60.99

$

Usually ships in 4-12 days

0

11

Gravely 04967853

BRKT, LH STEERING STOP-RED

$

$

Not available

12

Gravely 05500932

BSHG, ECCENTRIC .328 X .750 X .970

$1.49

$

In Stock, Qty 20+

0

13

Gravely 05525200

BSHG, FLANGE .762 X 1.48 X .44 NYLON
(Superseded to 05501517)

$

$

Not available

14

Gravely 09235400

SPACER, .328 X .76 X 1.01

$

$

Not available

15

Gravely 05501001

BHSG-FLG .500X.750X.750X.125

$4.99

$

In Stock, Qty 20+

0

16

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

17

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

18

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 05942200

BLT-HEX .38-16X2.00 FTH GR5 YWZC

$2.99

$

In Stock, only 1 left!

0

21

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06535900

NUT, JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0
