991300 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Rear Discharge, Kawasaki (SN: 030000 & Above) Belt Covers - 48" - Rear Discharge Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Rear Discharge, Kawasaki

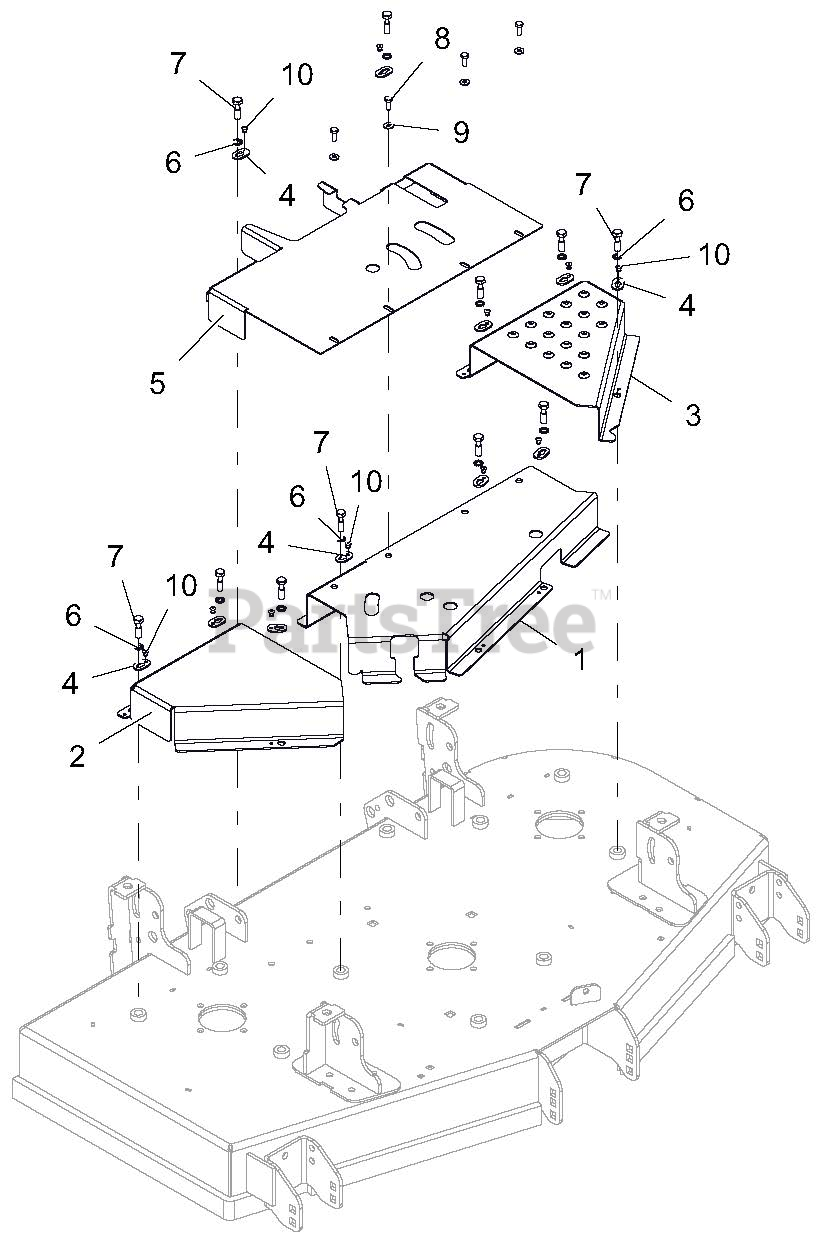

Belt Covers - 48" - Rear Discharge Parts Diagram

  • Title
1

04508053

WLDMT, FRONT BELT SHIELD

$

$

Not available

2

04099953

GUARD, RH PT200 CE BELT

$

$

Not available

3

04100053

GUARD, LH PT200 CE BELT

$

$

Not available

4

Gravely 04183000

KEEPER, BOLT

$6.49

$

Usually ships in 4-12 days

0

5

Gravely 04498300

SHIELD, BELT REAR

$

$

Not available

6

Gravely 06308700

LOCK, WSHR-EXT 0.391 X 0.628 X 0.036 YWZC

$1.99

$

Usually ships in 4-12 days

0

7

Gravely 07001625

BLT, HEX 0.38-16 X 1.25 GR5 CAPTIVE

$14.99

$

Usually ships in 4-12 days

0

8

Gravely 05901421

BLT,HEX .50-13X3.00 GR5 FTH YZ
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

9

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06800028

RVT-POP .187x.250 (#64) YWZC
(Superseded to 06800140)

$0.99

$

In Stock, Qty 14

0
