991300 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Rear Discharge, Kawasaki (SN: 020000 - 029999) Mower Deck And Belt Covers - Rear Discharge Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Rear Discharge, Kawasaki

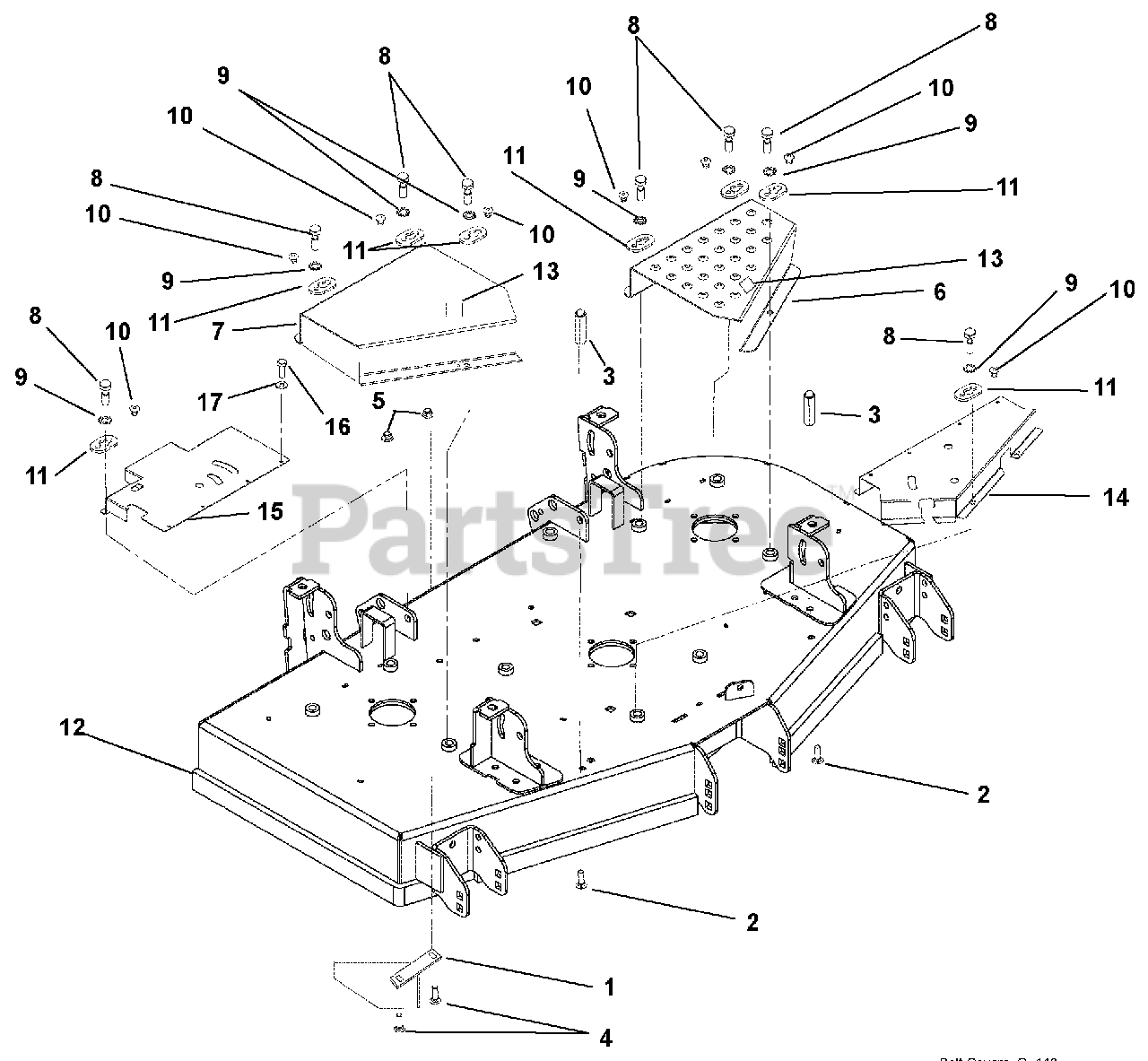

Mower Deck And Belt Covers - Rear Discharge Parts Diagram

  • Title

1

Gravely 00502453

Rear Discharge Deflect Baffle Weldment

$38.99

$

Usually ships in 4-12 days

0

2

Gravely 06200002

Bolt, Round Head Square Neck .31-18 x .75
(Superseded to 06200425)

$3.99

$

In Stock, only 3 left!

0

3

Gravely 07000027

Nut, Coupling .31-18 x 3.00

$22.99

$

In Stock, only 3 left!

0

4

Gravely 06212000

Bolt, Round Head Square Neck .38-16 x 1.00
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06545500

Nut, Locking-Nylon-Flange .38-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 04100051

Cover, Belt, CE Left Hand

$

$

Not available

7

Gravely 04099951

Cover, CE Belt Right Hand

$

$

Not available

8

Gravely 07001625

Bolt, Hex .38-16 x 1.25

$14.99

$

Usually ships in 4-12 days

0

9

Gravely 06308700

Washer, Locking, EXT .391 x .682 x .036

$1.99

$

Usually ships in 4-12 days

0

10

Gravely 06800028

Rivet, Pop .187
(Superseded to 06800140)

$0.99

$

In Stock, Qty 16

0

11

Gravely 04183000

Keeper, Bolt

$6.49

$

Usually ships in 4-12 days

0

12

Gravely 04316153

Weldment, 48" PT100 RR DISCH Deck

$

$

Not available

13

Gravely 05359400

Decal, Pinch Point

$19.99

$

Usually ships in 4-12 days

0

14

Gravely 04508051

Weldment, Front Belt Shield

$

$

Not available

15

Gravely 04498351

Shield, Belt Rear

$

$

Not available

16

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5 YZ
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06437300

Washer, Flat Steel .281 x .62 x .065 YZ
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0
