991300 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Rear Discharge, Kawasaki (SN: 020000 - 029999) Mechanical Deck Lift Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Rear Discharge, Kawasaki

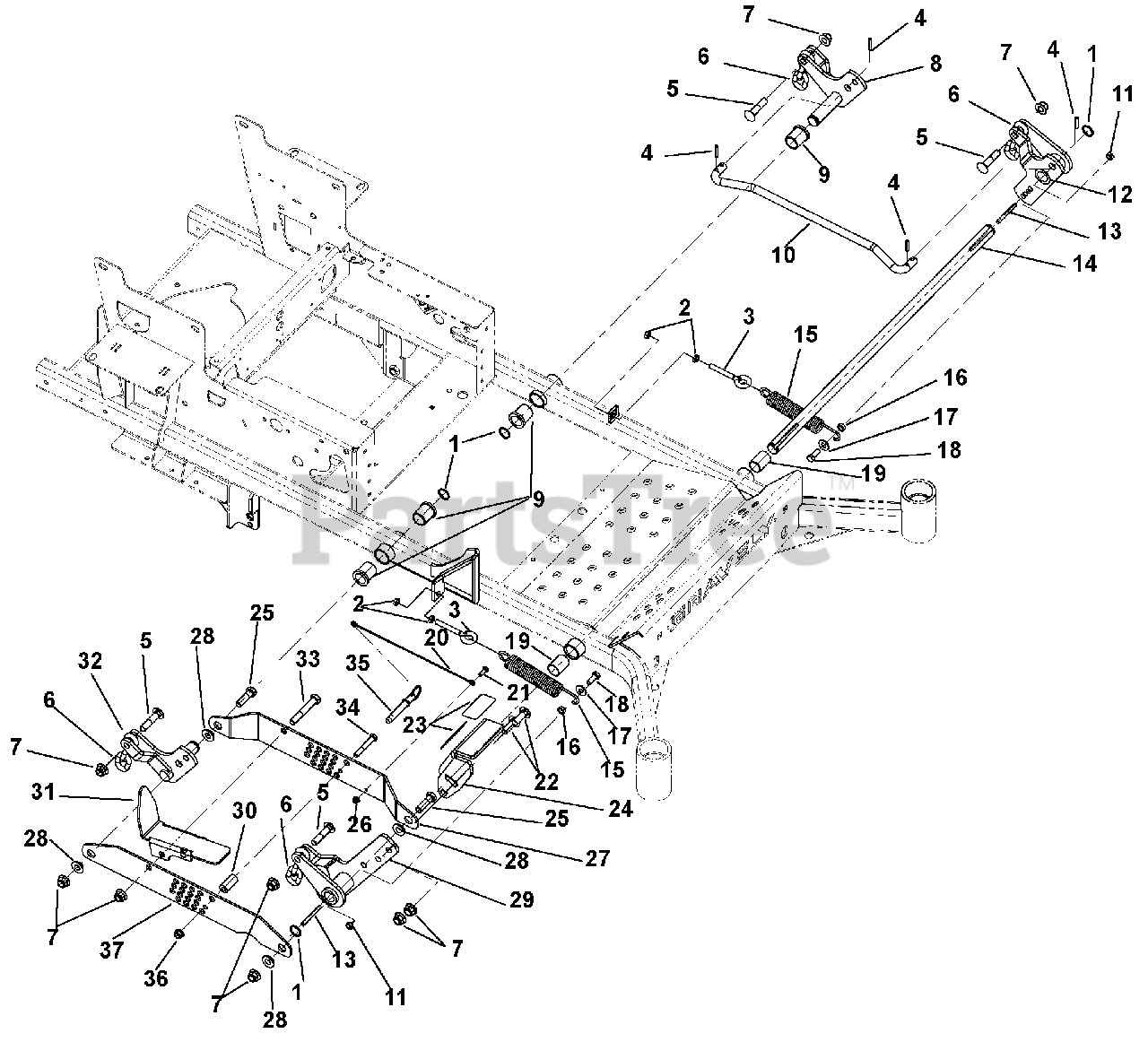

Mechanical Deck Lift Parts Diagram

  • Title

1

Gravely 05707300

Ring, Retaining, External 1.00 x .078

$2.99

$

In Stock, Qty 9

0

2

Gravely 06535900

Nut, Hex, Jam .375-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 07030000

Bolt, Eye .375-16 x 2.50

$7.99

$

Usually ships in 4-12 days

0

4

Gravely 05800001

Pin, Roll .25 x 1.25 Stainless Steel

$2.99

$

Usually ships in 4-12 days

0

5

Gravely 06200119

Bolt, Round Head Square Neck .50-13 x 2.25
(Superseded to 06200423)

$3.99

$

In Stock, Qty 7

0

6

Gravely 04242600

Chain, 3-Link .38 Deck Lift
(Superseded to 04732500)

$

$

Not available

7

Gravely 06500010

Nut, Locking Nyloc Flange .50-13
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 03858100

Weldment, Rear Deck Lift Left Hand

$108.99

$

Usually ships in 4-12 days

0

9

Gravely 05500934

Bushing, Flange 1.00 x 1.25 x 1.50 x 1.50

$6.99

$

In Stock, Qty 20+

0

10

Gravely 04063100

Rod, Lift Assist 19.35"

$68.99

$

In Stock, only 2 left!

0

11

Gravely 06537200

Nut, Locking Center Jam .375-16
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 03857900

Weldment, Front Deck Lift Left Hand

$165.99

$

Usually ships in 4-12 days

0

13

Gravely 06602600

Key, Square .25 x 2.50 x .25 SAE

$5.99

$

In Stock, only 3 left!

0

14

Gravely 04243600

Shaft, PT100 Front Mower Lift

$156.99

$

Usually ships in 4-12 days

0

15

Gravely 08319000

Spring, Tension .162 x 1.25 x 8.25 Weldment 25

$33.99

$

In Stock, Qty 6

0

16

Gravely 05508900

Bushing, Sleeve .377 x .624 x .235

$9.49

$

In Stock, only 1 left!

0

17

Gravely 06435900

Washer, Flat Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 05948700

Bolt, Hex .38-16 x 1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05500034

Bushing, 1.00 ID x 1.125 OD x 1.50

$6.99

$

In Stock, only 3 left!

0

20

Gravely 06900317

Cable, 12.0 Lanyard, Nylon

$3.49

$

In Stock, only 2 left!

0

21

Gravely 05946800

Bolt, Hex .25-20 x .75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06223100

Bolt, Round Head Square Neck .50-13 x 1.50
(Superseded to 06200421)

$4.49

$

Usually ships in 4-12 days

0

23

Gravely 00270100

Grip, Pedal 1.50 x 3.00

$3.49

$

In Stock, Qty 5

0

24

Gravely 04088651

Adjustable Foot Lift Pedal, Black

$56.99

$

Usually ships in 4-12 days

0

25

Gravely 05970600

Bolt, Hex .50-13 x 1.75
(Superseded to 05901939)

$3.99

$

In Stock, only 2 left!

0

26

Gravely 06500012

Nut, Locking Nylon Flange .25-20
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

27

Gravely 03954751

Lift/Cut Height Bracket, Inboard Right Hand

$53.99

$

Usually ships in 4-12 days

0

28

Gravely 03989100

Bushing, Flange .515 x .750 x .395 x 1.120

$3.49

$

In Stock, Qty 20+

0

29

Gravely 04184400

Weldment, Adjustable Deck Foot Lift

$153.99

$

Usually ships in 4-12 days

0

30

Gravely 03954800

Spacer, .375 x .750 x 1.54

$6.49

$

Usually ships in 4-12 days

0

31

Gravely 03864051

Mechanical Lock-up Weldment, Black

$23.99

$

Usually ships in 4-12 days

0

32

Gravely 03858000

Weldment, Rear Deck Lift Right Hand

$109.99

$

Usually ships in 4-12 days

0

33

Gravely 05960000

Bolt, Hex .50-13 x 3.25
(Superseded to 05901634)

$3.99

$

Usually ships in 4-12 days

0

34

Gravely 05958400

Bolt, Hex .38-16 x 2.50
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

35

Gravely 03957100

Pin, .50 x 2.00 Usable Length Ball
(Superseded to 04822400)

$9.49

$

In Stock, only 2 left!

0

36

Gravely 06545500

Nut, Locking Nyloc Flange .38-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 03954651

Lift/Cut Height Bracket, Outboard Right Hand

$45.99

$

Usually ships in 4-12 days

0
