991300 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Rear Discharge, Kawasaki (SN: 010500 - 019999) Transmission Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Rear Discharge, Kawasaki

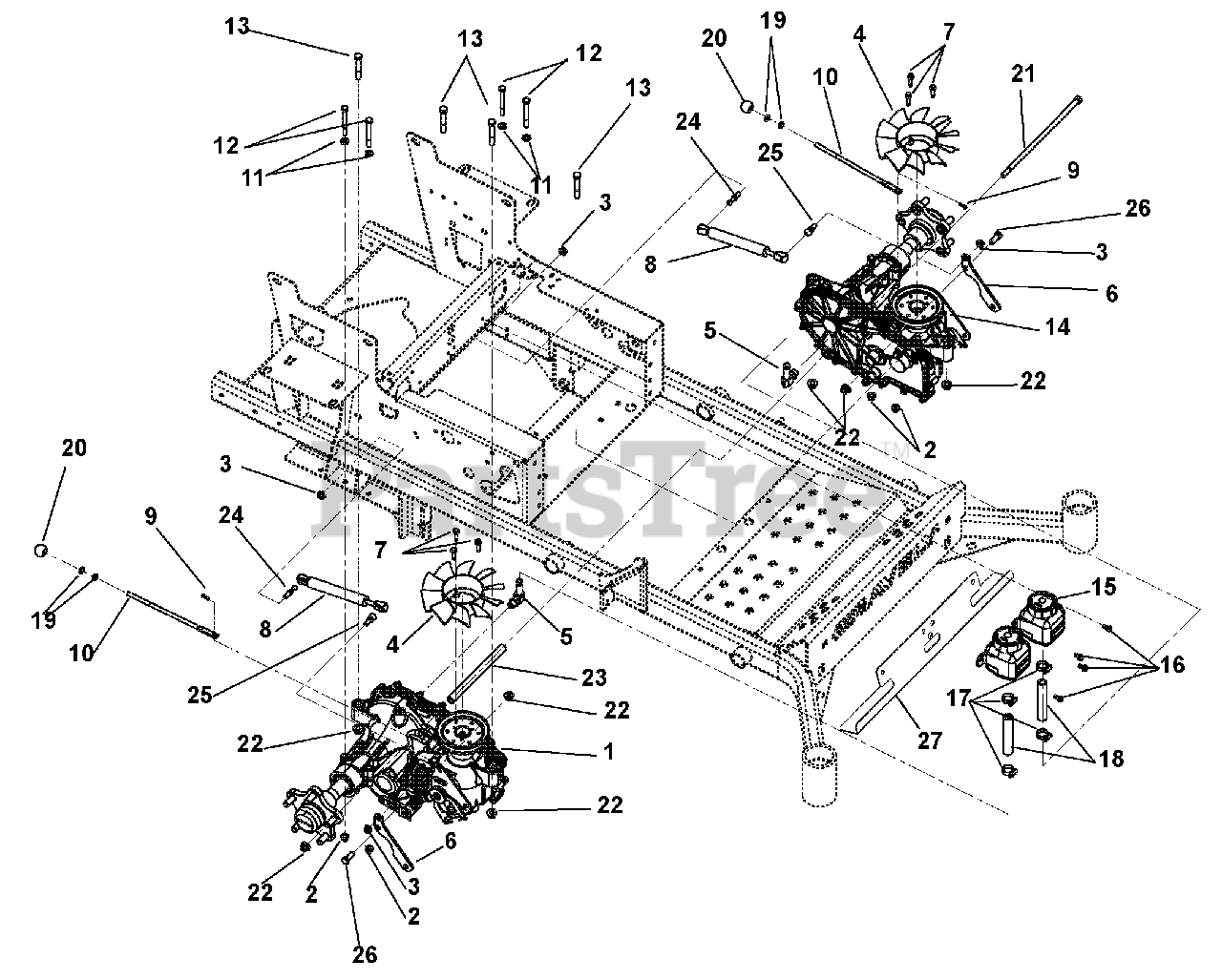

Transmission Parts Diagram

  • Title

1

Gravely 03776400

Transaxle, 100I-Right Hand
(Superseded to 09184700)

$1706.99

$

Usually ships in 4-12 days

0

2

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 03283500

Fan, 2800 Series Cooling

$25.99

$

Usually ships in 4-12 days

0

5

Gravely 07001528

Fitting, Hydraulic (90 DEG)

Note: (90 DEG)

$

$

Not available

6

Gravely 04244751

Transmission Damper Mounting Plate

$

$

Not available

7

Gravely 07412400

Screw, Tapping .25-20 x 1.00 Hex Washer Head Thread Rolling
(Superseded to 07400133)

$2.99

$

In Stock, Qty 20+

0

8

Gravely 03769800

Damper
(Superseded to 09689700)

$39.99

$

In Stock, Qty 20+

0

9

Gravely 06701900

Pin, Hair-Internal .06 x .18 x .77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 12

0

10

Gravely 03911900

Lever, 100I Dump Valve

$102.99

$

Usually ships in 4-12 days

0

11

Gravely 06437200

Washer, Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 05962500

Bolt, Hex .31-18 x 3.00
(Superseded to 05901933)

$3.99

$

In Stock, only 4 left!

0

13

Gravely 05958400

Bolt, Hex .38-16 x 2.50
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

14

Gravely 03776500

Transaxle, 100I-Left Hand
(Superseded to 09184600)

$1706.99

$

Usually ships in 4-12 days

0

15

Gravely 02970200

Tank, Expansion ZT2800

$34.99

$

In Stock, only 1 left!

0

16

Gravely 07400034

Screw, Tapping .25-20 x .50 Hex Washer Head Thread
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06923500

Clamp, .88 Diameter Hose

$1.99

$

In Stock, Qty 6

0

18

Gravely 03832300

Hose, 100I Hydro Overflow

$5.99

$

In Stock, only 2 left!

0

19

Gravely 06536100

Nut, Jam .312-18 UNC YWZC
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 07539800

Knob, Ball Black .312-18 x 1.00

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 05901315

Bolt, Hex .38-16 x 11.00
(Superseded to 05901921)

$7.99

$

In Stock, only 1 left!

0

22

Gravely 06545500

Nut, Locking-Nylon-Flange .38-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 03367200

Spacer, .38 ID x 5/8 OD x 7.72

$14.99

$

In Stock, only 1 left!

0

24

Gravely 04097100

Stud, Ball, Threaded

$2.49

$

In Stock, Qty 15

0

25

Gravely 03652200

Stud, Ball

$3.49

$

In Stock, only 3 left!

0

26

Gravely 05948700

Bolt, Hex .38-16 x 1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 04503151

Guard, Transmission Belt

$

$

Not available

Gravely 21545100

Oil Filter, 2800 Transmission

$

$

Not available
