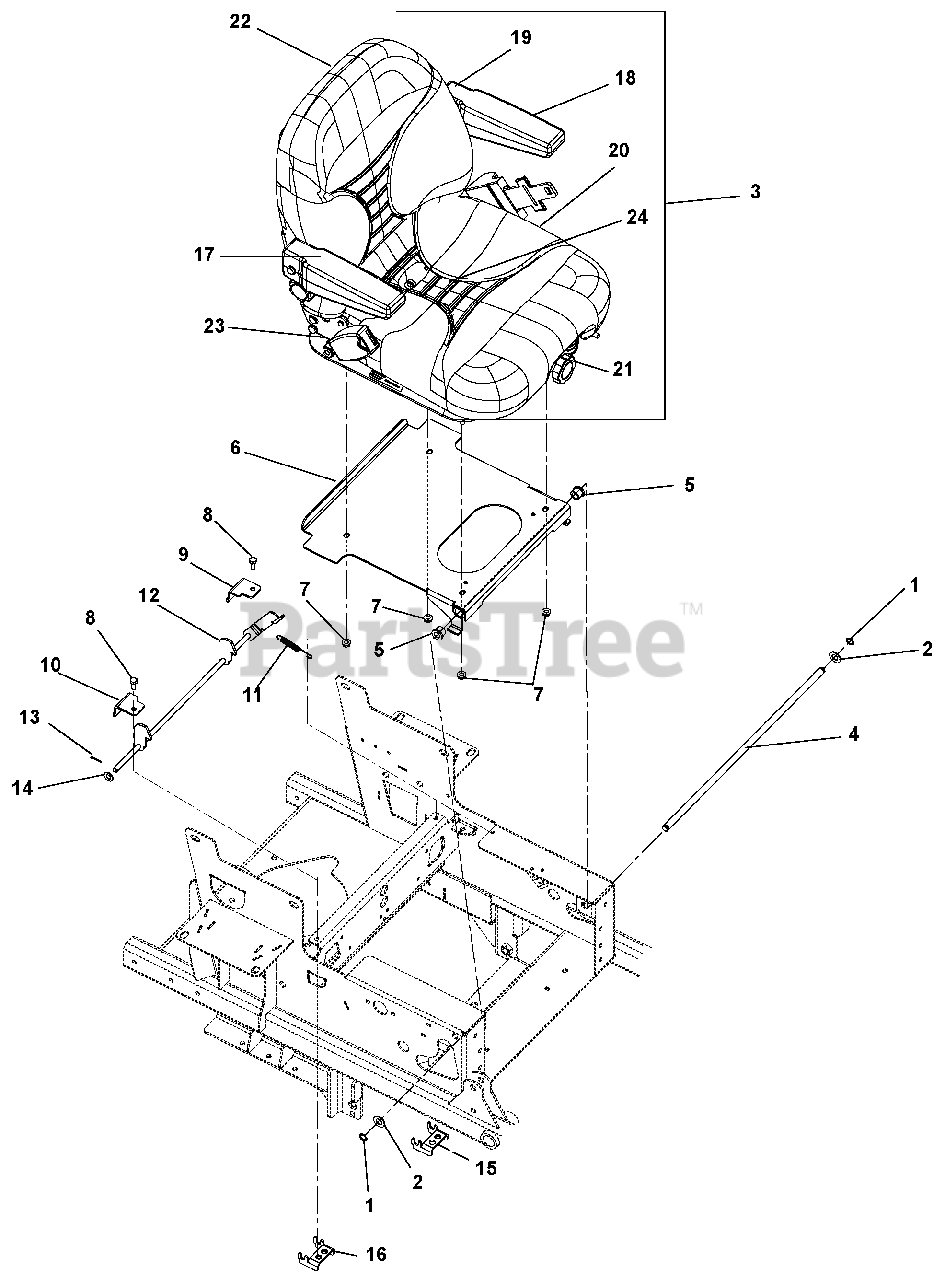

991300 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Rear Discharge, Kawasaki (SN: 010500 - 019999) Seat Assembly Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Rear Discharge, Kawasaki

Seat Assembly Parts Diagram

  • Title
1

Gravely 05717100

Ring, Retaining-External .500 x .050

$2.49

$

In Stock, Qty 8

0

2

Gravely 06425300

Washer, Flat Steel .531 x 1.00 x .063
(Superseded to 06401115)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 04052900

Seat, Suspension - with Belt, Light Gray
(Superseded to 09680600)

$930.99

$

In Stock, only 1 left!

0

4

Gravely 03837800

Shaft, 100I Seat Pivot

$

$

Not available

5

Gravely 05500901

Bushing, Flange .516 x .750 x .625 x .937

$5.99

$

In Stock, only 2 left!

0

6

Gravely 03933251

Seat Plate Weldment

$153.99

$

Usually ships in 4-12 days

0

7

Gravely 06545400

Nut, Locking-Top-Flange .31-18
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 05947000

Bolt, Hex .31-18 x .75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 03918551

Pro-Turn 100 Left Hand Top Seat Latch Mount

$

$

Not available

10

Gravely 03917951

Pro-Turn 100 Right Hand Top Seat Latch Mount

$15.99

$

Usually ships in 4-12 days

0

11

Gravely 08321100

Spring, Tension .043 x .44 x 3.31

$6.49

$

In Stock, Qty 6

0

12

Gravely 03917751

Pro-Turn 100 Seat Latch Weldment

$64.99

$

Usually ships in 4-12 days

0

13

Gravely 06706900

Pin, Center .09 x .75 Extended Prong Square Cut

$0.99

$

In Stock, Qty 8

0

14

Gravely 06436200

Washer, Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 03930451

Pro-Turn 100 Right Hand Seat Latch Mount Weldment

$22.99

$

Usually ships in 4-12 days

0

16

Gravely 03930551

Pro-Turn 100 Left Hand Seat Latch Mount Weldment

$

$

Not available

17

Gravely 59210400

Kit, Right Hand Armrest Assembly

$129.99

$

Usually ships in 4-12 days

0

18

Gravely 59210500

Kit, Left Hand Armrest Assembly

$129.99

$

Usually ships in 4-12 days

0

19

Gravely 59208800

Kit, Back Cushion, Light Grey

$423.99

$

Usually ships in 4-12 days

0

20

Gravely 59208900

Kit, Seat Cushion, Light Grey

$258.99

$

In Stock, only 3 left!

0

21

Gravely 59208000

Kit, Seat Knobs

$

$

Not available

22

Gravely 59208100

Kit, Seat Back

$175.99

$

Usually ships in 4-12 days

0

23

Gravely 59207900

Kit, Seat Slides

$

$

Not available

24

Gravely 59207800

Kit, Seat Spring and Saddle

$175.99

$

Usually ships in 4-12 days

0
