991300 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Rear Discharge, Kawasaki (SN: 002529 - 010499) Anti-Scalp Rollers Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Rear Discharge, Kawasaki

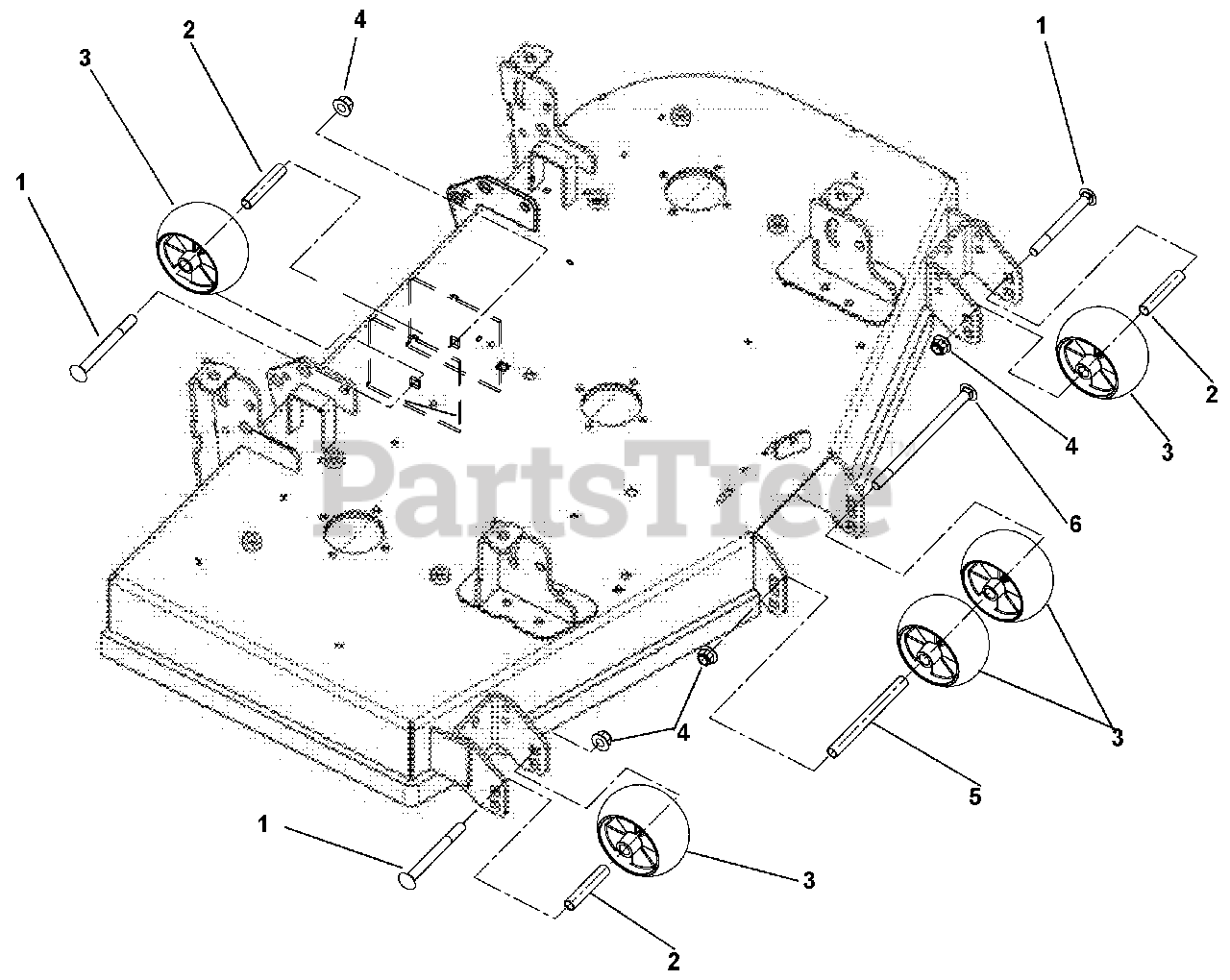

Anti-Scalp Rollers Parts Diagram

  • Title
1

Gravely 06225900

Bolt, Round Head Square Neck .50-13 x 5.00 (991300)
(Superseded to 06200505)

Note: (991300)

$5.99

$

Usually ships in 4-12 days

0

Gravely 06225900

Bolt, Round Head Square Neck .50-13 x 5.00 (991303)
(Superseded to 06200505)

Note: (991303)

$5.99

$

Usually ships in 4-12 days

0

2

Gravely 00473700

Spacer, .510 x .625 x 3.35 (991300)

Note: (991300)

$18.99

$

In Stock, Qty 20+

0

Gravely 00473700

Spacer, .510 x .625 x 3.35 (991303)

Note: (991303)

$18.99

$

In Stock, Qty 20+

0

3

Gravely 03905900

Anti-Scalp Wheel (991300)

Note: (991300)

$11.99

$

In Stock, Qty 20+

0

Gravely 03905900

Anti-Scalp Wheel (991303)

Note: (991303)

$11.99

$

In Stock, Qty 20+

0

4

Gravely 06500010

Nut, .50-13 Nyloc Flange (991300)
(Superseded to 06500810)

Note: (991300)

$1.49

$

In Stock, Qty 20+

0

Gravely 06500010

Nut, .50-13 Nyloc Flange (991303)
(Superseded to 06500810)

Note: (991303)

$1.49

$

In Stock, Qty 20+

0

5

$21.99

$

In Stock, Qty 20+

0

6

Gravely 06206400

Bolt, Round Head Square Neck .50-13 x 8.50
(Superseded to 06200321)

$6.99

$

In Stock, Qty 20+

0
