991300 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Rear Discharge, Kawasaki (SN: 000101 - 002528) Transmission-Right Hand Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Rear Discharge, Kawasaki

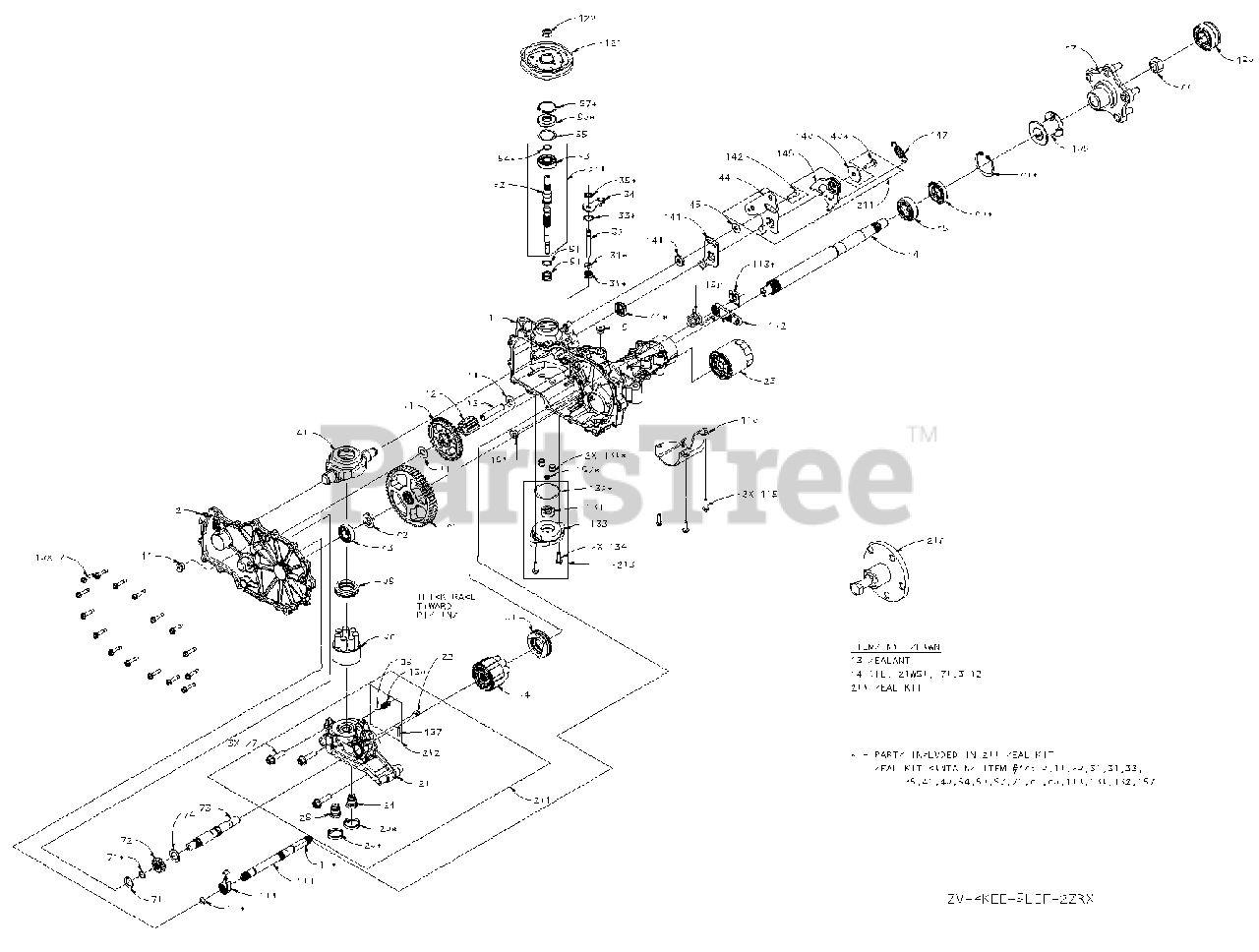

Transmission-Right Hand Parts Diagram

  • Title

1

KIT, HOUSING,MAIN,RH,CHRG,CNTL

KIT, HOUSING,MAIN,RH,CHRG,CNTL

$

$

Not available

HOUSING, MAIN, RH, CHRG, CNTL

HOUSING, MAIN, RH, CHRG, CNTL

$

$

Not available

BUSHING, .624 x .719 x .562

BUSHING, .624 x .719 x .562

$

$

Not available

BRG, JRNL .86 x .98 x .79

BRG, JRNL .86 x .98 x .79

$

$

Not available

PIN, .25 x .375

PIN, .25 x .375

$

$

Not available

-105

HFHCS 1/4-20 x .625

HFHCS 1/4-20 x .625

$

$

Not available

-134

HFHCS 1/4-20 x .625

HFHCS 1/4-20 x .625

$

$

Not available

2

KIT, COVER, SIDE, RH

KIT, COVER, SIDE, RH

$

$

Not available

COVER, SIDE, RH

COVER, SIDE, RH

$

$

Not available

5

PLUG 9/16-18 (METAL)

PLUG 9/16-18 (METAL)

Note: (METAL)

$

$

Not available

7

HFHCS 1/4-20 x 1.125"

HFHCS 1/4-20 x 1.125"

$

$

Not available

10

O-RING - 111 .103 x 424

O-RING - 111 .103 x 424

$

$

Not available

11

PLUG 9/16-18 (METAL)

PLUG 9/16-18 (METAL)

Note: (METAL)

$

$

Not available

13

Gravely 21543771

SEALANT

$116.99

$

In Stock, only 1 left!

0

14

SYNTHETIC OIL, 15W50

SYNTHETIC OIL, 15W50

$

$

Not available

22

PLATE, BYPASS

PLATE, BYPASS

$

$

Not available

23

Gravely 21545100

FILTER, OIL

$

$

Not available

26

SEAL, PLUG 1.250 x .250

SEAL, PLUG 1.250 x .250

$

$

Not available

27

HFHCS 3/8-16 x 1.5 (PATCH)

HFHCS 3/8-16 x 1.5 (PATCH)

Note: (PATCH)

$

$

Not available

30

Gravely 21543845

SEAL, LIP .375 x .75 x .25

$9.49

$

Usually ships in 4-12 days

0

31

Gravely 8622500

RING, RET .375 EXTRNL

$

$

Currently unavailable

32

ROD, BYPASS

ROD, BYPASS

$

$

Not available

33

RING, RET .750 INTRNL

RING, RET .750 INTRNL

$

$

Not available

34

ARM, BYPASS

ARM, BYPASS

$

$

Not available

35

Gravely 21543848

RING, RTNG .375 EXT

$3.99

$

In Stock, only 1 left!

0

40

Gravely 21543783

TRUNNION, SWASHPLATE

$70.99

$

Usually ships in 4-12 days

0

41

Gravely 21543809

SEAL, LIP 12 x 32 x 7

$9.49

$

Usually ships in 4-12 days

0

45

WASHER .34 x .88 x .06

WASHER .34 x .88 x .06

$

$

Not available

46

Gravely 21543854

TWHCS 5/16-24 x 1.00 (PATCH)

Note: (PATCH)

$2.99

$

Usually ships in 4-12 days

0

50

SPRING, BLOCK

SPRING, BLOCK

$

$

Not available

51

Gravely 8609400

WASHER-FLAT .59 x .79 x .04

$

$

Currently unavailable

55

Gravely 21543773

WASHER 1.23 x 1.56 x .04

$5.99

$

In Stock, only 2 left!

0

56

Gravely 21543816

SEAL, LIP 17 x 40 x 7

$14.99

$

Usually ships in 4-12 days

0

57

Gravely 21543741

RING, RETAINING

$6.99

$

Usually ships in 4-12 days

0

60

BEARING, THRUST

BEARING, THRUST

$

$

Not available

64

ASS'Y, CYLINDER BLOCK, 16cc

ASS'Y, CYLINDER BLOCK, 16cc

$

$

Not available

65

BRG, THRUST PLASTIC CAGE

BRG, THRUST PLASTIC CAGE

$

$

Not available

69

ASS'Y, BLOCK 7 PISTON

ASS'Y, BLOCK 7 PISTON

$

$

Not available

70

WASHER .63 x 1.0 x .05

WASHER .63 x 1.0 x .05

$

$

Not available

71

RING, RETAINING_.625

RING, RETAINING_.625

$

$

Not available

72

GEAR, 13T, STEEL

GEAR, 13T, STEEL

$

$

Not available

73

SHAFT, MOTOR

SHAFT, MOTOR

$

$

Not available

74

WASHER .72 x 1.16 x .04

WASHER .72 x 1.16 x .04

$

$

Not available

80

Gravely 21543724

WASHER .5 x 1.0 x .03

$

$

Not available

81

GEAR, 46T

GEAR, 46T

$

$

Not available

82

GEAR, 11T, STEEL

GEAR, 11T, STEEL

$

$

Not available

83

JACK SHAFT (PIN)

JACK SHAFT (PIN)

Note: (PIN)

$

$

Not available

90

RING, RET 2.06 INT

RING, RET 2.06 INT

$

$

Not available

91

GEAR, 54T

GEAR, 54T

$

$

Not available

92

SPACER, .750 x 1.320 x .257

SPACER, .750 x 1.320 x .257

$

$

Not available

93

BEARING, BALL, .75 x 40 x 12

BEARING, BALL, .75 x 40 x 12

$

$

Not available

94

SHAFT, AXLE

SHAFT, AXLE

$

$

Not available

95

Gravely 8614000

BRG, BALL 25.4 x 52 x 15

$

$

Currently unavailable

96

Gravely 8614300

SEAL, LIP 1.000 x 2.049 x .375

$

$

Currently unavailable

97

KIT, HUB, 5 BOLT

KIT, HUB, 5 BOLT

$

$

Not available

HUB, TAPER 3.56, 5 BOLT

HUB, TAPER 3.56, 5 BOLT

$

$

Not available

STUD, 1/2-20 x 1.5 (RIB NECK)

STUD, 1/2-20 x 1.5 (RIB NECK)

Note: (RIB NECK)

$

$

Not available

99

8621100

NUT, HEX LOCK 3/4-16

$

$

Not available

100

PAWL, BRAKE

PAWL, BRAKE

$

$

Not available

101

SHAFT, BRAKE

SHAFT, BRAKE

$

$

Not available

102

KIT, HANDLE, ACTUATING

KIT, HANDLE, ACTUATING

$

$

Not available

103

CLIP, RETAINING

CLIP, RETAINING

$

$

Not available

105

SCREW, HEX FLANGE 1/4-20 x .625

SCREW, HEX FLANGE 1/4-20 x .625

$

$

Not available

106

GUARD, FILTER, RH

GUARD, FILTER, RH

$

$

Not available

121

PULLEY, 4.5 x 1.625

PULLEY, 4.5 x 1.625

$

$

Not available

122

Gravely 21543703

NUT,HEX JAM 1/2-20 W/ PATCH

$4.99

$

In Stock, only 4 left!

0

130

TUBE, CONNECTING

TUBE, CONNECTING

$

$

Not available

131

GEROTOR ASSEMBLY (1.9 cc/rev)

GEROTOR ASSEMBLY (1.9 cc/rev)

Note: (1.9 cc/rev)

$

$

Not available

132

Gravely 21544005

O-RING, -137, 0.103 x 2.050

$5.99

$

Usually ships in 4-12 days

0

133

COVER, CHARGE PUMP

COVER, CHARGE PUMP

$

$

Not available

134

SCREW, HEX FLANGE 1/4-20 x .625

SCREW, HEX FLANGE 1/4-20 x .625

$

$

Not available

140

SPACER .320 x 1.005 x .179

SPACER .320 x 1.005 x .179

$

$

Not available

141

ARM, NEUTRAL RIGHT

ARM, NEUTRAL RIGHT

$

$

Not available

142

SHCS 5/16-24 x 1 PATCH

SHCS 5/16-24 x 1 PATCH

$

$

Not available

146

Gravely 21543871

WASHER, .343 x 1.500 x .062

$6.49

$

Usually ships in 4-12 days

0

147

Gravely 21544001

SPRING, EXTNSN RTN-34LBS

$

$

Not available

157

Gravely 21544001

SEAL, LIP 8 x 12 x 3 VC

$

$

Not available

158

MAGNET, RING

MAGNET, RING

$

$

Not available

159

SPRING, TORSION CCW

SPRING, TORSION CCW

$

$

Not available

165

TUBE, AXLE 2.04

TUBE, AXLE 2.04

$

$

Not available

200

KIT, SEAL

KIT, SEAL

$

$

Not available

(10)

O-RING - 111 .103 x 424

O-RING - 111 .103 x 424

$

$

Not available

(26)

SEAL, PLUG 1.250 x .250

SEAL, PLUG 1.250 x .250

$

$

Not available

(30)

SEAL, LIP .375 x .75 x .25

SEAL, LIP .375 x .75 x .25

$

$

Not available

(31)

RING, RET .375 EXTRNL

RING, RET .375 EXTRNL

$

$

Not available

(33)

RING, RET .750 INTRNL

RING, RET .750 INTRNL

$

$

Not available

(35)

RING, RTNG .375 EXT

RING, RTNG .375 EXT

$

$

Not available

(41)

SEAL, LIP 12 x 32 x 7

SEAL, LIP 12 x 32 x 7

$

$

Not available

(46)

TWHCS 5/16-24 x 1.00 (PATCH)

TWHCS 5/16-24 x 1.00 (PATCH)

Note: (PATCH)

$

$

Not available

54

RING, RET. WIRE .561

RING, RET. WIRE .561

$

$

Not available

(56)

SEAL, LIP 17 x 40 x 7

SEAL, LIP 17 x 40 x 7

$

$

Not available

(57)

RING, RETAINING

RING, RETAINING

$

$

Not available

(71)

RING, RETAINING_.625

RING, RETAINING_.625

$

$

Not available

(90)

RING, RET 2.06 INT

RING, RET 2.06 INT

$

$

Not available

(96)

SEAL, LIP 1.000 x 2.049 x .375

SEAL, LIP 1.000 x 2.049 x .375

$

$

Not available

(103)

CLIP, RETAINING

CLIP, RETAINING

$

$

Not available

(130)

TUBE, CONNECTING

TUBE, CONNECTING

$

$

Not available

(132)

O-RING, -137, 0.103 x 2.050

O-RING, -137, 0.103 x 2.050

$

$

Not available

(157)

SEAL, LIP 8 x 12 x 3 VC

SEAL, LIP 8 x 12 x 3 VC

$

$

Not available

201

KIT, CENTER SECTION, RH, CHRG

KIT, CENTER SECTION, RH, CHRG

$

$

Not available

20

CENTER SECTION, RH, CHRG

CENTER SECTION, RH, CHRG

$

$

Not available

(22)

PLATE, BYPASS

PLATE, BYPASS

$

$

Not available

24

SHOCK VALVE ASSEMBLY 220 BAR

SHOCK VALVE ASSEMBLY 220 BAR

$

$

Not available

25

SHOCK VALVE ASSEMBLY 220 BAR

SHOCK VALVE ASSEMBLY 220 BAR

$

$

Not available

(27)

HFHCS 3/8-16 x 1.5 (PATCH)

HFHCS 3/8-16 x 1.5 (PATCH)

Note: (PATCH)

$

$

Not available

BEARING, JOURNAL .50 x .59 x .50

BEARING, JOURNAL .50 x .59 x .50

$

$

Not available

135

BALL 7/16

BALL 7/16

$

$

Not available

136

SPRING, RELIEF

SPRING, RELIEF

$

$

Not available

137

PIN, SPRING .125 x .875

PIN, SPRING .125 x .875

$

$

Not available

202

KIT, CHARGE RELIEF

KIT, CHARGE RELIEF

$

$

Not available

203

KIT, CHARGE PUMP

KIT, CHARGE PUMP

$

$

Not available

(131)

GEROTOR ASSEMBLY (1.9 cc/rev)

GEROTOR ASSEMBLY (1.9 cc/rev)

Note: (1.9 cc/rev)

$

$

Not available

(133)

COVER, CHARGE PUMP

COVER, CHARGE PUMP

$

$

Not available

(134)

HFHCS 1/4-20 x .75

HFHCS 1/4-20 x .75

$

$

Not available

209

HUB PULLER, 5 BOLT

HUB PULLER, 5 BOLT

$

$

Not available

210

Gravely 71978

KIT, INPUT SHAFT

$

$

Not available

52

SHAFT, INPUT

SHAFT, INPUT

$

$

Not available

53

BRG, BALL 17 x 40 x 12

BRG, BALL 17 x 40 x 12

$

$

Not available

54

RING, RET WIRE .561 ID

RING, RET WIRE .561 ID

$

$

Not available

211

Gravely 71597

KIT, RTN, CW

$

$

Not available

44

ARM, CONTROL, RH

ARM, CONTROL, RH

$

$

Not available

145

ASSEMBLY, RTN, CW

ASSEMBLY, RTN, CW

$

$

Not available
