991300 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Rear Discharge, Kawasaki (SN: 000101 - 002528) Deck & Mounting Arms Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Rear Discharge, Kawasaki

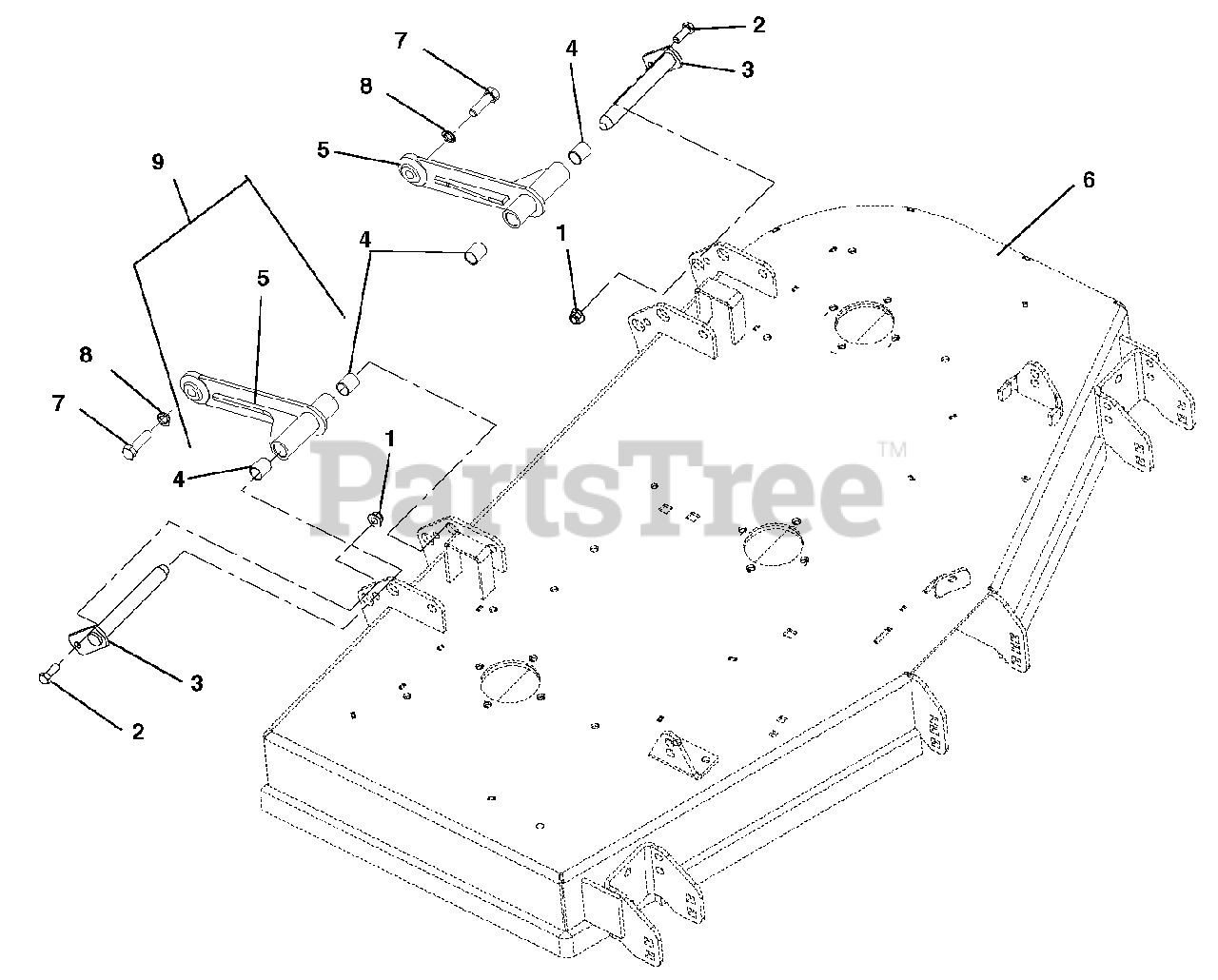

Deck & Mounting Arms Parts Diagram

  • Title
1

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 05948700

Bolt, Hex .38-16X1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 09238900

Weldment, Mower Mounting Pin

$61.99

$

In Stock, only 1 left!

0

4

Gravely 05435900

Bearing, .75 x .875 x 1.00

$5.99

$

In Stock, only 3 left!

0

5

Gravely 02989151

Deck Pusher Arm Weldment

$108.99

$

Usually ships in 4-12 days

0

6

Gravely 03974253

48" 100I Rear Discharge Deck

$

$

Not available

7

Gravely 05970600

Bolt, Hex .50-13 x 1.75 Grade 5
(Superseded to 05901939)

$3.99

$

In Stock, only 2 left!

0

8

Gravely 06307300

Washer, Locking .50 x .125 Regular
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

9

Gravely 03251800

Assembly, Mower Mount Arm (Includes items 4 and 5)

Note: (Includes items 4 and 5)

$125.99

$

In Stock, only 2 left!

0
