991288 (Pro-Turn ZX 52) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 000101 - 094999) Engine - Kawasaki FX730 Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

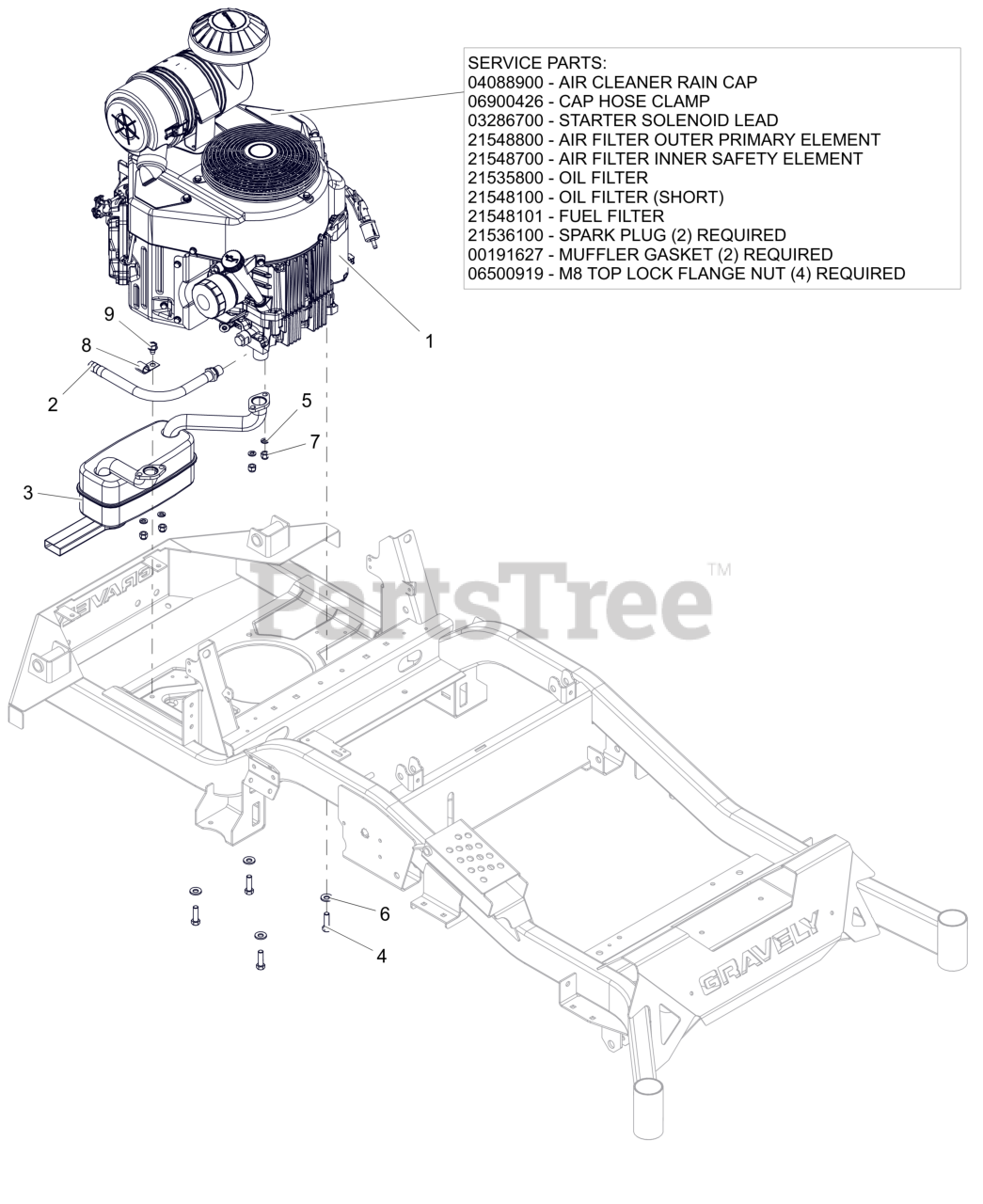

Engine - Kawasaki FX730 Parts Diagram

  • Title
1

Gravely 08200722

ENGINE, KAWASAKI FX730

$

$

Not available

1

Gravely 04088900

CAP, KAW 11065-7025

Note: Component Service Part

$59.99

$

Usually ships in 4-12 days

0

1

Gravely 06900426

CLAMP, HOSE #36 SS 1.813-2.75

Note: Component Service Part

$

$

Not available

1

Gravely 03286700

LEAD - STARTER SOLENOID

Note: Component Service Part

$9.49

$

Usually ships in 4-12 days

0

1

Gravely 21548800

FILTER, OUTER

Note: Component Service Part

$27.99

$

In Stock, Qty 20+

0

1

Gravely 21548700

FILTER, INNER - KAW

Note: Component Service Part

$27.99

$

In Stock, Qty 20+

0

1

Gravely 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

Note: Component Service Part

$18.99

$

In Stock, Qty 20+

0

1

Gravely 21548100

OIL FILTER, KAWASAKI FR
(Superseded to 49065-0721)

Note: Component Service Part

$18.99

$

In Stock, Qty 20+

0

1

Gravely 21548101

FUEL FILTER-KAWASAKI FR
(Superseded to 21573800)

Note: Component Service Part

$

$

Not available

1

Gravely 21536100

PLUG, SPARK

Note: Component Service Part

$3.99

$

In Stock, Qty 20+

0

1

Gravely 00191627

GASKET, MUFFLER S/O

Note: Component Service Part

$7.99

$

In Stock, only 2 left!

0

1

Gravely 06500919

NUT-LK-TOP-FLG M8 ZCC

Note: Component Service Part

$2.49

$

In Stock, Qty 18

0

2

Gravely 07001730

HOSE, OIL DRAIN

$21.99

$

Usually ships in 4-12 days

0

3

Gravely 04754300

MUFFLER, KAWASAKI

$96.99

$

In Stock, only 1 left!

0

4

Gravely 05901808

BLT, HEX .38-16X1.25 G5 ZCC NT

$1.99

$

In Stock, Qty 11

0

5

Gravely 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06400927

WASHER, 3/8" SPRING DISC

$3.49

$

In Stock, only 2 left!

0

7

Gravely 06500817

NUT,NYL M8-1.25 G8.8 ZCC

$1.49

$

Usually ships in 4-12 days

0

8

$2.49

$

Usually ships in 4-12 days

0

9

Gravely 07400126

SCR,TAP .375-16X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0
