991286 (Pro-Turn ZX 48) - Gravely Pro-Turn 48" Zero-Turn Mower, Kawasaki FX (SN: 095000 & Above) Seat Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kawasaki FX

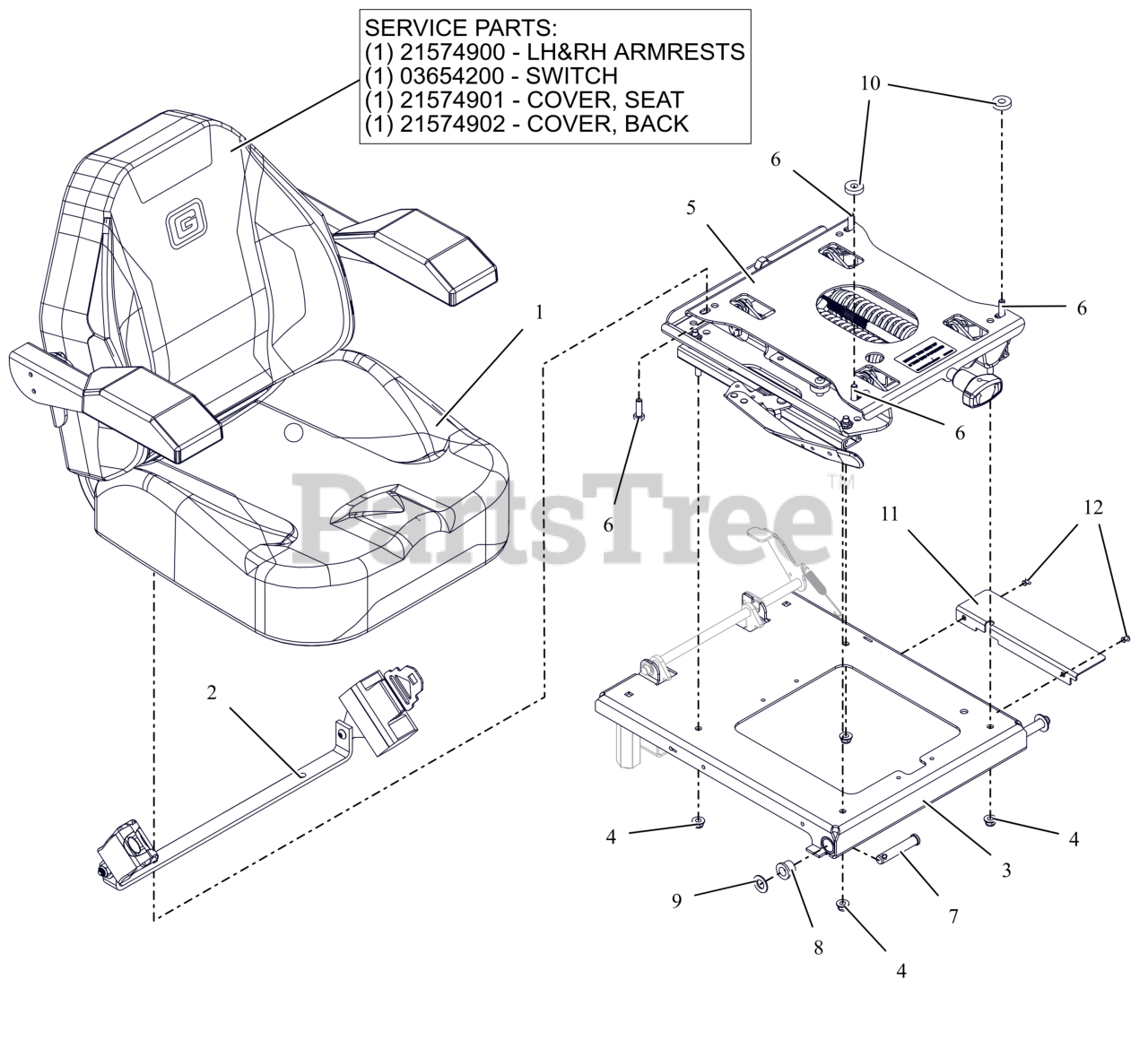

Seat Parts Diagram

  • Title

1

Gravely 09190900

SEAT, HD

$737.99

$

Usually ships in 4-12 days

0

1

Gravely 21574900

LH&RH ARMRESTS

Note: Service Part Component

$122.99

$

Usually ships in 4-12 days

0

1

Gravely 03654200

SWITCH- SEAT

Note: Service Part Component

$

$

Not available

1

Gravely 21574901

COVER, SEAT - HD

Note: Service Part Component

$

$

Not available

1

Gravely 21574902

SEAT COVER, BACK HD

Note: Service Part Component

$142.99

$

Usually ships in 4-12 days

0

2

Gravely 59110000

KIT-SEAT BELT REPLACE-05007300

$140.99

$

Usually ships in 4-12 days

0

3

Gravely 05255751

WLDMT, SEAT PLATE (BLACK)

$129.99

$

Usually ships in 4-12 days

0

4

Gravely 06500809

NUT,NYL-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

5

Gravely 09380900

SUSPENSION, ULTRA LOW W/ SLIDES

$517.99

$

Usually ships in 4-12 days

0

6

Gravely 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06800202

PIN, SLIC-.500X42.70X2.31 -ZC

$7.99

$

Usually ships in 4-12 days

0

8

Gravely 05500901

BSHG, FLG .516X.750X.625X.937

$5.99

$

In Stock, only 2 left!

0

9

Gravely 06401115

WSHR, FLT .531X1.00X.063 ZCC

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06401125

WSHR, FLT .390X1.00X.250 ZCC

$2.99

$

In Stock, only 2 left!

0

11

Gravely 05108451

GUARD, SEAT PLATE (BLACK)

$11.99

$

Usually ships in 4-12 days

0

12

Gravely 06800120

RIVET, .1875 AL/AL .126-.250

$

$

Not available
