991286 (Pro-Turn ZX 48) - Gravely Pro-Turn 48" Zero-Turn Mower, Kawasaki FX (SN: 095000 & Above) ROPS Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kawasaki FX

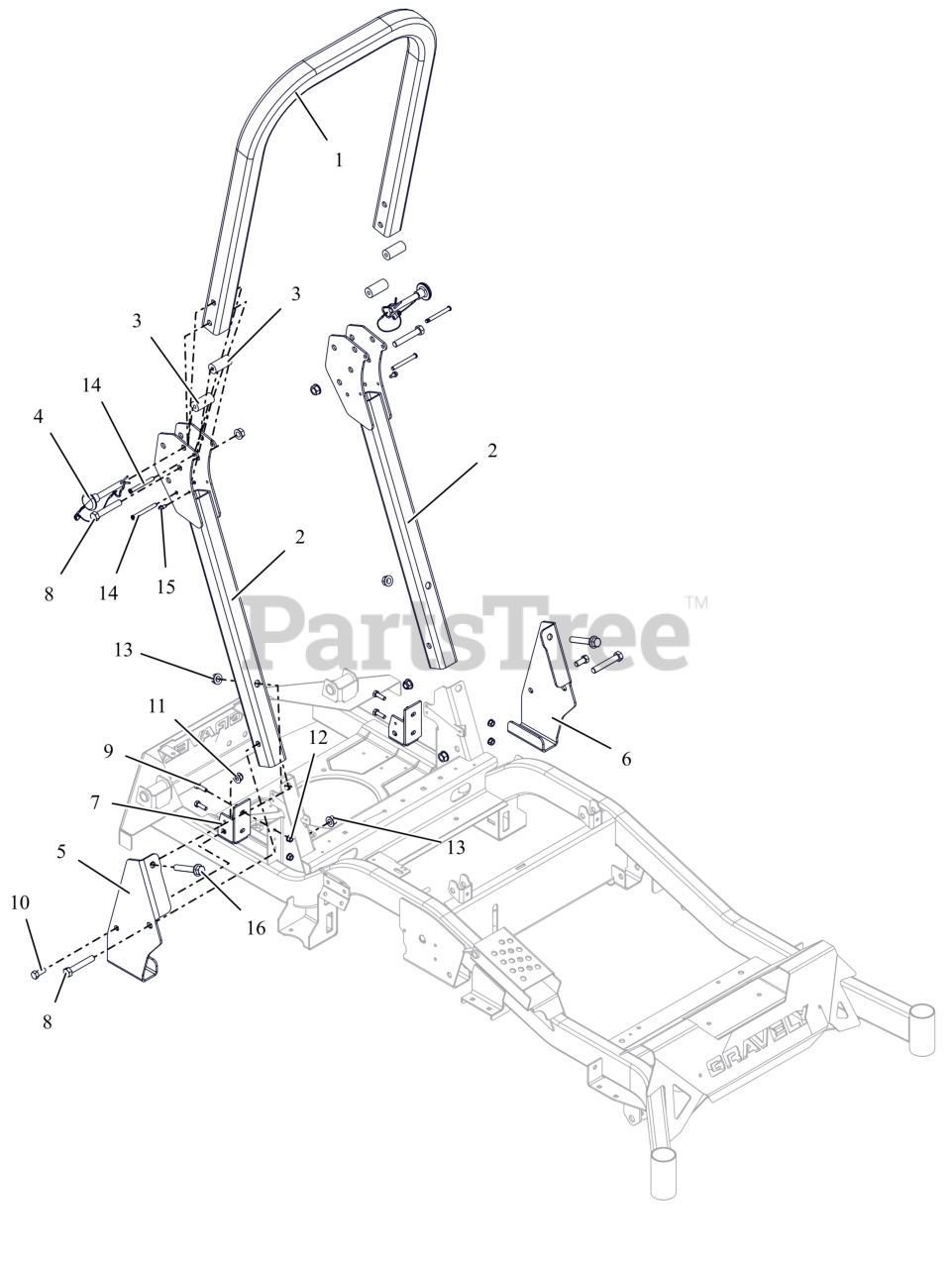

ROPS Parts Diagram

  • Title

1

Gravely 05022300

HOOP, PT Z & ZX ROPS

$238.99

$

Usually ships in 4-12 days

0

2

Gravely 59114400

ROPS,PROTURN Z REPLACEMENT-TALL

$678.99

$

Usually ships in 4-12 days

0

3

Gravely 04884200

BUMPER, ROPS ANTI-VIBRATION

$

$

Not available

4

Gravely 04898200

PIN, ROPS W/LANYARD

$19.99

$

Usually ships in 4-12 days

0

5

Gravely 05116451

BRKT, ROPS SUPPORT - RH

$38.99

$

Usually ships in 4-12 days

0

6

Gravely 05116551

BRKT, ROPS SUPPORT -LH

$38.99

$

Usually ships in 4-12 days

0

7

Gravely 05248051

BRKT, ROPS SUPPORT

$

$

Not available

8

Gravely 05901737

BLT, HEX .50-13X3.00 G5 ZCC

$4.99

$

In Stock, only 1 left!

0

9

Gravely 05901802

BLT, HEX .31-18X1.00 G8 ZCC

$1.49

$

In Stock, Qty 6

0

10

Gravely 05901913

BLT, HEX 0.4375-14X1 GR5 ZCC

$2.99

$

In Stock, only 1 left!

0

11

Gravely 06500811

NUT,NYL-FLG .44-14 GF ZCC

$5.99

$

In Stock, only 1 left!

0

12

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

14

Gravely 07001826

PIN, SLIC .312 X 2.570

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

16

Gravely 05902211

BLT- HEX-FLG .50-13X3.00 G5 ZC

$3.99

$

Usually ships in 4-12 days

0
