991286 (Pro-Turn ZX 48) - Gravely Pro-Turn 48" Zero-Turn Mower, Kawasaki FX (SN: 095000 & Above) Electrical Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kawasaki FX

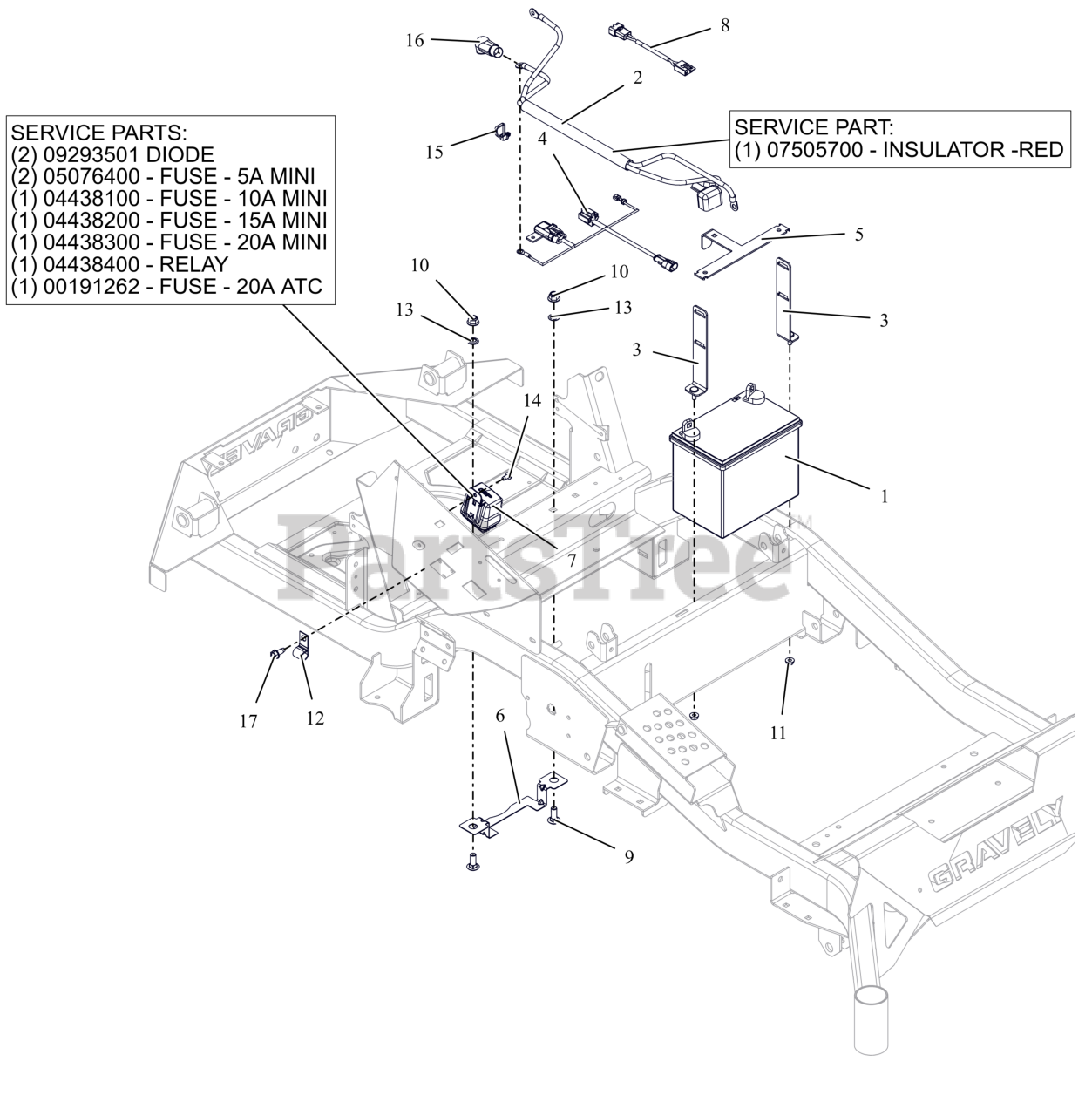

Electrical Parts Diagram

  • Title
1

Gravely 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

2

Gravely 05074100

HARNESS, BATTERY HD

$56.99

$

Usually ships in 4-12 days

0

2

Gravely 07505700

INSULATOR

Note: Component Service Part

$9.49

$

Usually ships in 4-12 days

0

3

Gravely 05107451

WMT,BATTERY MOUNT HOLD DOWN
(Superseded to 05107400)

$11.99

$

Usually ships in 4-12 days

0

4

Gravely 05189800

HARNESS, STARTER ADAPTER

$56.99

$

Usually ships in 4-12 days

0

5

Gravely 05031551

BRKT, BATTERY TIE DOWN
(Superseded to 05031500)

$12.99

$

In Stock, only 1 left!

0

6

Gravely 05111451

GUARD, ELECTRICAL HARNESS

$10.99

$

In Stock, only 1 left!

0

7

Gravely 05155300

HARNESS, WIRE

$196.99

$

Usually ships in 4-12 days

0

7

Gravely 09293501

DIODE, CONNECTOR SHELL

Note: Component Service Part

$11.99

$

In Stock, only 3 left!

0

7

Gravely 05076400

FUSE, 5 AMP MINI-ATC

Note: Component Service Part

$

$

Not available

7

Gravely 04438100

FUSE,10 AMP MINI-ATC

Note: Component Service Part

$4.99

$

Usually ships in 4-12 days

0

7

Gravely 04438200

FUSE,15 AMP MINI-ATC

Note: Component Service Part

$4.99

$

Usually ships in 4-12 days

0

7

Gravely 04438300

FUSE,20 AMP MINI ATC

Note: Component Service Part

$

$

Not available

7

Gravely 04438400

RELAY,MICRO5 TERML W/RESISTOR

Note: Component Service Part

$19.99

$

In Stock, only 1 left!

0

7

Gravely 00191262

FUSE, 20 AMP BLADE S/O

Note: Component Service Part

$14.99

$

In Stock, only 1 left!

0

8

Gravely 09383900

HARNESS- EXTENSION

$34.99

$

Usually ships in 4-12 days

0

9

Gravely 06200313

BLT, RHSN .38-16X1.00 G5 ZCC

$2.49

$

In Stock, Qty 10

0

10

Gravely 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$0.99

$

In Stock, Qty 20+

0

12

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 07009900

NUT-PUSH .38 DIA. PAL ZINC

$1.99

$

In Stock, only 1 left!

0

14

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

15

Gravely 07500040

CABLE TIE W/ TREE (.25 HOLE)

$3.99

$

In Stock, only 1 left!

0

16

Gravely 07500401

BOOT, .65ID POS

$3.49

$

Usually ships in 4-12 days

0

17

Gravely 07400127

SCR,TAP .312-18X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 11

0
