991286 (Pro-Turn ZX 48) - Gravely Pro-Turn 48" Zero-Turn Mower, Kawasaki FX (SN: 000101 - 094999) Front Caster Wheels Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kawasaki FX

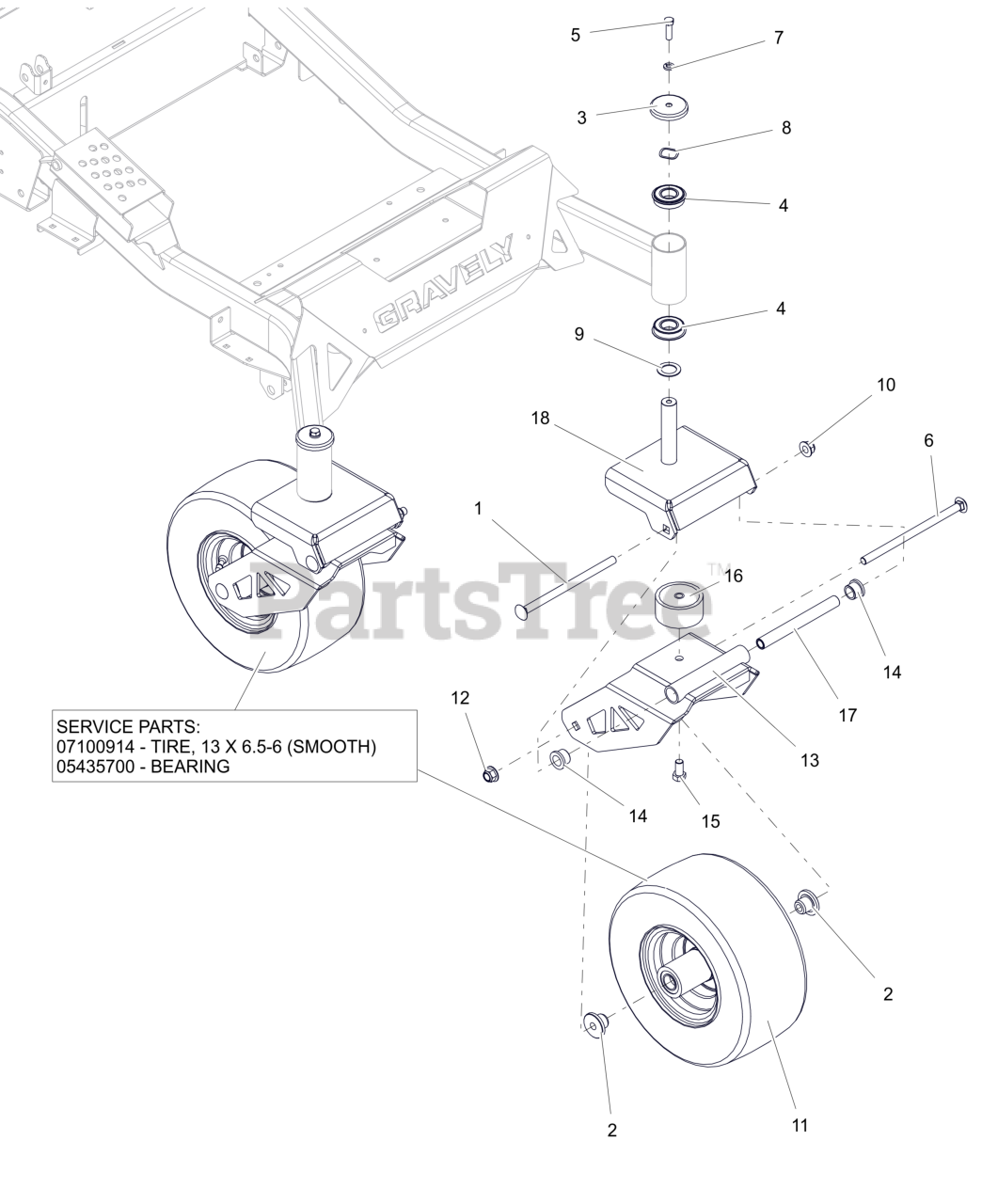

Front Caster Wheels Parts Diagram

  • Title
1

Gravely 06200321

BLT, RHSN .50-13X8.50 G5 ZCC

$6.99

$

In Stock, Qty 20+

0

2

Gravely 00675300

SPACER, FRONT WHEEL

$7.99

$

In Stock, Qty 20+

0

3

Gravely 05198400

SHIELD, AXLE BEARING

$6.99

$

Usually ships in 4-12 days

0

4

Gravely 05400728

BEARING, BALL -2.000 OD X 1.000 ID X .5625 W/RING

$12.99

$

In Stock, Qty 6

0

5

Gravely 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06200322

BTL,RHSN .500-13 X 9 G5 ZCC
(Superseded to 06200510)

$7.99

$

In Stock, only 2 left!

0

7

Gravely 06300120

WSHR, LK-HVY .375X.115 ZCC

$3.49

$

In Stock, only 1 left!

0

8

Gravely 06401030

WSHR-WAVE 1.0X1.25X.028 .145FH

$5.99

$

In Stock, Qty 20+

0

9

Gravely 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$2.99

$

In Stock, Qty 20+

0

10

Gravely 06500810

NUT,NYL-FLG .50-13 GF ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 07101226

ASM, WHL/TIRE 13X6.50-6

$125.99

$

In Stock, only 1 left!

0

11

Gravely 07100914

TIRE, 13X6.50-6 SMOOTH

Note: Component Service Part

$85.99

$

Usually ships in 4-12 days

0

11

Gravely 05435700

BRG, 25MM ID X 52MM OD X 15MM

Note: Component Service Part

$22.99

$

In Stock, Qty 19

0

11

Gravely 07101508

TIRE TUBE 13X6.5-6

Note: Component Service Part

$

$

Not available

12

Gravely 06500810

NUT,NYL-FLG .50-13 GF ZCC

$1.49

$

In Stock, Qty 20+

0

13

Gravely 09360553

WLDMT, LOWER SUSPENSION (RED)

$129.99

$

Usually ships in 4-12 days

0

14

Gravely 03985500

BUSHING, FLANGE .75X.75X1.0

$5.99

$

In Stock, only 3 left!

0

15

Gravely 05901715

BLT, HEX .50-13X1.00 G5 ZCC

$2.49

$

In Stock, Qty 7

0

16

Gravely 09361200

SPCR, RUBBER SUSPENSION

$52.99

$

Usually ships in 4-12 days

0

17

Gravely 09361100

ROD, FORK PIVOT

$

$

Not available

18

Gravely 09498253

WLDMT- UPPER SUSPENSION FORK

$79.99

$

Usually ships in 4-12 days

0
