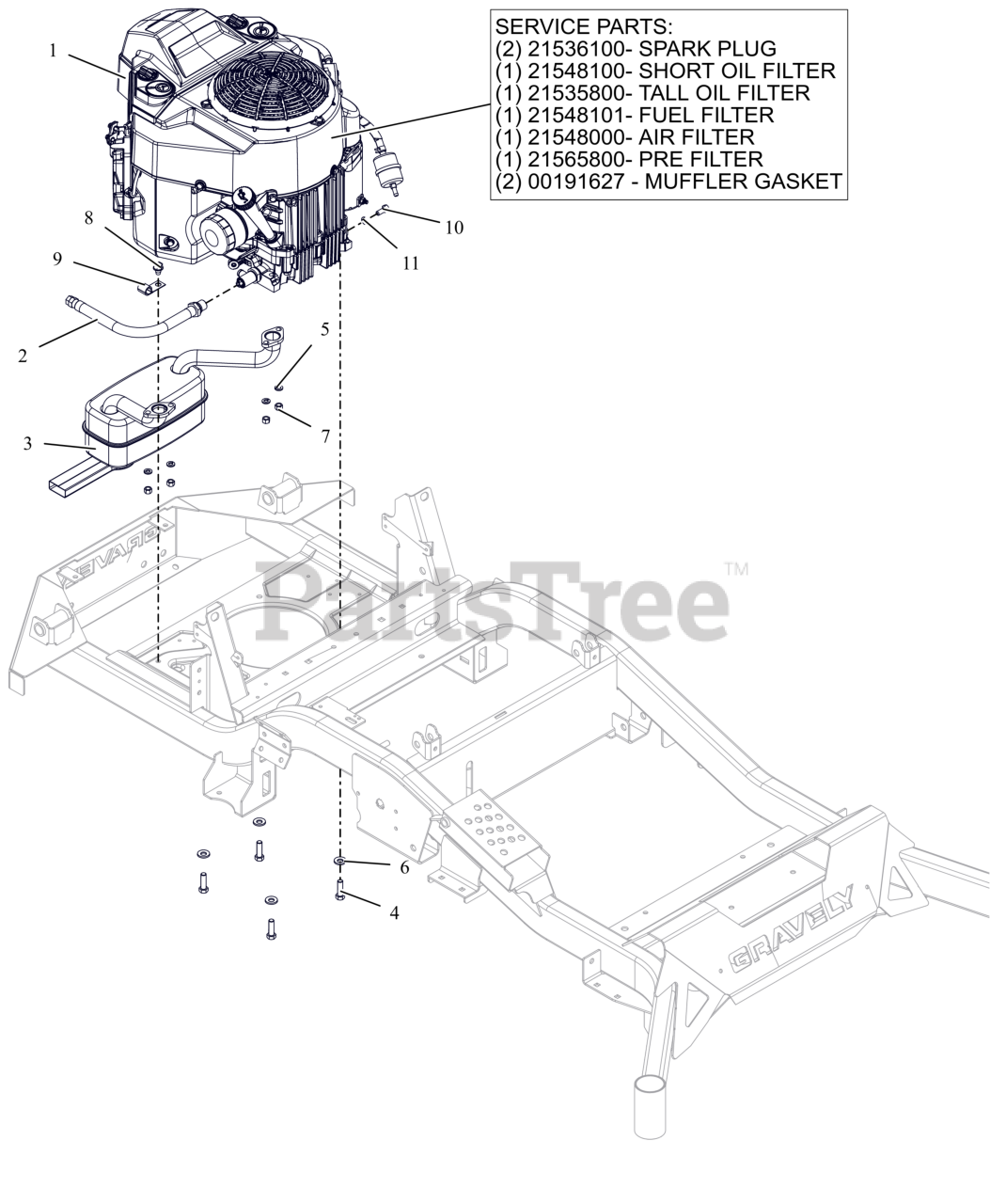

991285 (Pro-Turn Z 60) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki FS (SN: 000101 & Above) Engine - Kawasaki FS730V Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki FS

Engine - Kawasaki FS730V Parts Diagram

1

Gravely 08201515

ENGINE, KAWASAKI FS730V

$

$

Currently unavailable

1

Gravely 21536100

PLUG, SPARK

Note: Component Service Part

$3.99

$

In Stock, Qty 20+

0

1

Gravely 21548100

OIL FILTER, KAWASAKI FR
(Superseded to 49065-0721)

Note: Component Service Part

$18.99

$

In Stock, Qty 20+

0

1

Gravely 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

Note: Component Service Part

$18.99

$

In Stock, Qty 20+

0

1

Gravely 21548101

FUEL FILTER-KAWASAKI FR
(Superseded to 21573800)

Note: Component Service Part

$14.99

$

Usually ships in 4-12 days

0

1

Gravely 21548000

AIR FILTER, KAWASAKI FR

Note: Component Service Part

$17.99

$

In Stock, Qty 20+

0

1

Gravely 21565800

PRE FILTER, KAWASAKI FS

Note: Component Service Part

$8.99

$

Usually ships in 4-12 days

0

1

Gravely 00191627

GASKET, MUFFLER S/O

Note: Component Service Part

$7.99

$

In Stock, Qty 20+

0

2

Gravely 07001730

HOSE, OIL DRAIN

$21.99

$

Usually ships in 4-12 days

0

3

Gravely 04754300

MUFFLER, KAWASAKI

$96.99

$

In Stock, Qty 15

0

4

Gravely 05901808

BLT, HEX .38-16X1.25 G5 ZCC NT

$1.99

$

In Stock, Qty 5

0

5

Gravely 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06400927

WASHER, 3/8" SPRING DISC

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 06500919

NUT-LK-TOP-FLG M8 ZCC

$2.49

$

In Stock, Qty 12

0

8

Gravely 07400126

SCR,TAP .375-16X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 05901628

BLT, HEX M8-1.25X20 G8.8 ZCC

$1.49

$

Usually ships in 4-12 days

0

11

Gravely 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 20+

0
