991282 (Pro-Turn Z 52) - Gravely Pro-Turn 52" Zero-Turn Mower, Gravely 764 Pro (SN: 000101 & Above) Deck, Belts, Blades and Spindles - 52" Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Gravely 764 Pro

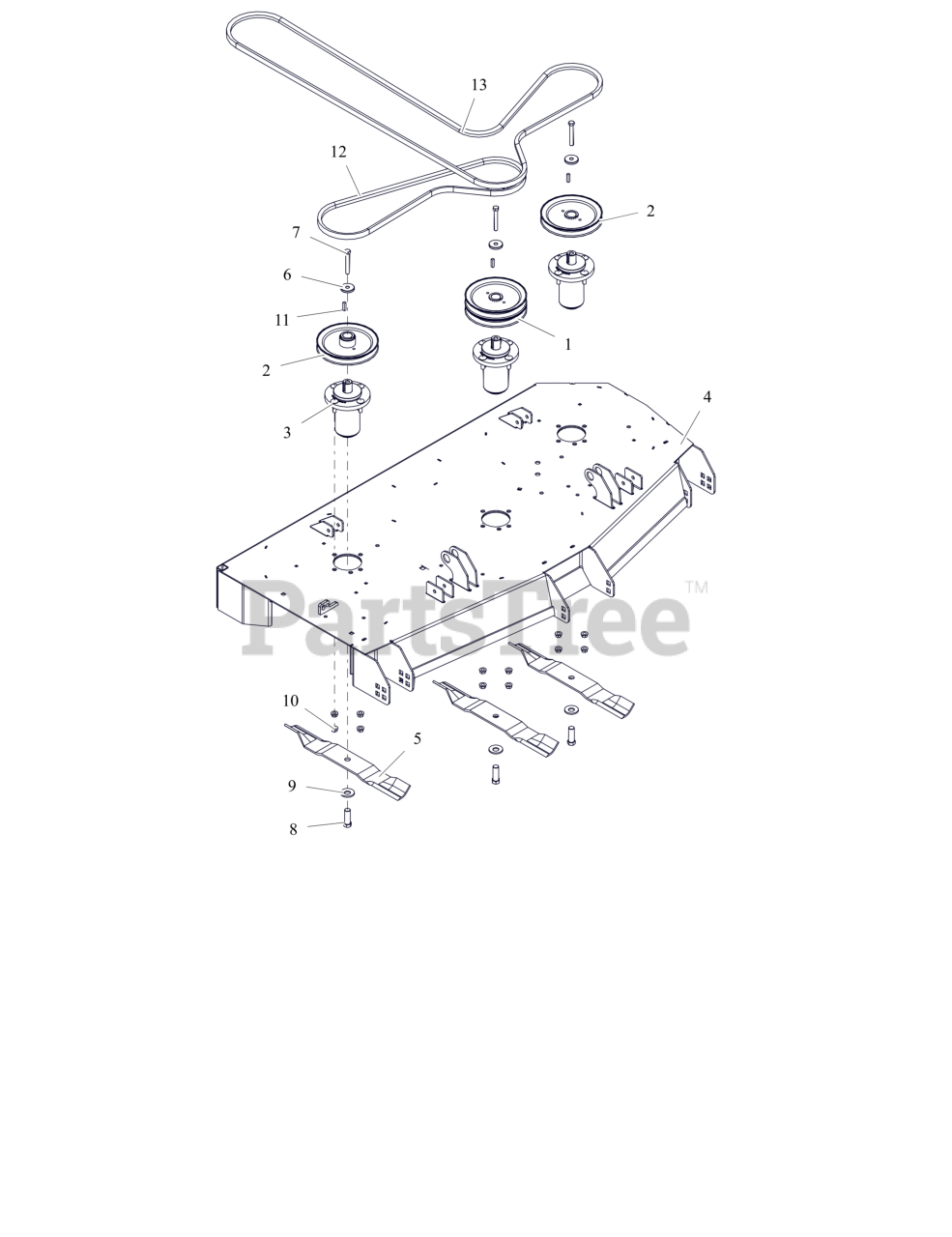

Deck, Belts, Blades and Spindles - 52" Parts Diagram

  • Title

1

Gravely 07328800

PULLEY, DOUBLE 1.000 ID X 6.750 OD
(Superseded to 59211500)

$91.99

$

In Stock, Qty 20+

0

2

Gravely 07328900

PULLEY, V-1" ID X 6.75 OD
(Superseded to 59211600)

$82.99

$

In Stock, Qty 8

0

3

Gravely 58810800

ASM, MAINT FREE ALUM SPINDLE

$239.99

$

In Stock, Qty 20+

0

4

Gravely 59118200

KIT, DECK - 52 W/DECALS - XF3

$

$

Not available

5

Gravely 03253800

BLADE, 18"

$28.99

$

In Stock, Qty 20+

0

6

Gravely 04530500

RETAINER, SHEAVE

$7.99

$

In Stock, Qty 20+

0

7

Gravely 05901813

BLT, HEX .38-16X2.75 G8 ZCC

$1.49

$

In Stock, Qty 20+

0

8

Gravely 05901822

BLT, HEX .62-18X1.75 G8 ZCC

$3.49

$

In Stock, Qty 20+

0

9

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, Qty 9

0

10

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 16

0

12

Gravely 07200806

V-BELT, B-COGGED

$40.99

$

In Stock, only 1 left!

0

13

Gravely 07200816

V-BELT, HB SECTION

$119.99

$

In Stock, Qty 10

0
