991274 (ZT HD 48) - Gravely 48" Zero-Turn Mower, Kohler 7000 Pro (SN: 095000 & Above) Clutch Parts Diagram
48" Zero-Turn Mower, Kohler 7000 Pro

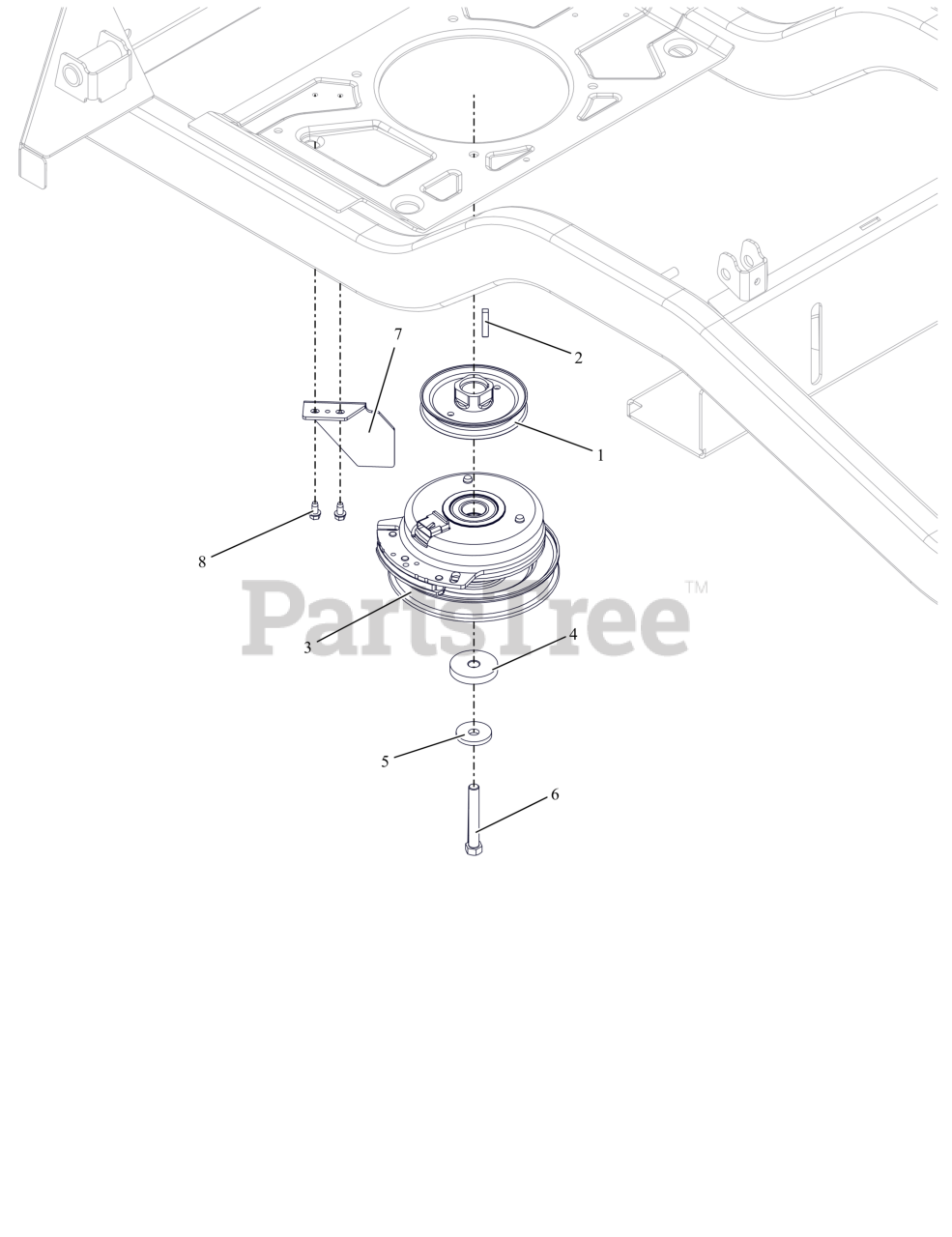

Clutch Parts Diagram
Gravely 07346400
WLDMT-PULLEY-4.50ODX1.003
$43.99
$
Usually ships in 4-12 days
Gravely 06603400
KEY-SQ .25 X 1.25 X .25 SAE
$3.99
$
Usually ships in 4-12 days
Gravely 09444200
CLUTCH- WARNER 1.00 HD-PTZ
$245.99
$
Usually ships in 4-12 days
Gravely 05501240
SPACER, .474/.459X2.00X.350
$14.99
$
In Stock, only 1 left!
Gravely 06400936
WASHER, 7/16" SPRING DISK
$11.99
$
In Stock, only 1 left!
Gravely 05901819
BLT, HEX 0.4375-20X3 G8 ZCC NT
$5.99
$
In Stock, only 1 left!
$
$
Not available
Gravely 07400122
SCR-TAP .25-20X.50 HWH ZCC
$0.99
$
In Stock, Qty 20+
