991274 (ZT HD 48) - Gravely 48" Zero-Turn Mower, Kohler 7000 Pro (SN: 000101 - 094999) Electrical Parts Diagram

48" Zero-Turn Mower, Kohler 7000 Pro

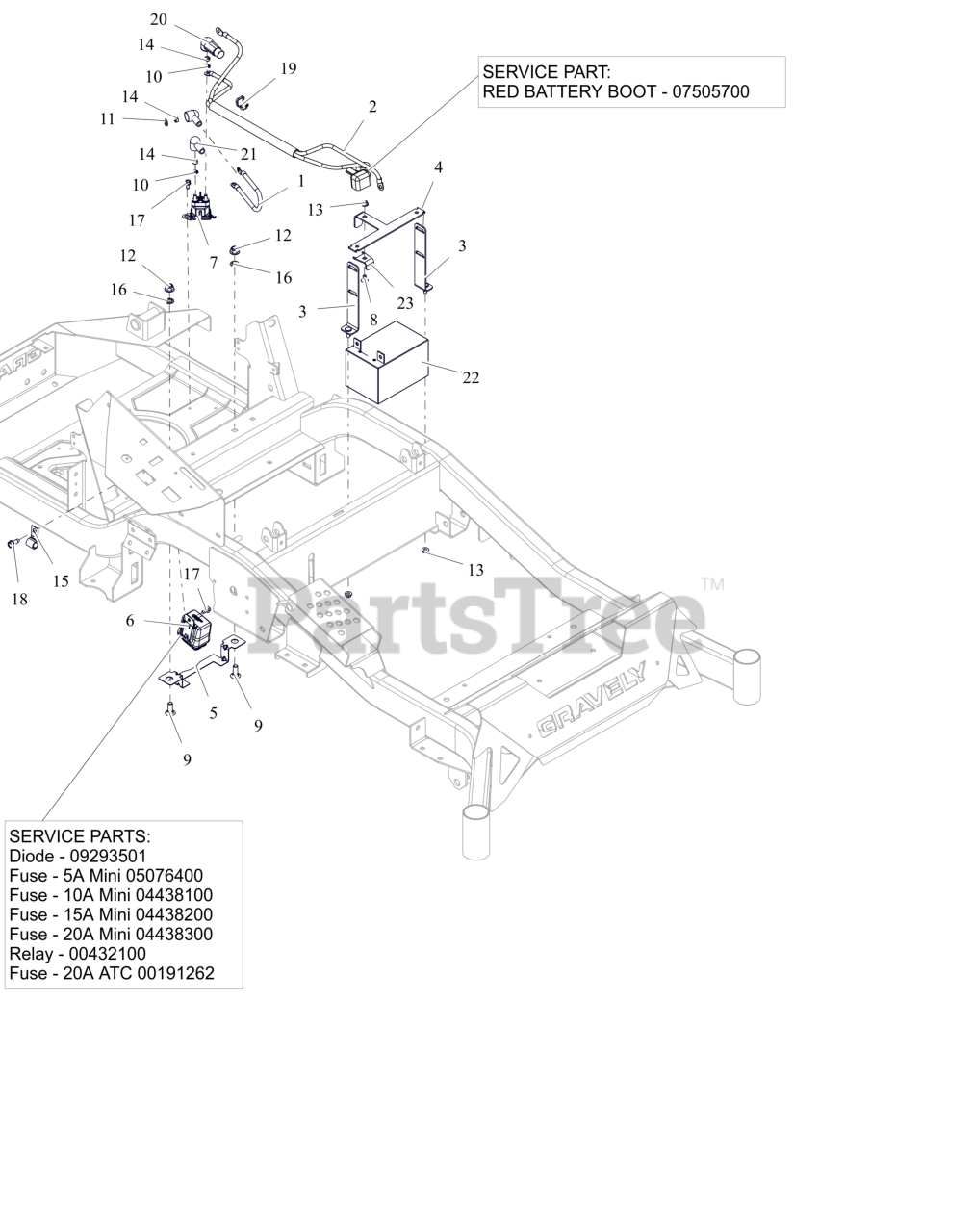

Electrical Parts Diagram

  • Title

1

Gravely 04783300

CABLE, POS W/(2)1/4 RING 9.0LG

$5.99

$

In Stock, only 1 left!

0

2

Gravely 05074100

HARNESS, BATTERY HD

$56.99

$

Usually ships in 4-12 days

0

2

Gravely 07505700

INSULATOR

Note: Component Service Part

$9.49

$

Usually ships in 4-12 days

0

3

Gravely 05107451

WMT,BATTERY MOUNT HOLD DOWN
(Superseded to 05107400)

$11.99

$

Usually ships in 4-12 days

0

4

Gravely 05031551

BRKT, BATTERY TIE DOWN
(Superseded to 05031500)

$12.99

$

In Stock, only 1 left!

0

5

Gravely 05111451

GUARD, ELECTRICAL HARNESS

$10.99

$

In Stock, only 1 left!

0

6

Gravely 05155300

HARNESS, WIRE

$196.99

$

Usually ships in 4-12 days

0

6

Gravely 09293501

DIODE, CONNECTOR SHELL

$11.99

$

In Stock, only 3 left!

0

6

Gravely 05076400

FUSE, 5 AMP MINI-ATC

Note: Component Service Part

$

$

Not available

6

Gravely 04438100

FUSE,10 AMP MINI-ATC

Note: Component Service Part

$4.99

$

Usually ships in 4-12 days

0

6

Gravely 04438200

FUSE,15 AMP MINI-ATC

Note: Component Service Part

$4.99

$

Usually ships in 4-12 days

0

6

Gravely 04438300

FUSE,20 AMP MINI ATC

Note: Component Service Part

$

$

Not available

7

Gravely 04438400

RELAY,MICRO5 TERML W/RESISTOR

Note: Component Service Part (Image shows incorrect part)

$19.99

$

In Stock, only 1 left!

0

6

Gravely 00191262

FUSE, 20 AMP BLADE S/O

Note: Component Service Part

$14.99

$

In Stock, only 1 left!

0

7

Gravely 05167200

SOLENOID, STARTER (SEALED)

$45.99

$

In Stock, Qty 17

0

8

Gravely 06200306

BLT, RHSN .25-20X.500 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06200313

BLT, RHSN .38-16X1.00 G5 ZCC

$2.49

$

In Stock, Qty 10

0

10

Gravely 06300118

WSHR,LK-EXT.262X.502X.026 ZCC

$0.99

$

Usually ships in 4-12 days

0

11

Gravely 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06500925

NUT-STD M6-1.0 ZCC

$

$

Not available

15

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 07009900

NUT-PUSH .38 DIA. PAL ZINC

$1.99

$

In Stock, only 1 left!

0

17

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

18

Gravely 07400127

SCR,TAP .312-18X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 11

0

19

Gravely 07500040

CABLE TIE W/ TREE (.25 HOLE)

$3.99

$

In Stock, only 1 left!

0

20

Gravely 07500401

BOOT, .65ID POS

$3.49

$

Usually ships in 4-12 days

0

21

Gravely 07533200

BOOT, EYELET TERMINAL

$3.49

$

In Stock, only 3 left!

0

22

Gravely 09425500

BATTERY, 12V 12A -190CCA

$122.99

$

In Stock, only 3 left!

0

23

Gravely 09425700

BRKT, BATTERY HOLD

$

$

Not available
