991272 (ZT HD 60) - Gravely 60" Zero-Turn Mower, Kawasaki FR (SN: 095000 & Above) Engine - Kawasaki FR730V Parts Diagram

60" Zero-Turn Mower, Kawasaki FR

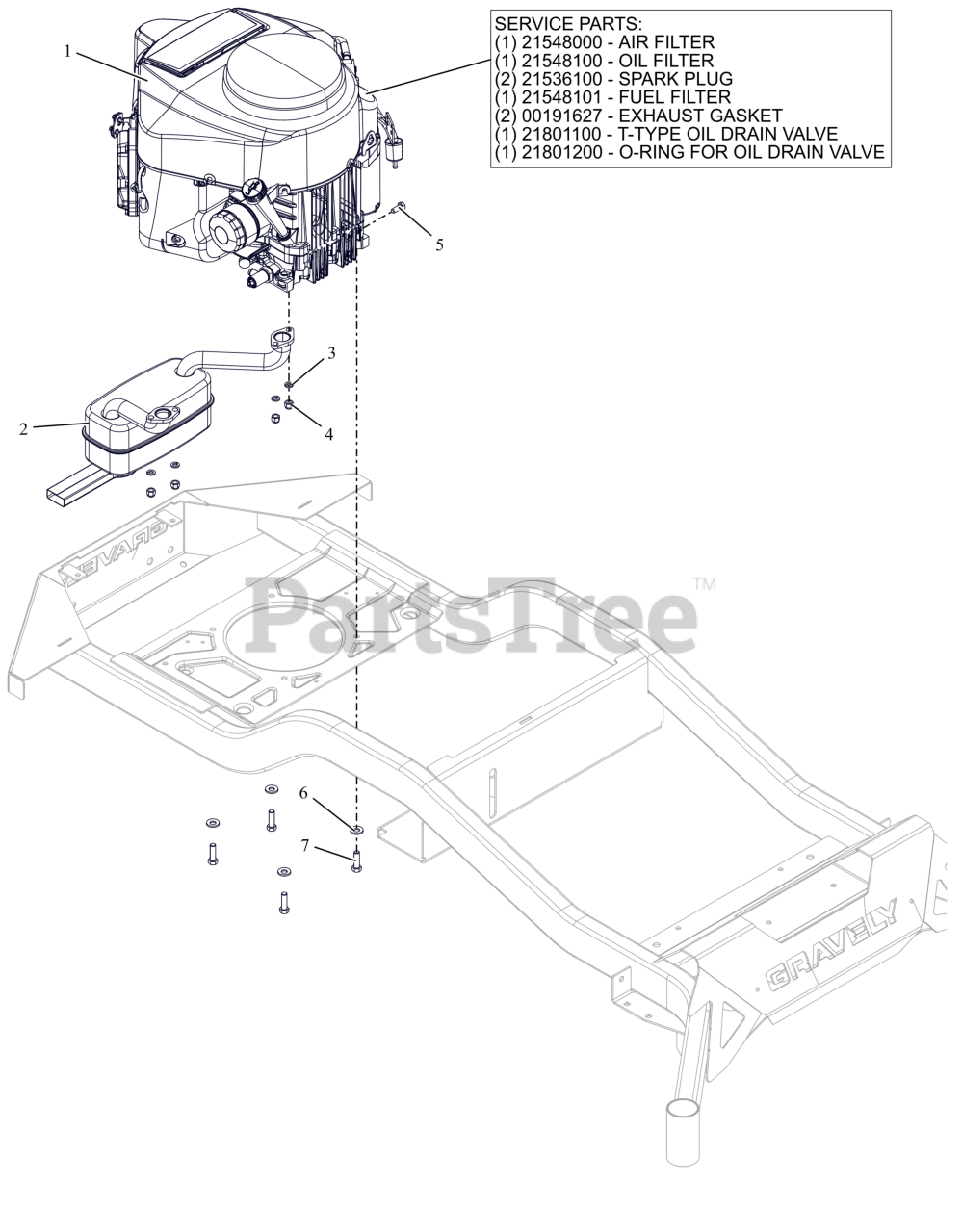

Engine - Kawasaki FR730V Parts Diagram

  • Title

1

Gravely 08200718

ENGINE, KAWASAKI FR730 24HP

$

$

Not available

1

Gravely 21548000

AIR FILTER, KAWASAKI FR

Note: Component Service Part

$17.99

$

In Stock, Qty 20+

0

1

Gravely 21548100

OIL FILTER, KAWASAKI FR
(Superseded to 49065-0721)

Note: Component Service Part

$18.99

$

In Stock, Qty 20+

0

1

Gravely 21536100

PLUG, SPARK

Note: Component Service Part

$3.49

$

In Stock, only 1 left!

0

1

Gravely 21548101

FUEL FILTER-KAWASAKI FR
(Superseded to 21573800)

Note: Component Service Part

$

$

Not available

1

Gravely 00191627

GASKET, MUFFLER S/O

Note: Component Service Part

$7.99

$

In Stock, only 2 left!

0

1

Gravely 21801100

VALVE- T-TYPE OIL DRAIN

Note: Component Service Part

$

$

Not available

1

Gravely 21801200

O-RING- OIL DRAIN VALVE

Note: Component Service Part

$5.99

$

Usually ships in 4-12 days

0

2

Gravely 04754300

MUFFLER, KAWASAKI

$96.99

$

In Stock, only 1 left!

0

3

Gravely 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06500817

NUT,NYL M8-1.25 G8.8 ZCC

$1.49

$

Usually ships in 4-12 days

0

5

Gravely 05901628

BLT, HEX M8-1.25X20 G8.8 ZCC

$

$

Not available

6

Gravely 06400927

WASHER, 3/8" SPRING DISC

$3.49

$

In Stock, only 2 left!

0

7

Gravely 05901808

BLT, HEX .38-16X1.25 G5 ZCC NT

$1.99

$

In Stock, Qty 11

0
