991271 (ZT HD Stealth 52) - Gravely 52" Zero-Turn Mower, Kawasaki FR (SN: 000101 & Above) Frame - 52" Parts Diagram

52" Zero-Turn Mower, Kawasaki FR

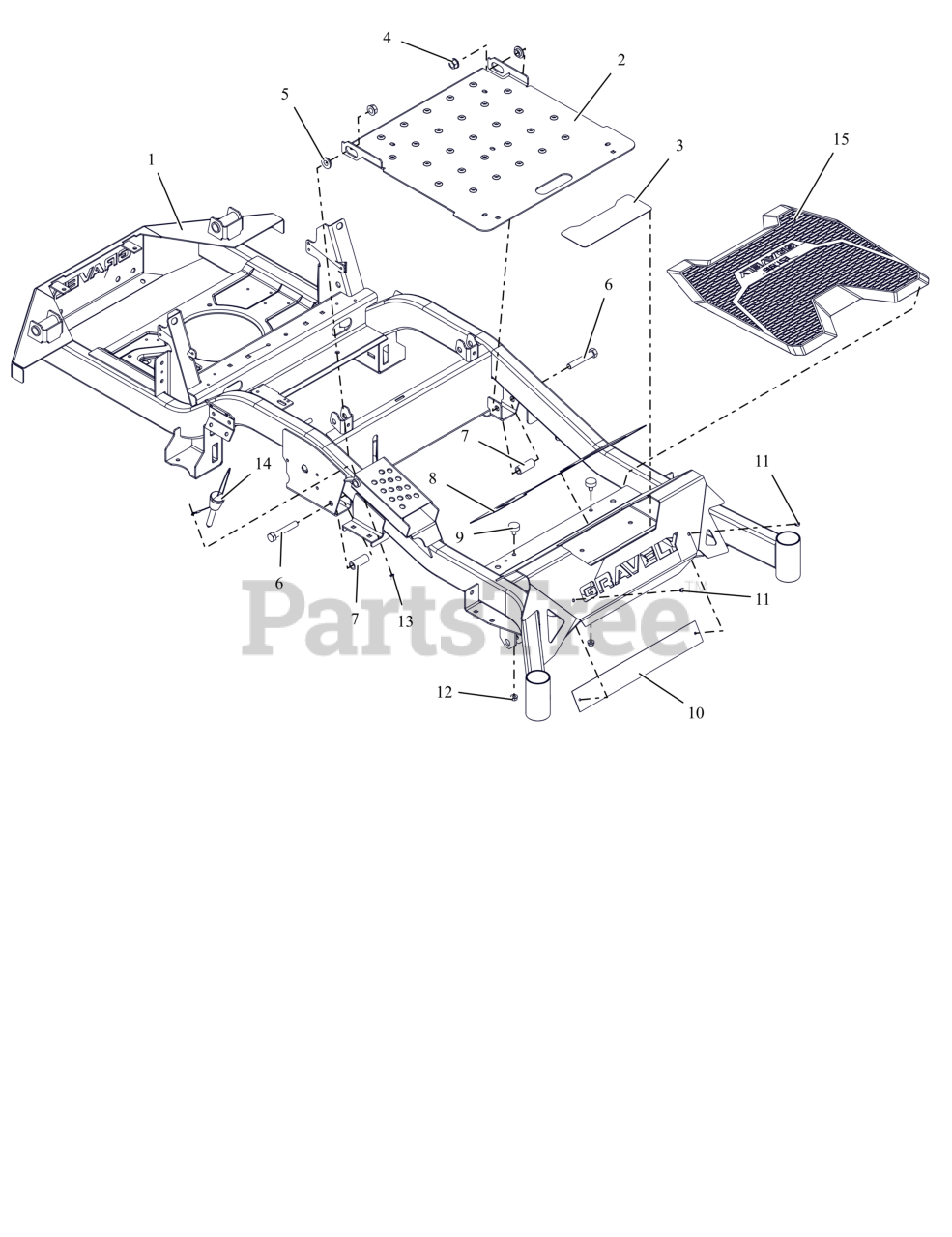

Frame - 52" Parts Diagram

  • Title

1

Gravely 59119600

HD 52 STEALTH FRAME W/DECALS

$1465.99

$

Usually ships in 4-12 days

0

2

Gravely 59119500

KIT,ACCESS PANEL W/DECALS-BLK

$

$

Not available

3

Gravely 05109100

GRIP, STEP

$

$

Not available

4

Gravely 06500907

NUT-LK-TOP-FLG .500-13 GF ZCC

$1.49

$

In Stock, Qty 20+

0

5

Gravely 03989100

BSHG-FLG .515X.750X.310X1.120

$3.49

$

In Stock, Qty 20+

0

6

Gravely 05901737

BLT, HEX .50-13X3.00 G5 ZCC

$4.99

$

In Stock, only 1 left!

0

7

Gravely 05501319

SPACER, .515X.75X1.83

$4.99

$

Usually ships in 4-12 days

0

8

Gravely 05104800

GRIP, FRONT

$18.99

$

Usually ships in 4-12 days

0

9

Gravely 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0

10

Gravely 04718453

PLATE- BACK XL FOOT-REST

$12.99

$

Usually ships in 4-12 days

0

11

Gravely 06800120

RIVET, .1875 AL/AL .126-.250

$

$

Not available

12

Gravely 06500815

NUT,SPNLK-FLG .31-18 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

13

Gravely 07001918

POST, & SCREW, PUSH LOCK .25 X .25

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 06800218

PIN- MAGNETIC .50X2.70

$22.99

$

Usually ships in 4-12 days

0

15

Gravely 09691100

FLOOR MAT- RUBBER HD

$90.99

$

Usually ships in 4-12 days

0
