991271 (ZT HD Stealth 52) - Gravely 52" Zero-Turn Mower, Kawasaki FR (SN: 000101 & Above) Engine - Kawasaki FR691V Parts Diagram

52" Zero-Turn Mower, Kawasaki FR

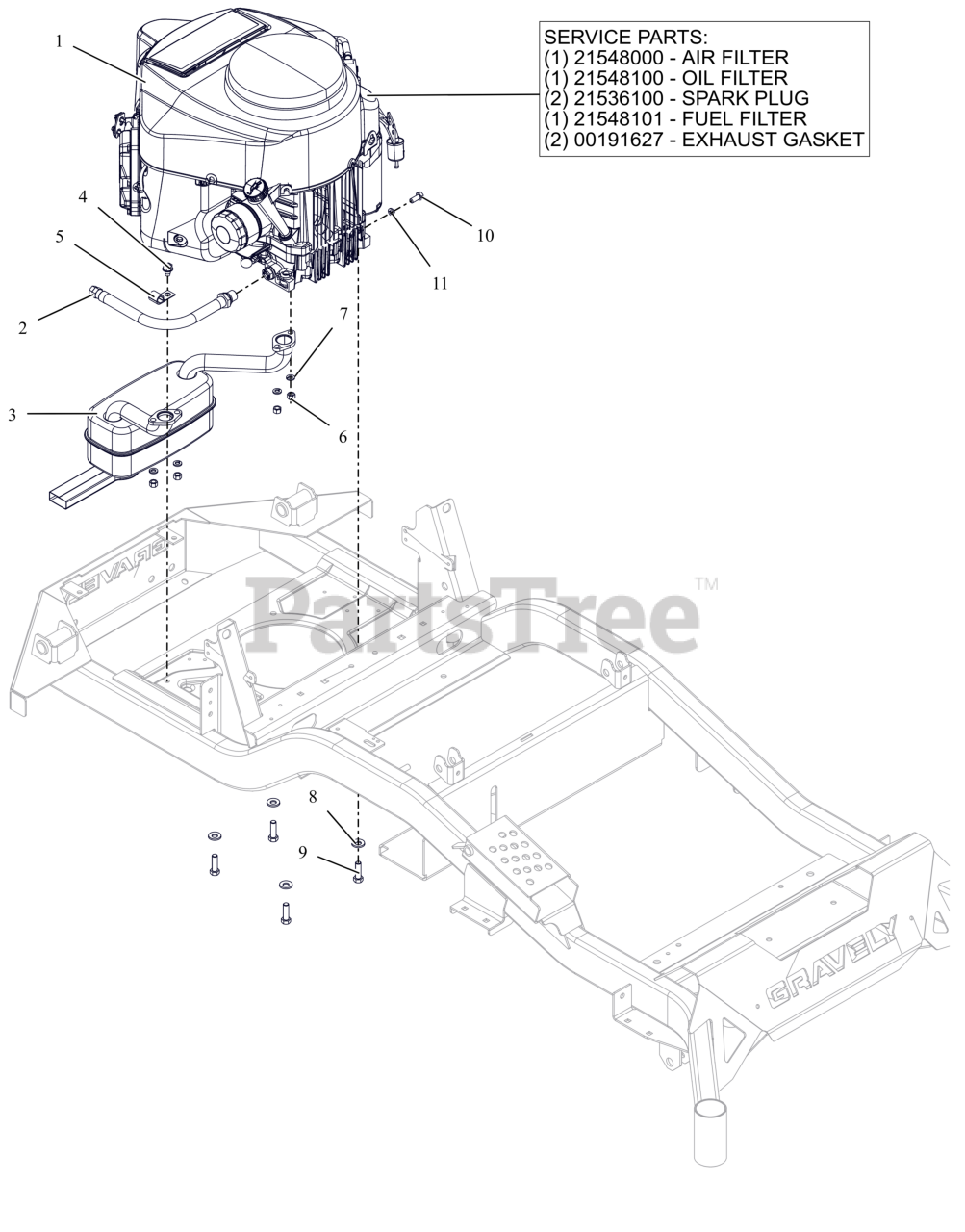

Engine - Kawasaki FR691V Parts Diagram

  • Title

1

Gravely 08200717

ENGINE, KAWASAKI FR691 23HP

$

$

Not available

1

Gravely 21548000

AIR FILTER, KAWASAKI FR

Note: Service Part Component

$17.99

$

In Stock, Qty 20+

0

1

Gravely 21548100

OIL FILTER, KAWASAKI FR
(Superseded to 49065-0721)

Note: Service Part Component

$18.99

$

In Stock, Qty 20+

0

1

Gravely 21536100

PLUG, SPARK

Note: Service Part Component

$3.49

$

In Stock, Qty 20+

0

1

Gravely 21548101

FUEL FILTER-KAWASAKI FR
(Superseded to 21573800)

Note: Service Part Component

$

$

Not available

1

Gravely 00191627

GASKET, MUFFLER S/O

Note: Service Part Component

$7.99

$

In Stock, only 4 left!

0

1

Gravely 21801100

VALVE- T-TYPE OIL DRAIN

Note: Service Part Component

$

$

Not available

1

Gravely 21801200

O-RING- OIL DRAIN VALVE

Note: Service Part Component Used With Drain 21801100

$5.99

$

Usually ships in 4-12 days

0

2

Gravely 07001730

HOSE, OIL DRAIN

Note: Optional Service Accessory

$21.99

$

Usually ships in 4-12 days

0

3

Gravely 04754300

MUFFLER, KAWASAKI

$96.99

$

In Stock, only 2 left!

0

4

Gravely 07400126

SCR,TAP .375-16X.50 HWH TR ZCC

$1.49

$

In Stock, only 1 left!

0

5

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

6

Gravely 06500919

NUT-LK-TOP-FLG M8 ZCC

$2.49

$

In Stock, only 3 left!

0

7

Gravely 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 8

0

8

Gravely 06400927

WASHER, 3/8" SPRING DISC

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 05901808

BLT, HEX .38-16X1.25 G5 ZCC NT

$1.99

$

In Stock, only 4 left!

0

10

Gravely 05901628

BLT, HEX M8-1.25X20 G8.8 ZCC

$

$

Not available

11

Gravely 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 8

0
