991268 (ZT HD 48) - Gravely 48" Zero-Turn Mower, Kawasaki FR (SN: 095000 & Above) Seat Parts Diagram

48" Zero-Turn Mower, Kawasaki FR

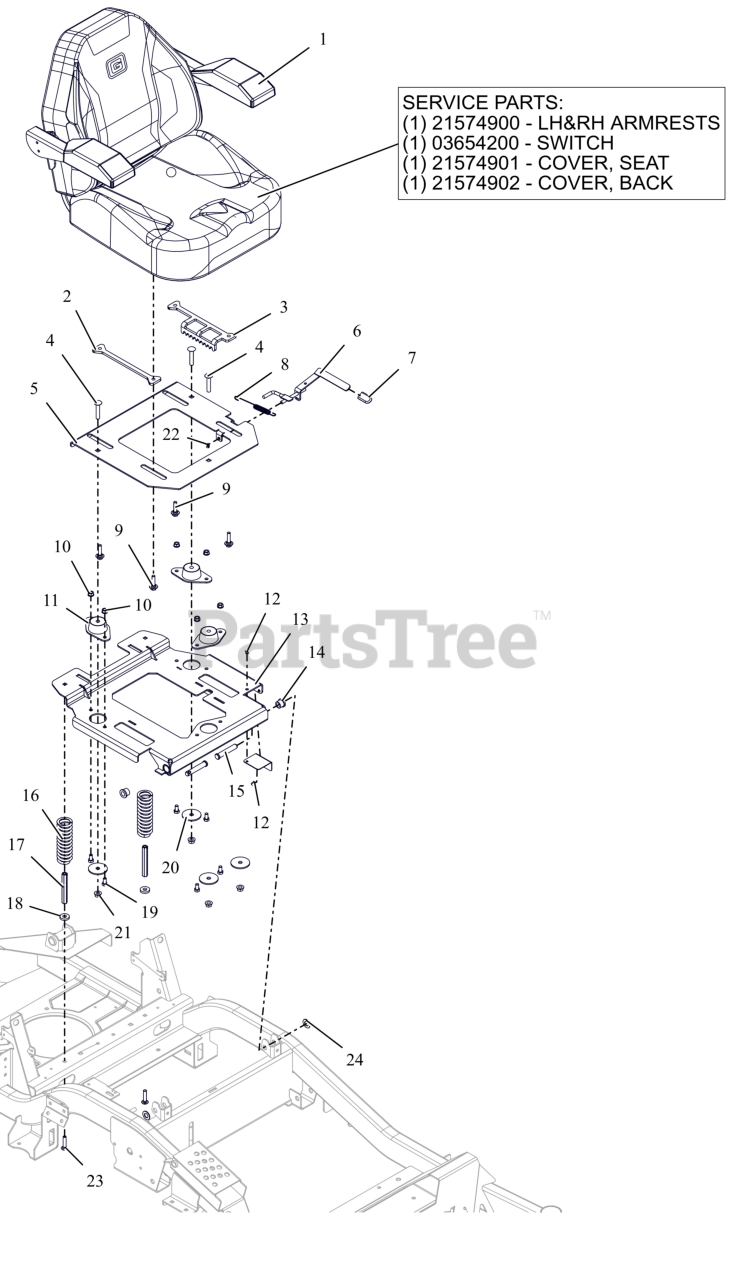

Seat Parts Diagram

  • Title
1

Gravely 09190900

SEAT, HD

$737.99

$

Usually ships in 4-12 days

0

1

Gravely 21574900

LH&RH ARMRESTS

Note: Service Part Component

$122.99

$

Usually ships in 4-12 days

0

1

Gravely 03654200

SWITCH- SEAT

Note: Service Part Component

$

$

Not available

1

Gravely 21574901

COVER, SEAT - HD

Note: Service Part Component

$

$

Not available

1

Gravely 21574902

SEAT COVER, BACK HD

Note: Service Part Component

$142.99

$

Usually ships in 4-12 days

0

2

Gravely 09363451

PLATE, ADJ SEAT SLIDE (BLACK)

$

$

Not available

3

Gravely 09363551

PLATE, SEAT ADJ (BLACK)

$

$

Not available

4

Gravely 06200323

BLT,RHSSN.375-16X2.00 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

5

Gravely 30148153

PLATE- SEAT MTG 3PT (ISO KIT)

$47.99

$

Usually ships in 4-12 days

0

6

Gravely 05015251

WLDMT, SEAT SLIDE LEVER

$

$

Not available

7

Gravely 04396600

GRIP, SEAT LEVER, GREY

$

$

Not available

8

Gravely 08300022

SG-TENS .06X.482X5.35

$5.99

$

In Stock, Qty 12

0

9

Gravely 07001929

BLT, SHLDR .31-18 X .175

$2.49

$

In Stock, only 3 left!

0

10

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 07500520

MOUNT- FAIL-SAFE COMPRESSION

$34.99

$

Usually ships in 4-12 days

0

12

Gravely 06800120

RIVET, .1875 AL/AL .126-.250

$

$

Not available

13

Gravely 30135951

WLDMT- ISO MTG PLATE 3PT

$

$

Not available

14

Gravely 05500901

BSHG, FLG .516X.750X.625X.937

$5.99

$

In Stock, only 2 left!

0

15

Gravely 06800202

PIN, SLIC-.500X42.70X2.31 -ZC

$7.99

$

Usually ships in 4-12 days

0

16

Gravely 08300704

SPRING, COMPRESSION SEAT 224LB

$

$

Not available

17

Gravely 06500828

NUT, COUPLING 5/16X18 X 3.75

$12.99

$

In Stock, only 2 left!

0

18

Gravely 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.49

$

In Stock, Qty 20+

0

19

Gravely 05901832

BLT, HEX .31-18X.625 G5 ZCC

$

$

Not available

20

Gravely 06401221

WSHR-FL-STL 0.406X2X0.125 ZCC

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06200233

BLT,RHSN .31-18X1.50 G5 ZCC

$1.49

$

In Stock, Qty 19

0

24

Gravely 06401115

WSHR, FLT .531X1.00X.063 ZCC

$0.99

$

In Stock, Qty 20+

0
