991258 (Pro-Turn Z 60) - Gravely Pro-Turn 60" Zero-Turn Mower, Gravely 764 Pro (SN: 000101 - 001999) Engine - Gravely 764cc Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Gravely 764 Pro

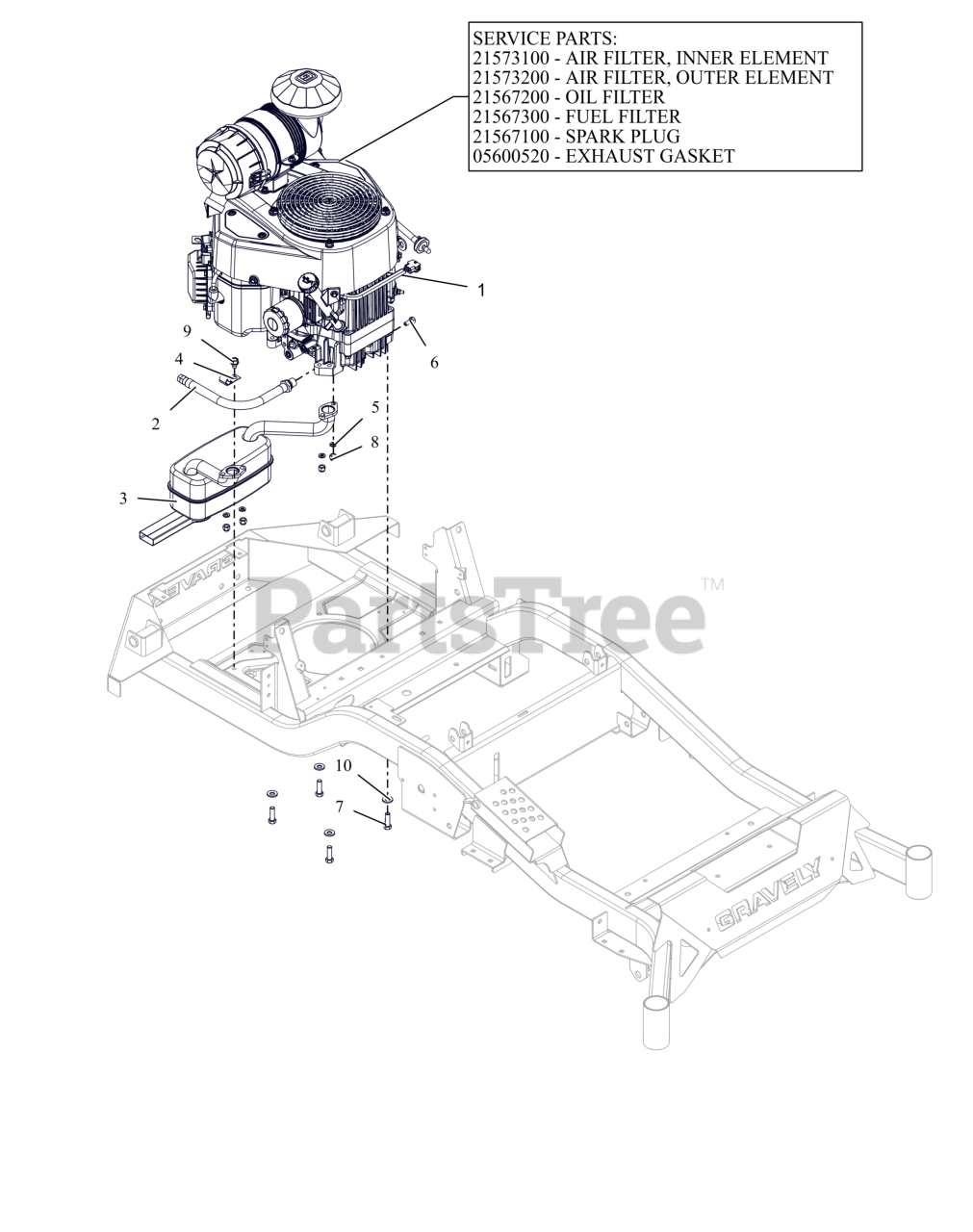

Engine - Gravely 764cc Parts Diagram

  • Title

1

Gravely 08201340

ENGINE, GRAVELY 764CC PRO FILTER

$

$

Currently unavailable

1

Gravely 21573100

FILTER, ELEMENT INNER

Note: Component Service Part

$22.99

$

In Stock, only 4 left!

0

1

Gravely 21573200

ELEMENT, AIR FILTER

Note: Component Service Part

$29.99

$

In Stock, only 1 left!

0

1

Gravely 21567200

FILTER, OIL LONCIN

Note: Component Service Part

$15.99

$

In Stock, Qty 20+

0

1

Gravely 21567300

FILTER, FUEL
(Superseded to 21110575)

Note: Component Service Part

$

$

Not available

1

Gravely 21567100

PLUG, SPARK

Note: Component Service Part

$6.99

$

In Stock, only 2 left!

0

1

Gravely 05600520

GASKET, MUFFLER LONCIN

Note: Component Service Part

$3.49

$

Usually ships in 4-12 days

0

2

Gravely 07001730

HOSE, OIL DRAIN

$21.99

$

Usually ships in 4-12 days

0

3

Gravely 04754300

MUFFLER, KAWASAKI

$96.99

$

In Stock, only 1 left!

0

4

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

5

Gravely 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 20+

0

6

Gravely 05901628

BLT, HEX M8-1.25X20 G8.8 ZCC

$

$

Not available

7

Gravely 05901808

BLT, HEX .38-16X1.25 G5 ZCC NT

$1.99

$

In Stock, Qty 11

0

8

Gravely 06500817

NUT,NYL M8-1.25 G8.8 ZCC

$1.49

$

Usually ships in 4-12 days

0

9

Gravely 07400126

SCR,TAP .375-16X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06400927

WASHER, 3/8" SPRING DISC

$3.49

$

In Stock, only 2 left!

0
