991258 (Pro-Turn Z 60) - Gravely Pro-Turn 60" Zero-Turn Mower, Gravely 764 Pro (SN: 000101 - 001999) Deck, Belts, Blades And Spindles - 60" Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Gravely 764 Pro

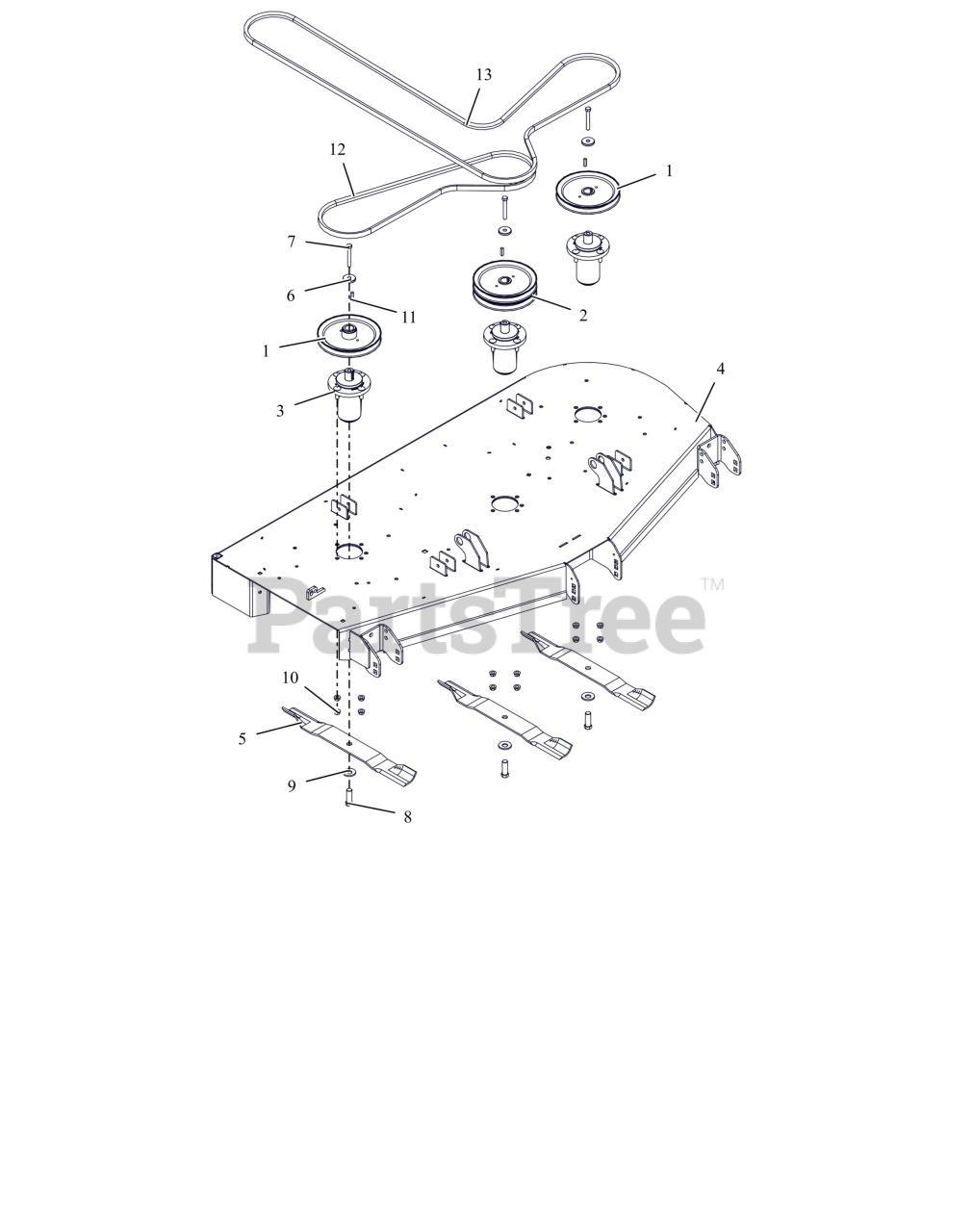

Deck, Belts, Blades And Spindles - 60" Parts Diagram

  • Title

1

Gravely 07345967

PULLEY, V-7.50 OD X 1"ID
(Superseded to 07345900)

$70.99

$

Usually ships in 4-12 days

0

2

Gravely 07346667

PULLEY, DOUBLE 1"X7.50"&7.50" (BLACK)
(Superseded to 07346600)

$91.99

$

In Stock, only 1 left!

0

3

Gravely 58810800

ASM, MAINT FREE ALUM SPINDLE

$239.99

$

In Stock, Qty 20+

0

4

Gravely 59108300

KIT,DECK-60" W/DECALS-GRAVELY

$

$

Not available

5

Gravely 03253900

BLADE, 20.5"

$31.99

$

In Stock, Qty 20+

0

6

Gravely 04530500

RETAINER, SHEAVE

$7.99

$

In Stock, Qty 20+

0

7

Gravely 05901813

BLT, HEX .38-16X2.75 G8 ZCC

$1.49

$

In Stock, Qty 20+

0

8

Gravely 05901822

BLT, HEX .62-18X1.75 G8 ZCC

$3.49

$

In Stock, Qty 20+

0

9

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, only 3 left!

0

10

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 15

0

12

Gravely 07200807

V-BELT, B-COGGED

$48.99

$

In Stock, only 1 left!

0

13

Gravely 07200817

V-BELT, HB SECTION

$126.99

$

In Stock, only 2 left!

0
