991256 (Pro-Turn Z 52) - Gravely Pro-Turn 52" Zero-Turn Mower, Gravely 764 Pro (SN: 002000 & Above) Belt Guards - 52" Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Gravely 764 Pro

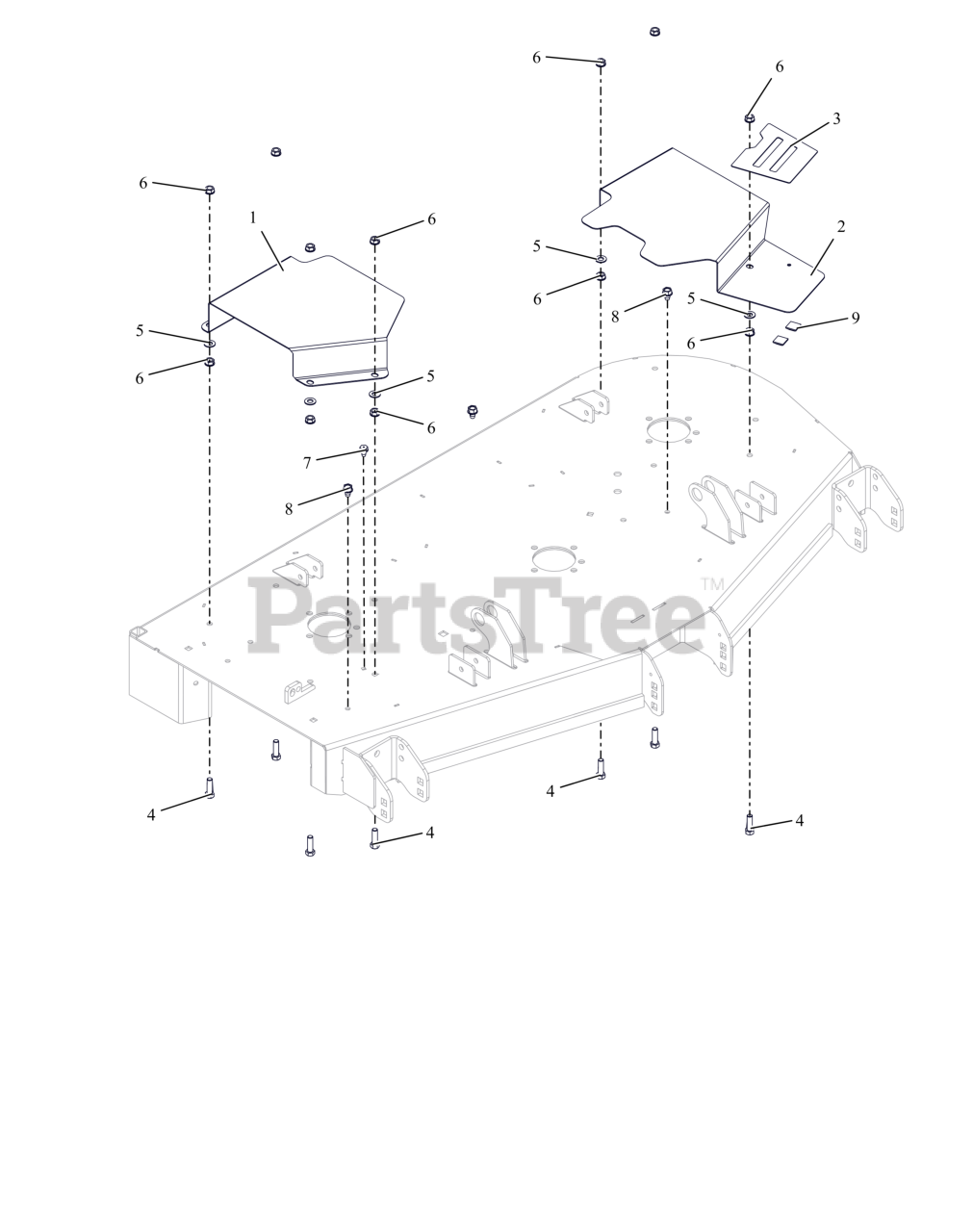

Belt Guards - 52" Parts Diagram

  • Title
1

Gravely 05074453

COVER, BELT 52" & 60" RIGHT

$72.99

$

In Stock, only 4 left!

0

2

Gravely 05074553

COVER, BELT 52" LEFT

$40.99

$

In Stock, only 2 left!

0

3

Gravely 05160100

GRIP, TAPE 52-60 BELT COVER

$

$

Not available

4

Gravely 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06500735

NUT, SPNLK-FLG .38-16 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

8

Gravely 07400126

SCR,TAP .375-16X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

$2.49

$

Usually ships in 4-12 days

0
