991241 (ZT HD 44) - Gravely 44" Zero-Turn Mower, Kohler 7000 (SN: 002000 & Above) Anti-Scalp and Baffles - 44" Parts Diagram

44" Zero-Turn Mower, Kohler 7000

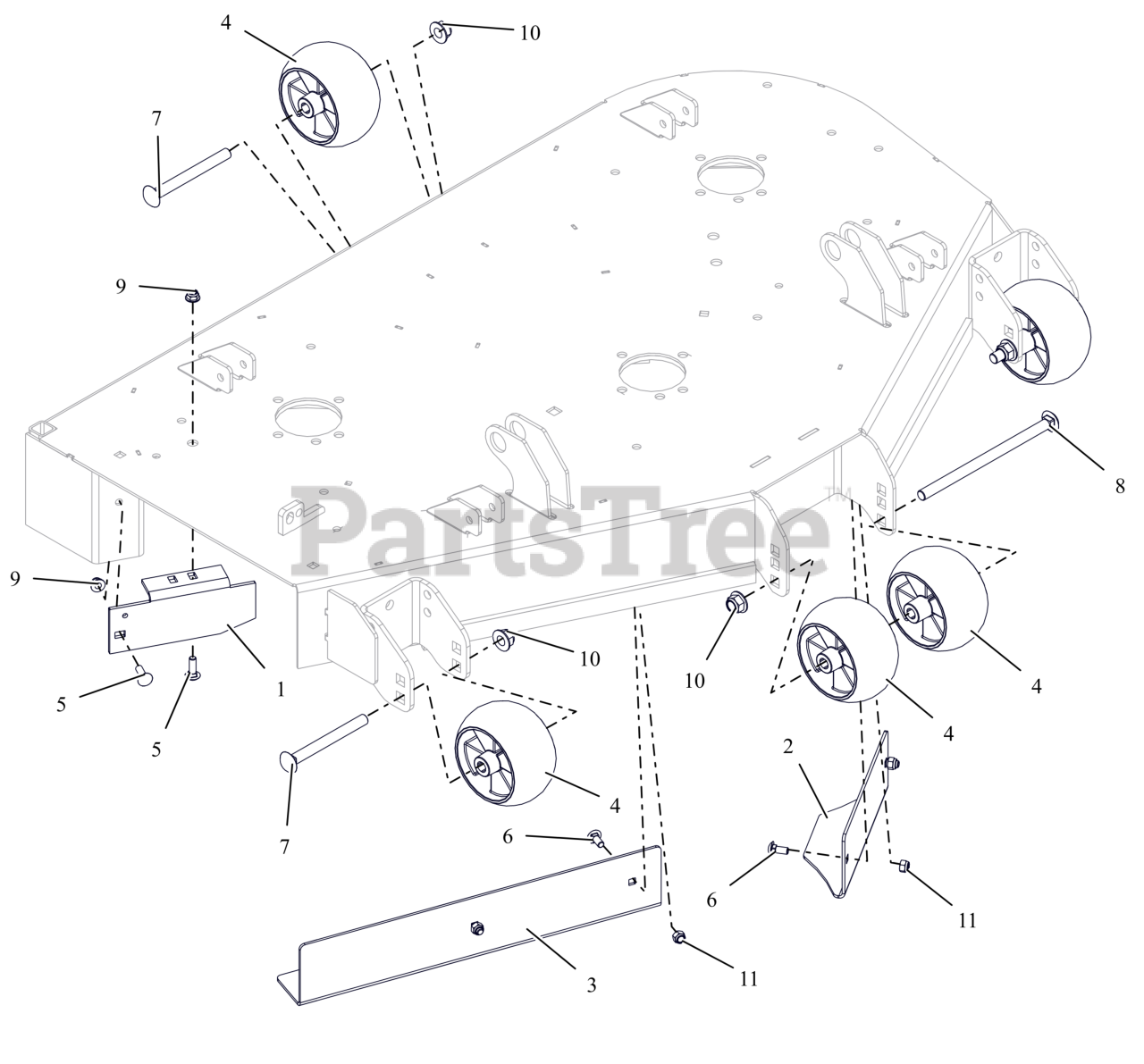

Anti-Scalp and Baffles - 44" Parts Diagram

  • Title
1

Gravely 00451653

44"-48" SIDE DISCH BAFFLE -RED

$41.99

$

Usually ships in 4-12 days

0

2

Gravely 05251653

BAFFLE, 44/48" LH VACUUM (RED)

$

$

Not available

3

Gravely 05252353

BAFFLE, 44" RH VACUUM (RED)

$

$

Not available

4

Gravely 05268800

WHEEL, ANTI SCALP - 5X3 CTR W/RIBS

$11.99

$

In Stock, Qty 20+

0

5

Gravely 06200231

BLT,RHSN .31-18X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06200232

BLT,RHSN .31-18X.75 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

7

Gravely 06200318

BLT, RHSN .50-13X5.00 G5 ZCC
(Superseded to 06200505)

$5.99

$

Usually ships in 4-12 days

0

8

Gravely 06200436

BTL,RHSN .500-13 X 8.5S G5 ZCC
(Superseded to 06200506)

$6.99

$

Usually ships in 4-12 days

0

9

Gravely 06500809

NUT,NYL-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06500810

NUT,NYL-FLG .50-13 GF ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06500820

NUT,NYL .31-18 G5 ZCC

$0.99

$

In Stock, Qty 20+

0
