991232 (Pro-Turn ZX 52) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 040000 & Above) Deck, Belts, Blades and Spindles - 52" Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

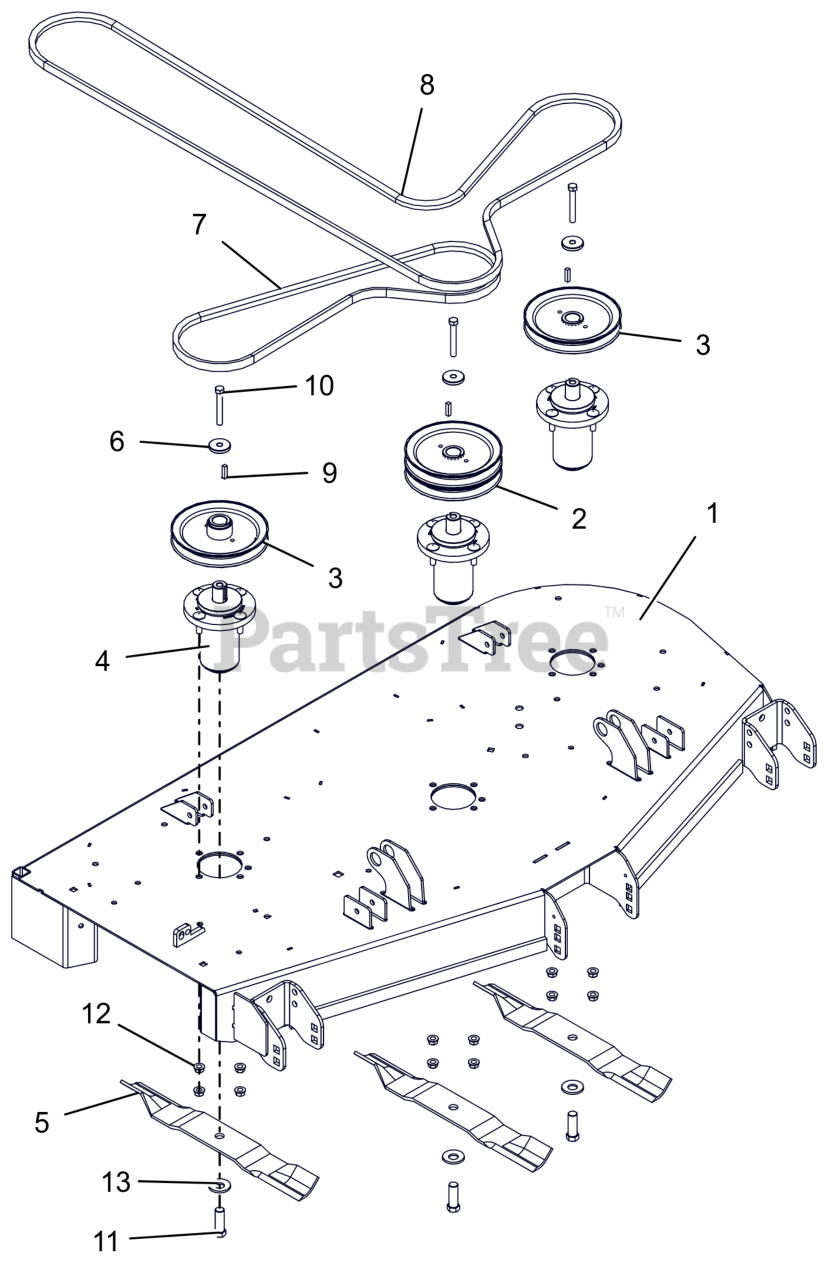

Deck, Belts, Blades and Spindles - 52" Parts Diagram

  • Title

1

Gravely 59108100

KIT,DECK-52" W/DECALS-GRAVELY

$

$

Not available

2

Gravely 07328867

PULLEY, DOUBLE-1"ID X 6.75"OD
(Superseded to 59211500)

$91.99

$

In Stock, Qty 20+

0

3

Gravely 07328967

PULLEY, V-1" ID X 6.75" OD
(Superseded to 59211600)

$82.99

$

In Stock, Qty 13

0

4

Gravely 58810800

ASM, MAINT FREE ALUM SPINDLE

$239.99

$

In Stock, Qty 20+

0

5

Gravely 03253800

BLADE, 18"

$28.99

$

In Stock, Qty 20+

0

6

Gravely 04530500

RETAINER, SHEAVE

$7.99

$

In Stock, Qty 20+

0

7

Gravely 07200806

V-BELT, B-COGGED

$40.99

$

Usually ships in 4-12 days

0

8

Gravely 07200816

V-BELT, HB SECTION

$119.99

$

In Stock, Qty 12

0

9

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 20+

0

10

Gravely 05901813

BLT, HEX .38-16X2.75 G8 ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 05901822

BLT, HEX .62-18X1.75 G8 ZCC

$3.49

$

In Stock, Qty 20+

0

12

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, Qty 20+

0
