991230 (Pro-Turn ZX 48) - Gravely Pro-Turn 48" Zero-Turn Mower, Kawasaki FX (SN: 025000 - 029999) Rear Tires And Transaxles - 48" Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kawasaki FX

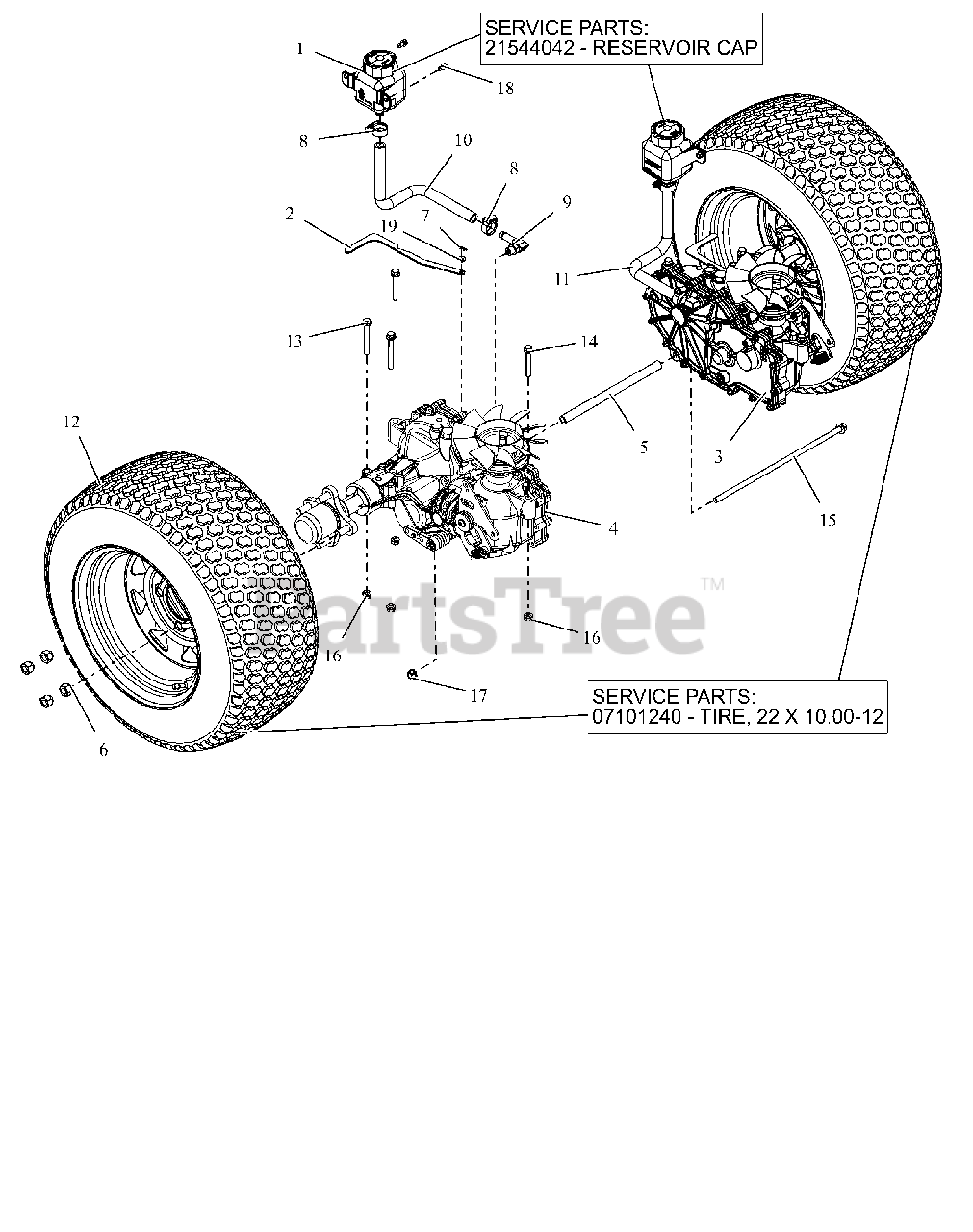

Rear Tires And Transaxles - 48" Parts Diagram

  • Title

1

Gravely 02970200

TANK, EXPANSION

$34.99

$

In Stock, only 2 left!

0

1

Gravely 21544042

CAP, HYDRO RESERVOIR REPLAC.

Note: SERVICE PART

$21.99

$

Usually ships in 4-12 days

0

2

Gravely 05076751

BRKT, VALVE DUM

$7.99

$

Usually ships in 4-12 days

0

3

Gravely 05189900

TRANSAXLE, ZT3200 LH
(Superseded to 09159300)

$1112.99

$

Usually ships in 4-12 days

0

4

Gravely 05190000

TRANSAXLE, RH ZT3200
(Superseded to 09159400)

$1034.99

$

Usually ships in 4-12 days

0

5

Gravely 05196451

SPCR, TRANSAXLE .406 ID X .630 OD X 9.95LG (BLACK)

$

$

Not available

6

Gravely 06500926

NUT, WHEEL .50-20 ZCC

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06700223

PIN, HAIR #225 .072X1.09

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06923500

CLAMP,.88 DIA. HOSE

$1.99

$

In Stock, Qty 6

0

9

Gravely 07001528

FITTING, HYD (90 DEG)

$

$

Not available

10

Gravely 07001803

HOSE, FORMED EXPANSION -HD RH

$14.99

$

Usually ships in 4-12 days

0

11

Gravely 07001804

HOSE, FORMED EXPANSION -HD LH

$14.99

$

Usually ships in 4-12 days

0

12

Gravely 07101224

ASM, WHL/TIRE 22X10.00-12 K500

$273.99

$

Usually ships in 4-12 days

0

12

Gravely 07101240

TIRE, 22X10.00-12

Note: SERVICE PART

$136.99

$

In Stock, only 1 left!

0

13

Gravely 05901911

BLT,HEX-FLG .31-18X2.75 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

14

Gravely 05901910

BLT,HEX-FLG .31-18X2.25 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 05901903

BLT, HEX-FLG 0.375-16X13 GR5 ZC120

$13.99

$

In Stock, only 1 left!

0

16

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

18

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 20+

0
