991222 (Pro-Turn 52) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FS, CARB (SN: 000101 - 009999) Parking Brake Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FS, CARB

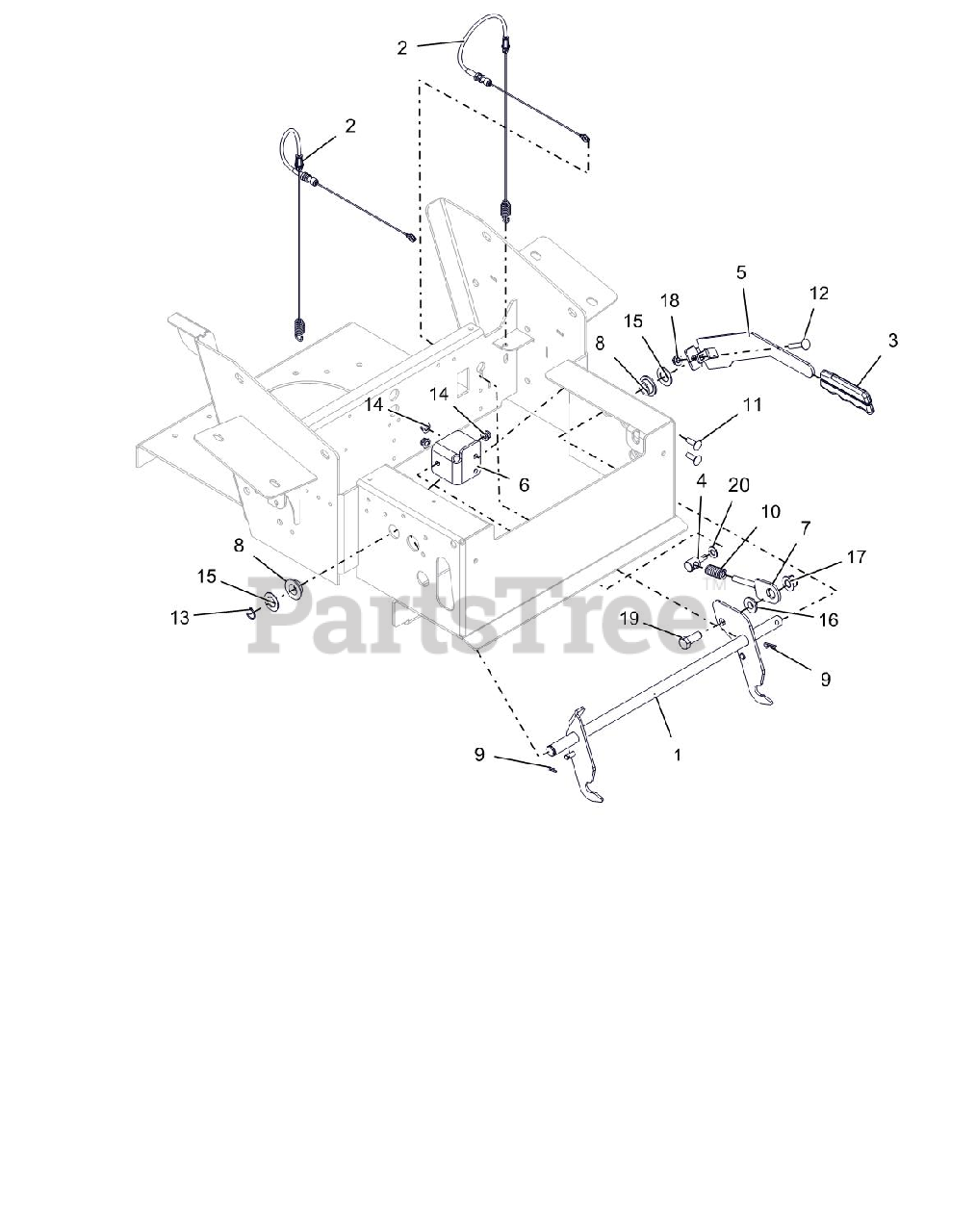

Parking Brake Parts Diagram

  • Title

1

Gravely 05066967

PT/PT100 BRAKE LEVER WMT-LOW F

$64.99

$

Usually ships in 4-12 days

0

2

Gravely 06900639

CABLE, BRAKE ACCUATING

$28.99

$

Usually ships in 4-12 days

0

3

Gravely 03826900

GRIP, PARKING BRAKE (YELLOW)

$3.99

$

In Stock, only 2 left!

0

4

Gravely 03969667

.38-16 TRUNNION - LOW FILM
(Superseded to 03969600)

$17.99

$

Usually ships in 4-12 days

0

5

Gravely 05070751

PT/PT100 BRAKE HANDLE - BLK

$22.99

$

In Stock, only 1 left!

0

6

Gravely 05093151

TRUNNION MTG BRACKET - BLACK

$17.99

$

Usually ships in 4-12 days

0

7

Gravely 05113600

WLDMT, BRAKE SPRING MOUNTING

$18.99

$

Usually ships in 4-12 days

0

8

Gravely 05525200

BSHG-FLG .762X1.48X.44 NYL
(Superseded to 05501517)

$2.49

$

Usually ships in 4-12 days

0

9

Gravely 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 08300027

SG-COMP .142 X .710 X 1.75

$9.49

$

In Stock, only 2 left!

0

11

Gravely 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06220200

@BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$2.99

$

In Stock, only 4 left!

0

13

Gravely 05714600

RG-RTNG-EXT .689X.078

$2.49

$

In Stock, Qty 5

0

14

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, Qty 13

0

16

Gravely 03989100

BSHG-FLG .515X.750X.310X1.120

$3.49

$

In Stock, Qty 20+

0

17

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06528700

@NUT-LK-CTR-FLG .31-18 YZ GR F
(Superseded to 06500840)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05958900

@BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

20

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0
