991222 (Pro-Turn 52) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FS, CARB (SN: 000101 - 009999) Deck Idlers - 52" Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FS, CARB

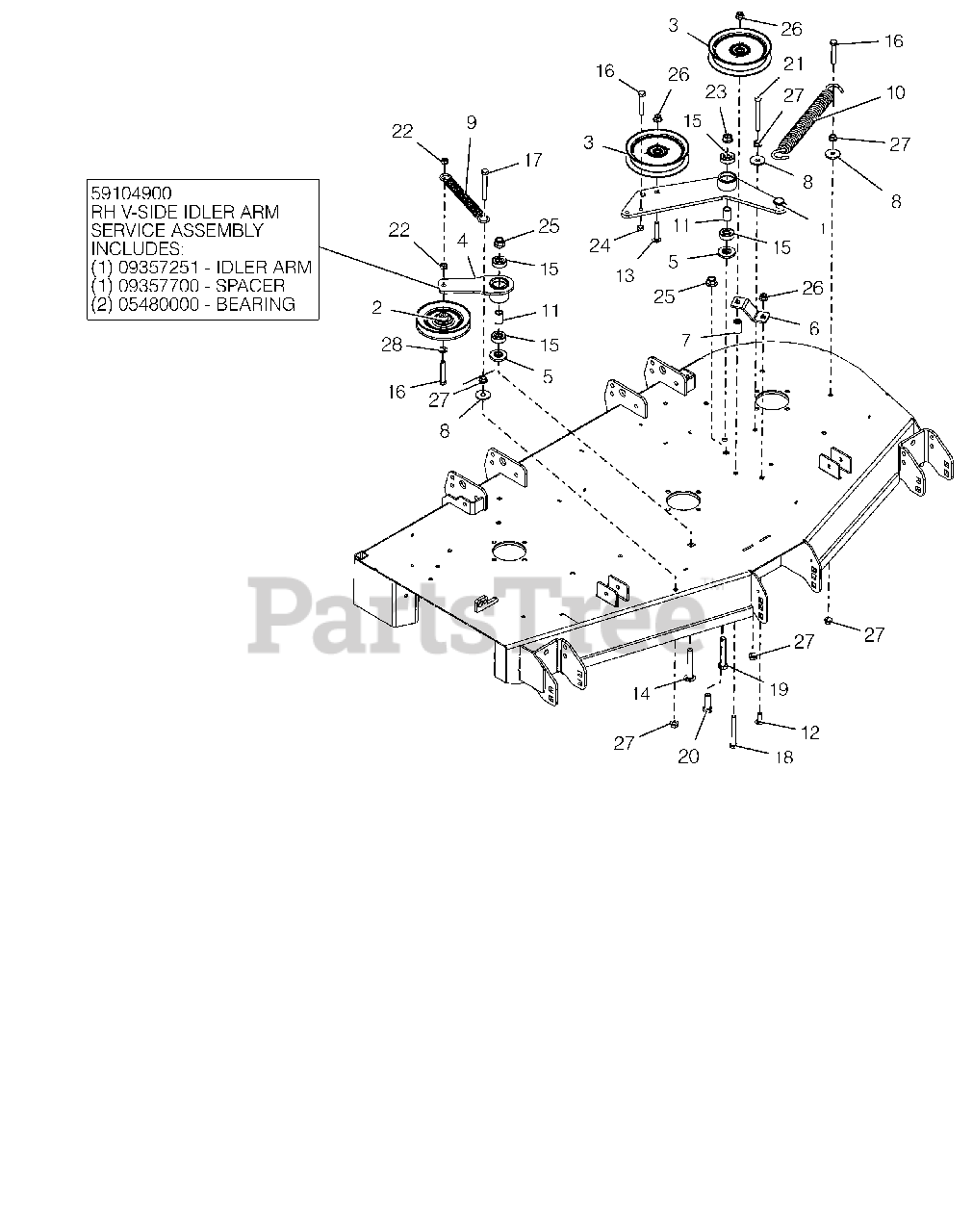

Deck Idlers - 52" Parts Diagram

  • Title

1

Gravely 04985651

DECK PTO IDLER ARM WLDMT - BLK
(Superseded to 04985600)

$77.99

$

In Stock, only 1 left!

0

2

Gravely 07340100

IDLER, V-5.00"
(Superseded to 07351800)

$30.99

$

In Stock, Qty 20+

0

3

Gravely 07345600

IDLER, FLAT 5.00"
(Superseded to 07351200)

$40.99

$

In Stock, Qty 5

0

4

Gravely 09357251

DECK RH IDLER ARM WMT - BLK
(Superseded to 59104900)

$66.99

$

In Stock, only 1 left!

0

4

Gravely 59104900

RH V-SIDE IDLER ARM ASSEMBLY

Note: SERVICE PART

$66.99

$

In Stock, only 1 left!

0

4

Gravely 09357251

DECK RH IDLER ARM WMT - BLK
(Superseded to 59104900)

Note: SERVICE PART

$66.99

$

In Stock, only 1 left!

0

4

Gravely 09357700

SPACER .510 X .75 X 1.1485

Note: SERVICE PART

$4.99

$

In Stock, Qty 7

0

4

Gravely 05480000

BRG-BALL .50X1.38X.438 SEALED

Note: SERVICE PART

$13.99

$

In Stock, Qty 20+

0

5

Gravely 04714600

SPACER, IDLER ARM

$5.99

$

In Stock, Qty 20+

0

6

Gravely 04981853

PTO FIXED IDLER MTG BRKT -RED

$9.49

$

Usually ships in 4-12 days

0

7

Gravely 05501308

BUSHING, SLV .380X.750X1.190

$4.99

$

In Stock, Qty 19

0

8

Gravely 06442400

WSHR-FL-STL .406X1.375X.135 YZ
(Superseded to 06401121)

$5.99

$

In Stock, only 1 left!

0

9

Gravely 08300507

SPRING, EXTENSION
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

10

Gravely 08300708

SPRING, EXTENSION

$19.99

$

In Stock, Qty 20+

0

11

Gravely 09357700

SPACER .510 X .75 X 1.1485

$4.99

$

In Stock, Qty 7

0

12

Gravely 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06203200

BLT-RDHDSQNK .38-16X2.00 SHTYW
(Superseded to 06200323)

$2.99

$

In Stock, Qty 20+

0

14

Gravely 06200216

BLT,RDHDSQSHNK.50-13X3.25 G5YZ
(Superseded to 06200339)

$3.99

$

In Stock, Qty 20+

0

15

Gravely 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, Qty 20+

0

16

Gravely 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

17

Gravely 05957800

@BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

18

Gravely 05961100

@BLT-HEX .38-16X3.25 GR5 YWZC
(Superseded to 05901817)

$3.99

$

In Stock, Qty 20+

0

19

Gravely 05959900

@BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

20

Gravely 05962000

@BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

21

Gravely 05960900

@BLT-HEX .38-16X3.50 GR5 YWZC
(Superseded to 05901818)

$3.99

$

In Stock, Qty 20+

0

22

Gravely 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06530008

NUT-LK-CTR-FLG .50-13 YWZC
(Superseded to 06500902)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0
