991221 (Pro-Turn 48) - Gravely Pro-Turn 48" Zero-Turn Mower, Kawasaki FS, CARB (SN: 010000 & Above) Fuel System - Kawasaki - CARB - Canister Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kawasaki FS, CARB

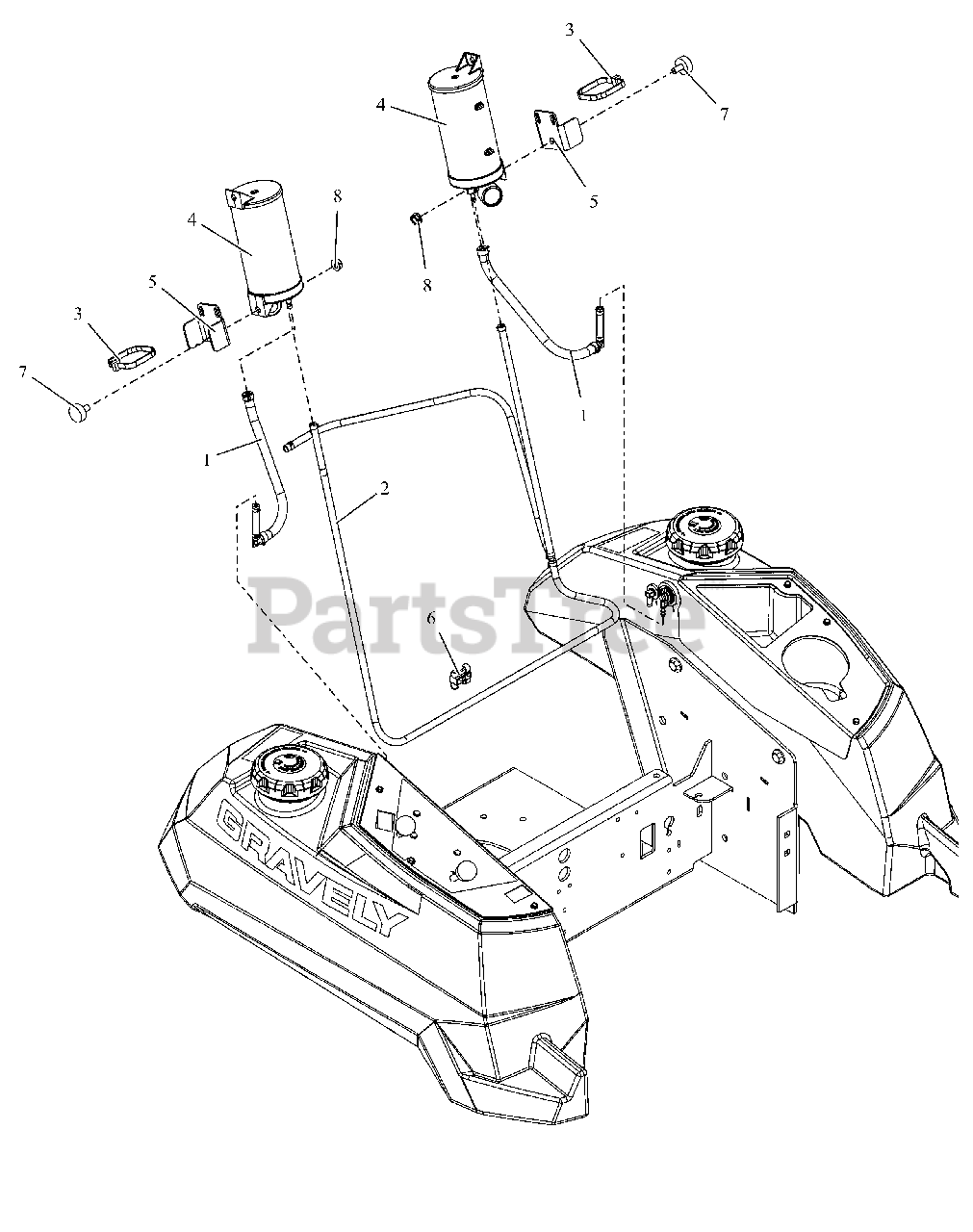

Fuel System - Kawasaki - CARB - Canister Parts Diagram

  • Title
1

Gravely 05120800

ASM, CANISTER VENT LINE

$17.99

$

Usually ships in 4-12 days

0

2

Gravely 05119900

ASM, VAPOR LINE (CARB)

$38.18

$

Usually ships in 4-12 days

0

3

Gravely 04003500

TIE WRAP, 15.25" X 120 LBS

$

$

Not available

4

Gravely 04548100

CANISTER, 400 CC CARB

$78.99

$

Usually ships in 4-12 days

0

5

Gravely 05069251

CARB CANISTER MTG BRKT - BLACK

$

$

Not available

6

Gravely 07001712

CLIP, T, .38-.50

$

$

Not available

7

Gravely 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0

8

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0
