991217 (Pro-Turn 60) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki FS (SN: 000101 - 009999) Deck, Belts, Baffle, Blades And Spindles - 60" Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki FS

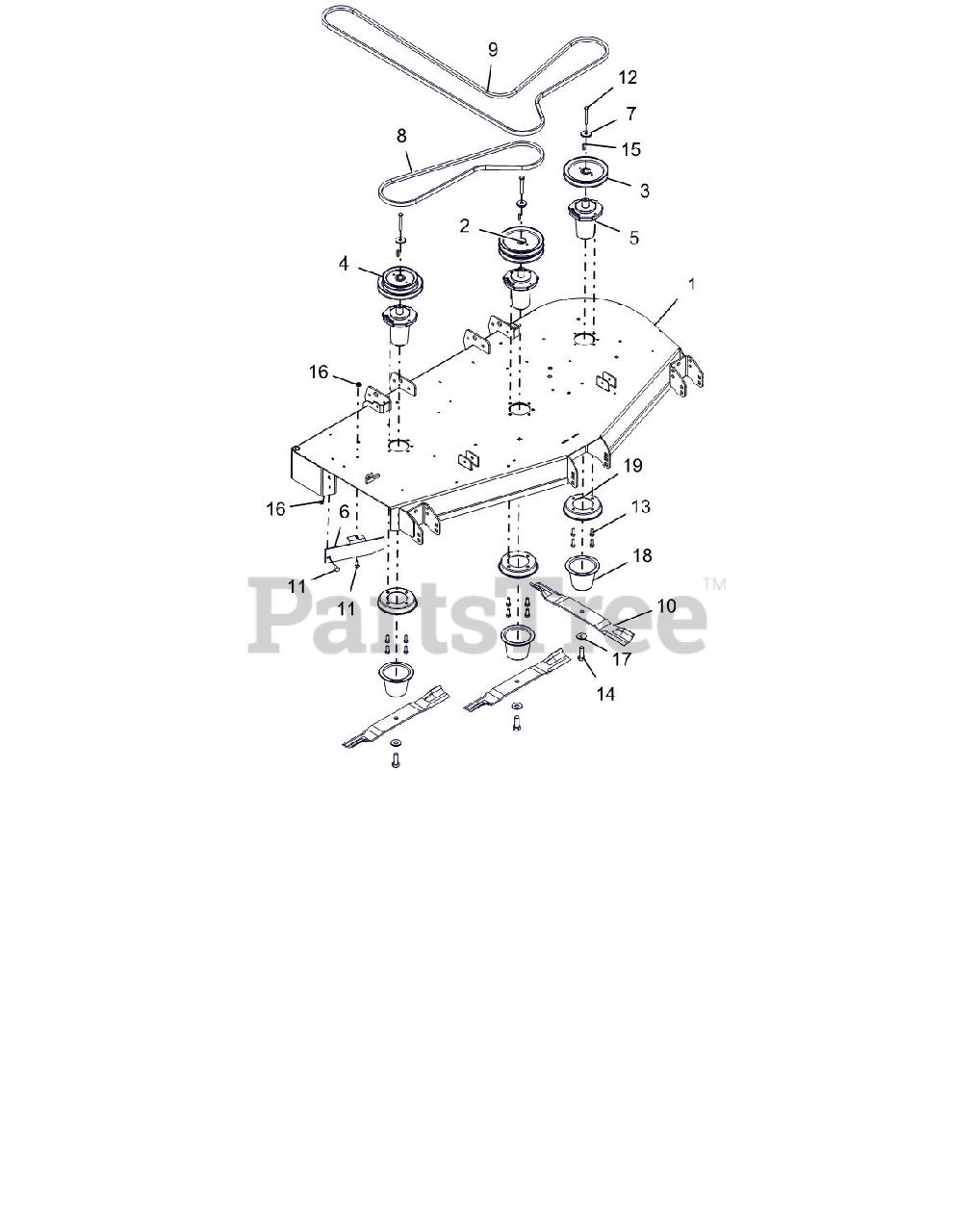

Deck, Belts, Baffle, Blades And Spindles - 60" Parts Diagram

  • Title

1

Gravely 59109400

DECK, PT60 W/SAFETY DECALS

$1099.99

$

Usually ships in 4-12 days

0

2

Gravely 07328867

PULLEY, DOUBLE-1"ID X 6.75"OD
(Superseded to 59211500)

$91.99

$

In Stock, Qty 20+

0

3

Gravely 07328967

PULLEY, V-1" ID X 6.75" OD
(Superseded to 59211600)

$83.99

$

In Stock, Qty 8

0

4

Gravely 07340400

PULLEY, DBL-1"IDX6.75"&5.25"OD

$70.99

$

In Stock, only 2 left!

0

5

Gravely 59225700

ASM, MAINT FREE SPINDLE
(Superseded to 58810800)

$239.99

$

In Stock, Qty 20+

0

6

Gravely 00374153

60" DISCHARGE BAFFLE - RED

$28.99

$

In Stock, only 1 left!

0

7

Gravely 04530500

RETAINER, SHEAVE

$7.99

$

In Stock, Qty 20+

0

8

Gravely 07200038

V-BELT, B-COGGED

$68.99

$

In Stock, Qty 20+

0

9

Gravely 07200712

BELT, B-SECTION EPDM RAW EDGE

$127.99

$

In Stock, only 1 left!

0

10

Gravely 09081200

BLADE, MOWER (20.50")

$29.99

$

In Stock, Qty 20+

0

11

Gravely 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

15

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 15

0

16

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, only 3 left!

0

18

Gravely 05011500

GUARD, SPINDLE LOWER

$

$

Not available

19

Gravely 05017000

GUARD, SPINDLE TOP

$

$

Not available
