991215 (Pro-Turn 48) - Gravely Pro-Turn 48" Zero-Turn Mower, Kawasaki FS (SN: 010000 & Above) Guards and Chute - 48" and 52" Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kawasaki FS

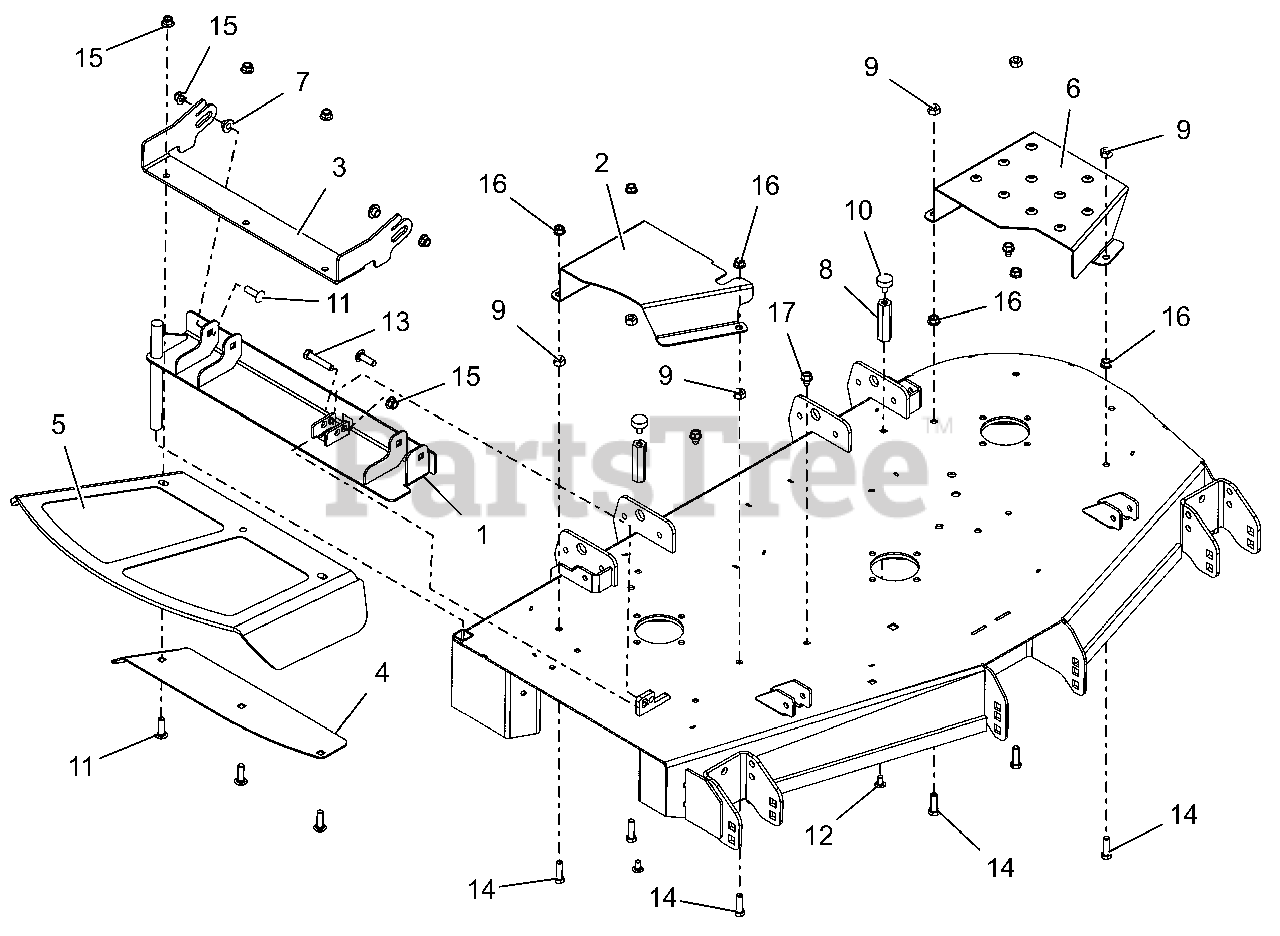

Guards and Chute - 48" and 52" Parts Diagram

  • Title

1

Gravely 59225500

48-60 DISCH CHT MTG WMT W/SAFE

$113.99

$

Usually ships in 4-12 days

0

2

Gravely 05106953

GUARD,PRO-TURN DECK RH BELT-RD

$46.99

$

Usually ships in 4-12 days

0

3

Gravely 04872253

48-60" CHUTE MTG BRKT - RED

$56.99

$

Usually ships in 4-12 days

0

4

Gravely 04873753

48-60 DISCH CHUTE CLMP PLT-RED

$25.99

$

In Stock, only 2 left!

0

5

Gravely 04881200

CHUTE,48-60" FRMD RUBBER DISCH

$75.99

$

In Stock, Qty 9

0

6

Gravely 05018953

GUARD,PRO-TURN DECK LH BELT-RD

$117.99

$

Usually ships in 4-12 days

0

7

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

8

Gravely 07001812

NUT, COUPLING .31-18 2.75 LG

$12.99

$

Usually ships in 4-12 days

0

9

Gravely 07001525

NUT-HEAVY HEX .38-16 YWZC
(Superseded to 06500823)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0

11

Gravely 06222200

@BLT-RHDSSQNK .38-16X1.25 G5YZ
(Superseded to 06200236)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 06200118

BLT-RDHDSQSHNK.31-18X.62 YZ-LK
(Superseded to 06200304)

$2.99

$

Usually ships in 4-12 days

0

13

Gravely 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

14

Gravely 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0
