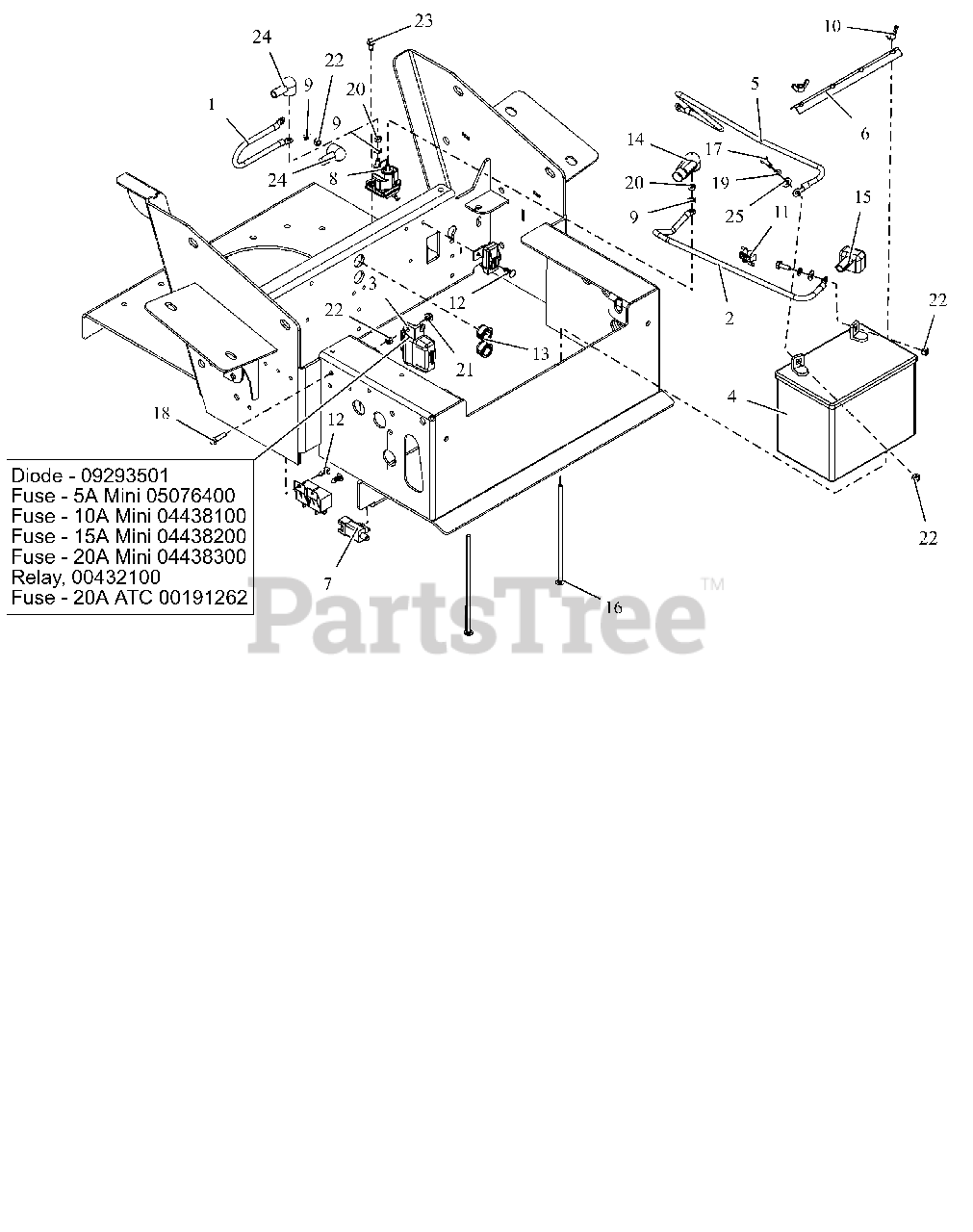

991215 (Pro-Turn 48) - Gravely Pro-Turn 48" Zero-Turn Mower, Kawasaki FS (SN: 010000 & Above) Electrical Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kawasaki FS

Electrical Parts Diagram

  • Title

1

Gravely 04783300

CABLE, POS W/(2)1/4 RING 9.0LG

$5.99

$

In Stock, only 1 left!

0

2

Gravely 04783400

CABLE,POS W/(2)1/4 RING 21.5LG

$

$

Not available

3

Gravely 05075500

HARNESS, PT WIRE

$168.99

$

Usually ships in 4-12 days

0

3

Gravely 09293501

DIODE, CONNECTOR SHELL

Note: SERVICE PART

$11.99

$

In Stock, only 3 left!

0

3

Gravely 05076400

FUSE, 5 AMP MINI-ATC

Note: SERVICE PART

$

$

Not available

3

Gravely 04438100

FUSE,10 AMP MINI-ATC

Note: SERVICE PART

$4.99

$

Usually ships in 4-12 days

0

3

Gravely 04438200

FUSE,15 AMP MINI-ATC

Note: SERVICE PART

$4.99

$

Usually ships in 4-12 days

0

3

Gravely 04438300

FUSE,20 AMP MINI ATC

Note: SERVICE PART

$

$

Not available

3

Gravely 00432100

RELAY,SEALED W/DIODE
(Superseded to 00432101)

Note: SERVICE PART

$22.99

$

In Stock, Qty 20+

0

3

Gravely 00191262

FUSE, 20 AMP BLADE S/O

Note: SERVICE PART

$14.99

$

In Stock, only 1 left!

0

4

Gravely 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

5

Gravely 03288100

CABLE-NEGATIVE BATTERY 24.00"

$17.99

$

In Stock, only 2 left!

0

6

Gravely 03494051

HOLD DOWN

$11.99

$

In Stock, only 2 left!

0

7

Gravely 03834300

SWITCH, SNAP IN - N.O./N.O.

$14.99

$

In Stock, only 1 left!

0

8

Gravely 05167200

SOLENOID, STARTER (SEALED)

$45.99

$

In Stock, Qty 17

0

9

Gravely 06306800

@WSHR-LK-EXT.262X.502X.026YWZC
(Superseded to 06300118)

$0.99

$

Usually ships in 4-12 days

0

10

Gravely 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$4.99

$

In Stock, Qty 19

0

11

Gravely 07001622

CLIP,T,.31-.38,

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 07500125

RIVET, .25 NYLON PANEL

$1.49

$

In Stock, Qty 16

0

13

Gravely 07500126

BUSH, PANEL SNAP .687X.875X.56

$3.99

$

In Stock, only 2 left!

0

14

Gravely 07500401

BOOT, .65ID POS

$3.49

$

Usually ships in 4-12 days

0

15

Gravely 07505700

INSULATOR

$9.49

$

Usually ships in 4-12 days

0

16

Gravely 06226400

BLT-RDHDSQNK .25-20X7.50 GR2YZ
(Superseded to 06200424)

$4.99

$

In Stock, Qty 20+

0

17

Gravely 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 05947700

@BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

19

Gravely 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06539800

NUT-HEX M6X1.0 YWZC
(Superseded to 06500925)

$

$

Not available

21

Gravely 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

22

Gravely 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

23

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 07533200

BOOT, EYELET TERMINAL

$3.49

$

In Stock, only 3 left!

0

25

Gravely 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0
