991215 (Pro-Turn 48) - Gravely Pro-Turn 48" Zero-Turn Mower, Kawasaki FS (SN: 010000 & Above) Deck, Belts, Baffle, Blades and Spindles - 48" Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kawasaki FS

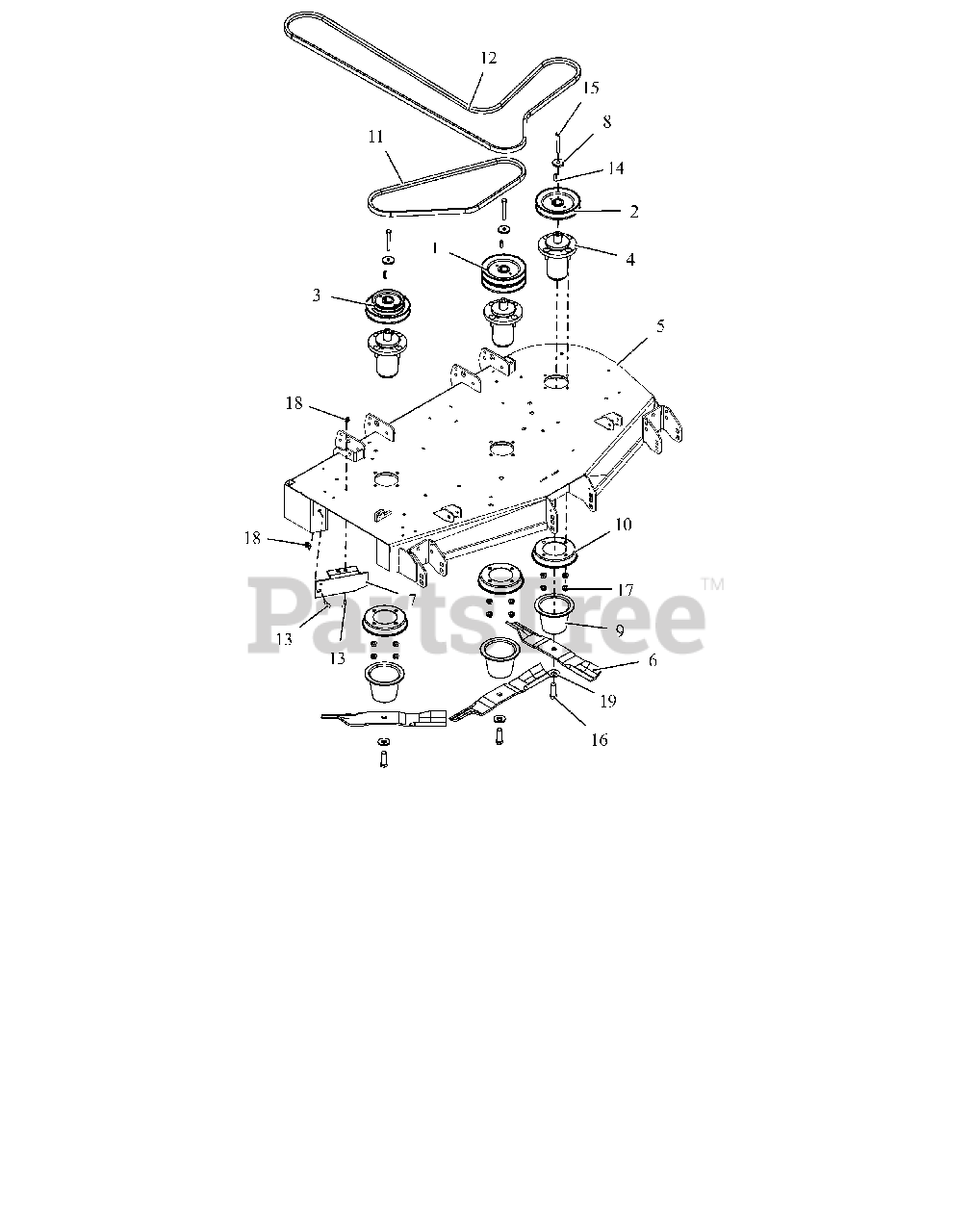

Deck, Belts, Baffle, Blades and Spindles - 48" Parts Diagram

  • Title

1

Gravely 07329267

PULLEY, DOUBLE-1"ID X 5.75"OD
(Superseded to 07329200)

$80.99

$

In Stock, only 1 left!

0

2

Gravely 07329367

PULLEY, V-1" ID X 5.75" OD
(Superseded to 07329300)

$68.99

$

In Stock, Qty 18

0

3

Gravely 07340200

PULLEY, DBL-1"IDX5.75"&4.25"OD

$62.99

$

In Stock, only 1 left!

0

4

Gravely 58810800

ASM, MAINT FREE ALUM SPINDLE

$239.99

$

In Stock, Qty 20+

0

5

Gravely 59109200

DECK, PT48 W/SAFETY DECALS

$846.99

$

Usually ships in 4-12 days

0

6

Gravely 00450200

BLADE, 16.19" MOWER (HI-LIFT)

$29.99

$

In Stock, Qty 20+

0

7

Gravely 00451653

44"-48" SIDE DISCH BAFFLE -RED

$41.99

$

Usually ships in 4-12 days

0

8

Gravely 04530500

RETAINER, SHEAVE

$7.99

$

In Stock, Qty 20+

0

9

Gravely 05011500

GUARD, SPINDLE LOWER

$

$

Not available

10

Gravely 05017000

GUARD, SPINDLE TOP

$

$

Not available

11

Gravely 07200035

V-BELT, B-COGGED

$54.99

$

In Stock, only 4 left!

0

12

Gravely 07200809

V-BELT, B RAW EDGE EPDM

$108.99

$

In Stock, only 1 left!

0

13

Gravely 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 16

0

15

Gravely 05901813

BLT, HEX .38-16X2.75 G8 ZCC

$1.49

$

In Stock, Qty 20+

0

16

Gravely 05901822

BLT, HEX .62-18X1.75 G8 ZCC

$3.49

$

In Stock, Qty 20+

0

17

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, Qty 6

0
