991213 (Pro-Turn 60) - Gravely Pro-Turn 60" Zero-Turn Mower (SN: 050000 & Above) Engine - Kohler ZT740 Parts Diagram

Pro-Turn 60" Zero-Turn Mower

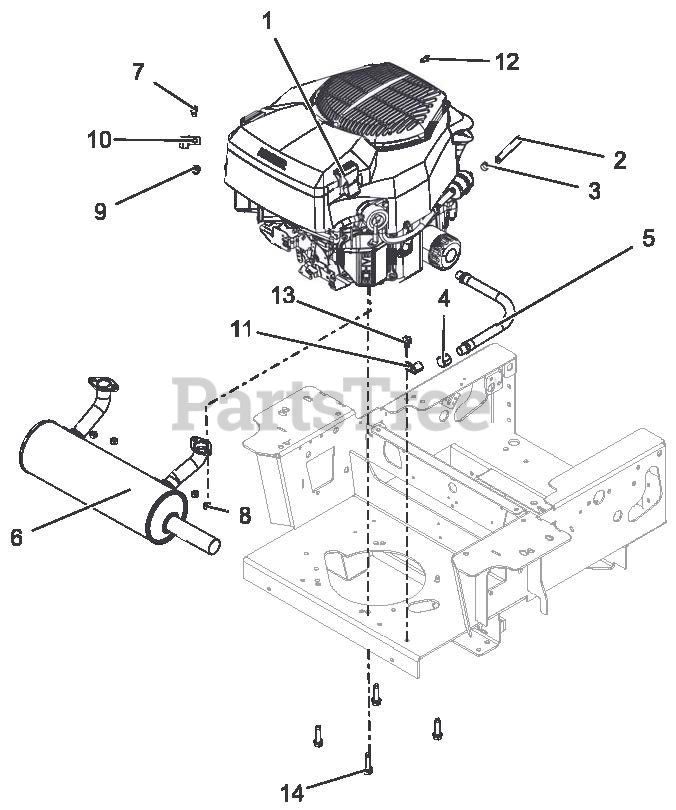

Engine - Kohler ZT740 Parts Diagram

  • Title

1

Gravely 08201123

ENGINE, KOHLER ZT740

$

$

Not available

2

Gravely 03278100

.25 LOW-PERM GAS HOSE 27.50" LG - TANK TO ENGINE

$1.49

$

In Stock, Qty 20+

0

3

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

4

Gravely 03873200

PIPE, CAP 3/8 NPT FEMALE

$12.99

$

Usually ships in 4-12 days

0

5

Gravely 04058500

HOSE, HYD .38-11-OK M6N0-M6N0
(Superseded to 05155100)

$20.99

$

In Stock, only 1 left!

0

6

Gravely 04786100

MUFFLER, KOHLER CONFIDANT

$169.99

$

Usually ships in 4-12 days

0

7

Gravely 05947000

BLT-HEX .31-18 X .75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0

9

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06909400

CLAMP, J

$3.49

$

In Stock, Qty 7

0

11

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

12

Gravely 07400103

SCR-TAP .25-20 X .62 HWH TR YWZ
(Superseded to 07400135)

$2.49

$

In Stock, Qty 6

0

13

Gravely 07412900

SCR-TAP .38-16 X .50 HWH TR TWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 07417400

SCR-TAP .38-16 X 1.50 HWH TR YZ
(Superseded to 07400203)

$3.99

$

Usually ships in 4-12 days

0
