991212 (Pro-Turn 52) - Gravely Pro-Turn 52" Zero-Turn Mower (SN: 050000 & Above) Decks, Belts, Baffles, Blades And Spindles - 52 Inch Deck Parts Diagram

Pro-Turn 52" Zero-Turn Mower

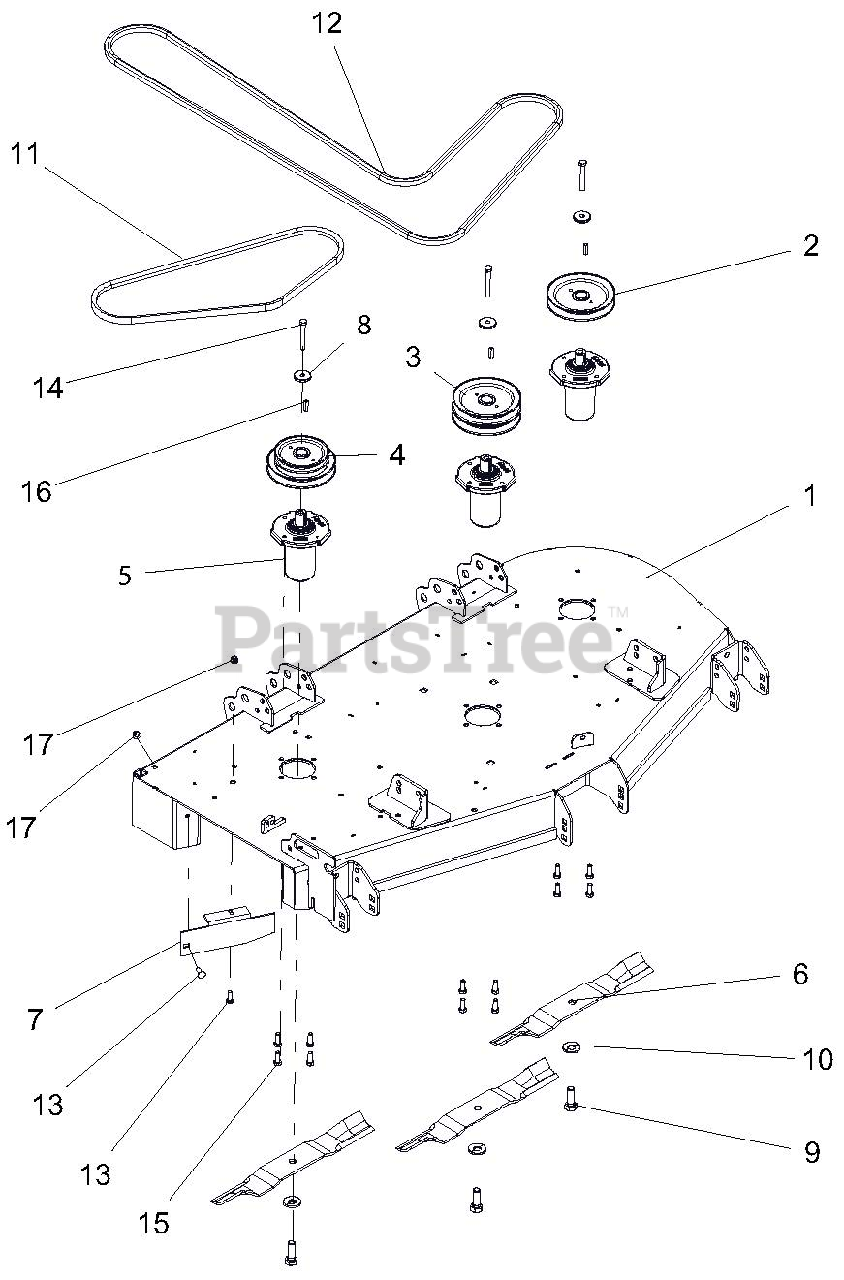

Decks, Belts, Baffles, Blades And Spindles - 52 Inch Deck Parts Diagram

  • Title

1

Gravely 59102400

KIT, 52" MOWER DECK W/SAFETY DECALS-RED

$1293.99

$

Usually ships in 4-12 days

0

2

Gravely 07332167

PULLEY, SINGLE -1" ID X 6.00" OD-BLACK
(Superseded to 59211700)

$82.99

$

In Stock, only 1 left!

0

3

Gravely 07332367

PULLEY, DOUBLE -1" ID X 6.00" OD-BLACK
(Superseded to 07332300)

$77.99

$

In Stock, Qty 16

0

4

Gravely 07340300

PULLEY, DOUBLE -1" ID X 6.00" & 4.75" OD

$69.99

$

In Stock, only 1 left!

0

5

Gravely 59215400

SERVICE, ASM SPINDLE- DUCTILE
(Superseded to 59225700)

$239.99

$

In Stock, Qty 20+

0

6

Gravely 03253800

BLADE, 18"

$28.99

$

In Stock, Qty 20+

0

7

Gravely 04389453

BAFFLE, DISCHARGE, 52"-RED

$27.99

$

Usually ships in 4-12 days

0

8

Gravely 04530500

RETAINER, SHEAVE SPINDLE

$7.99

$

In Stock, Qty 20+

0

9

Gravely 05978900

BLT, HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

10

Gravely 06445700

WSHR, BLVL .63X1.625X.14

$4.99

$

In Stock, only 3 left!

0

11

Gravely 07200036

BELT, B 56.00 RAW COGGED

$62.99

$

In Stock, Qty 14

0

12

Gravely 07200509

BELT, BB 118.00 WRAPPED HEX

$133.99

$

Usually ships in 4-12 days

0

13

Gravely 06216100

BLT-RDHDSQSHNK .31-18X1.00 G5 Y
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 05900013

BLT-HEX .38-16X1.00 GR5 YWZC EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06611200

KEY-SQ .250X.250X1.00 RC 40-50

$2.99

$

In Stock, Qty 15

0

17

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0
