991211 (Pro-Turn 60) - Gravely Pro-Turn 60" Zero-Turn Mower (SN: 050000 & Above) Engine - Kawasaki FX730 Parts Diagram

Pro-Turn 60" Zero-Turn Mower

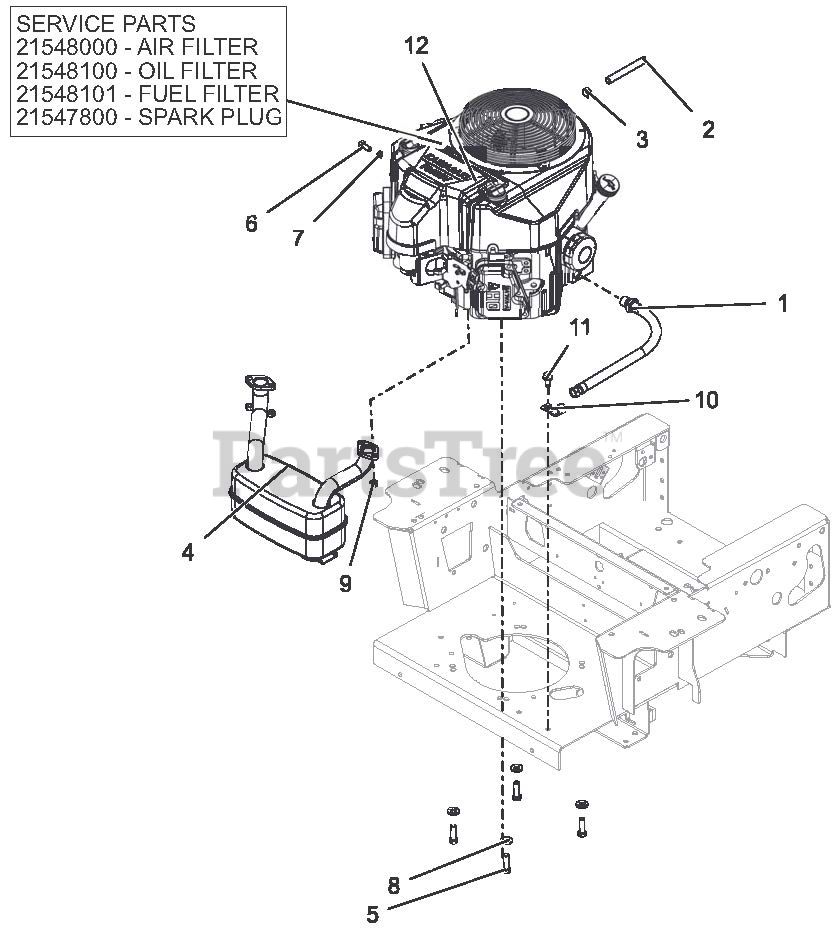

Engine - Kawasaki FX730 Parts Diagram

  • Title

1

Gravely 07001731

HOSE, OIL DRAIN

$25.99

$

Usually ships in 4-12 days

0

2

Gravely 03278100

.25 LOW-PERM GAS HOSE 18.50" LG - TANK TO ENGINE

$1.49

$

In Stock, Qty 20+

0

3

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

4

Gravely 04411300

MUFFLER, KAWASAKI
(Superseded to 05088300)

$102.99

$

Usually ships in 4-12 days

0

5

Gravely 05901522

BLT-HEX .38-16 X 1.25 GR5 YWZC NYTORQ
(Superseded to 05901808)

$1.99

$

In Stock, Qty 11

0

6

Gravely 05973300

@BLT-HEX M8-1.25 X 20 YWZC
(Superseded to 05901628)

$

$

Not available

7

Gravely 06308600

WSHR-LK .31 X .078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06400927

WSHR, 3/8" SPRING DISC

$3.49

$

In Stock, only 2 left!

0

9

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0

10

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 07415400

SCR-TAP .38-16 X .75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 08200823

ENGINE, KAWASAKI FS730

$

$

Not available

12

Gravely 21548000

AIR FILTER

$17.99

$

In Stock, Qty 20+

0

12

Gravely 21548100

OIL FILTER
(Superseded to 49065-0721)

$18.99

$

In Stock, Qty 20+

0

12

Gravely 21548101

FUEL FILTER
(Superseded to 21573800)

$

$

Not available

12

Gravely 21547800

SPARK PLUG
(Superseded to 21536100)

$3.99

$

In Stock, Qty 20+

0
